Engine Mount LH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Using a holding device, hold the steering wheel.
    GFD511791Courtesy of FORD MOTOR COMPANY
  3. Remove the bolts and the suspension support bar.
    GFD511792Courtesy of FORD MOTOR COMPANY
  4. Remove the following items:

    1. Remove the throttle body. Refer to: Throttle Body .
    2. Remove the air cleaner. Refer to: Air Cleaner .
    3. Remove the cowl panel. Refer to: Cowl Panel .

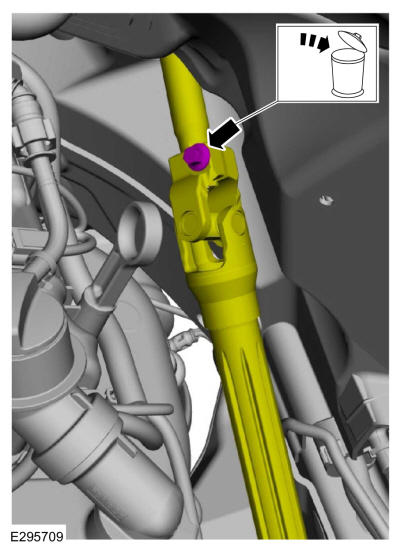

    • Remove the bolt and disconnect the steering shaft.

    • Discard the bolt.

    GFD511793Courtesy of FORD MOTOR COMPANY
  6. Remove the retainers and the upper radiator panel.
    GFD511794Courtesy of FORD MOTOR COMPANY
  7. Using cable ties or mechanics wire through the upper location holes, to support the cooling module. Use the General Equipment: Cable Ties
    GFD511795Courtesy of FORD MOTOR COMPANY
  8. Remove the engine front cover bolt and install the special tool in the top hole of the engine front cover. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD511796Courtesy of FORD MOTOR COMPANY
  9. NOTE: Make sure to use the round feet on the shock towers or damage may occur.

    Install Special Service Tool: 303-F072 Support Bar, Engine.

    GFD511797Courtesy of FORD MOTOR COMPANY
  10. Remove the LH and RH front wheels and tires. Refer to: Wheel and Tire .

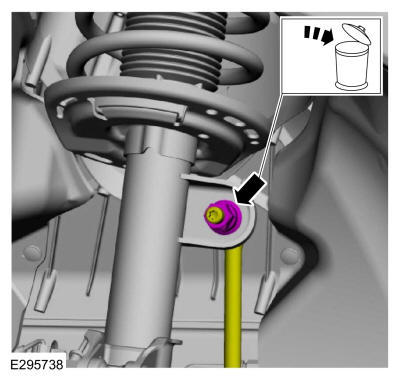

  11. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the LH sway bar link aside.

    GFD511798Courtesy of FORD MOTOR COMPANY

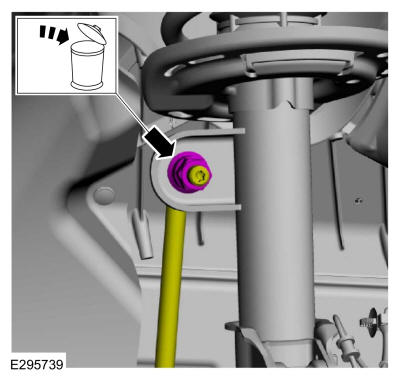

  12. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the RH sway bar link aside.

    GFD511799Courtesy of FORD MOTOR COMPANY
    • Remove pin-type retainer.

    • Remove the bolts and the underbody shield.

    GFD511800Courtesy of FORD MOTOR COMPANY
  14. Remove the pin-type retainer, bolts and the rear underbody shield.
    GFD511801Courtesy of FORD MOTOR COMPANY
  15. Remove the LH catalytic converter. Refer to: Catalytic Converter LH .
  16. Remove the steering shield pin-type retainers from the RH subframe.
    GFD511802Courtesy of FORD MOTOR COMPANY
  17. Remove the splash shield pin-type retainer from the RH subframe.
    GFD511803Courtesy of FORD MOTOR COMPANY
  18. Detach the HO2S wiring harness retainers from the RH subframe.
    GFD511804Courtesy of FORD MOTOR COMPANY
  19. Remove the steering shield pin-type retainers from the LH subframe.
    GFD511805Courtesy of FORD MOTOR COMPANY
  20. Remove the splash shield pin-type retainer from the LH subframe and position aside.
    GFD511806Courtesy of FORD MOTOR COMPANY
  21. Detach the HO2S wiring harness retainers from the LH subframe.
    GFD511807Courtesy of FORD MOTOR COMPANY
  22. Remove the front radiator support bar and panel bolts.
    GFD511808Courtesy of FORD MOTOR COMPANY

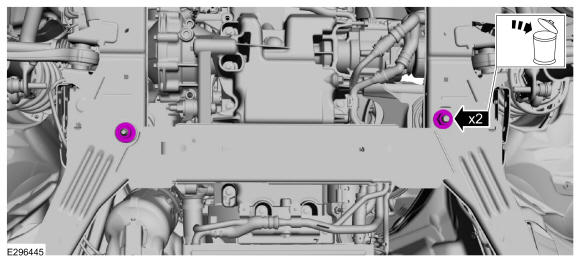

  23. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

    • Remove the LH and RH engine mount nuts.

    • Discard the engine mount nuts.

    GFD511809Courtesy of FORD MOTOR COMPANY
  24. Remove the bolt and position the RH underbody shield aside.
    GFD511810Courtesy of FORD MOTOR COMPANY
  25. Remove the bolt and position the LH underbody shield aside.
    GFD511811Courtesy of FORD MOTOR COMPANY

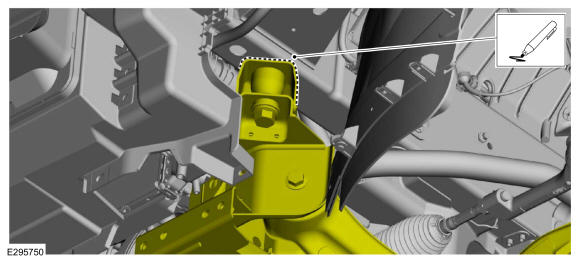

  26. Mark the front subframe location.
    GFD511812Courtesy of FORD MOTOR COMPANY

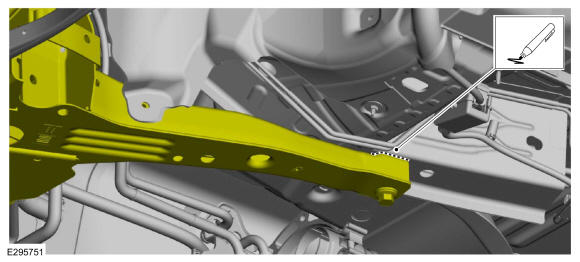

  27. Mark the rear subframe location.
    GFD511813Courtesy of FORD MOTOR COMPANY
  28. Support the front and rear of the subframe with adjustable jack stands.
    GFD511814Courtesy of FORD MOTOR COMPANY

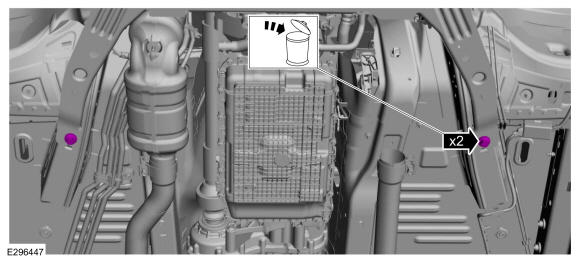

    • Remove the rear subframe bolts.

    • Discard the bolts.

    GFD511815Courtesy of FORD MOTOR COMPANY

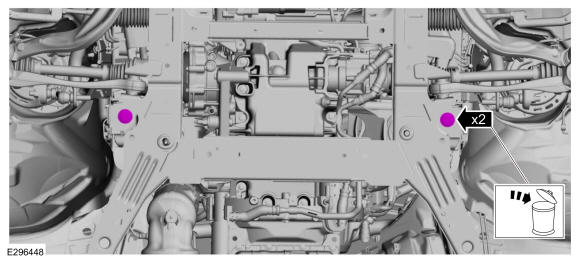

    • Remove the middle subframe bolts.

    • Discard the bolts.

    GFD511816Courtesy of FORD MOTOR COMPANY

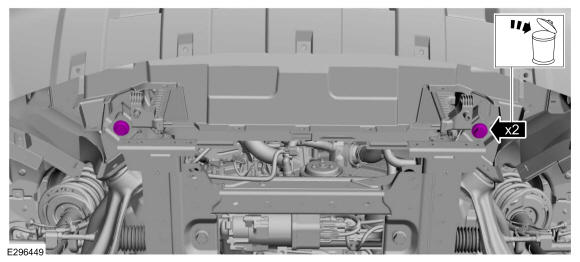

    • Remove the front subframe bolts.

    • Discard the bolts.

    GFD511817Courtesy of FORD MOTOR COMPANY

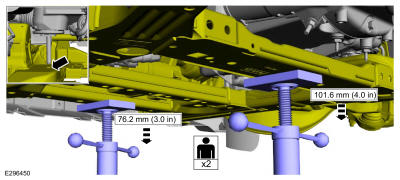

  32. With the aid of an assistant, lower the front jack stand 76.2 mm (3.0 in) and the rear jack stand 101.6 mm (4.0 in) evenly or until engine mount stud clears the subframe.
    GFD511818Courtesy of FORD MOTOR COMPANY

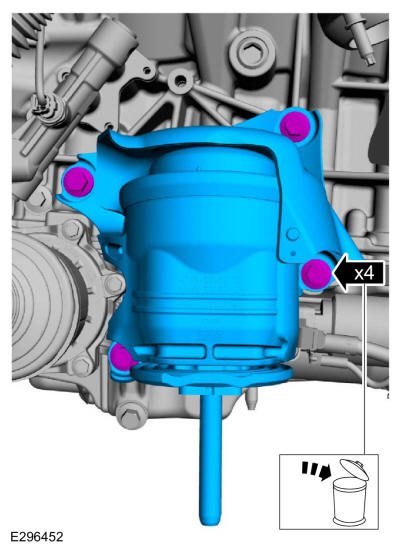

    • Remove the bolts and the LH engine mount.

    • Discard the bolts.

GFD511819Courtesy of FORD MOTOR COMPANY
