Engine Front Cover: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  3. Disconnect the battery ground. Refer to: Battery Disconnect and Connect . .
  4. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  5. Remove the following items:

    1. Remove the LH valve cover. Refer to: Valve Cover LH .
    2. Remove the RH valve cover. Refer to: Valve Cover RH .
    3. Remove the coolant pump. Refer to: Coolant Pump .
    4. Remove the crankshaft front seal. Refer to: Crankshaft Front Seal .

  6. Remove the retainer, bolts and the rear underbody shield.

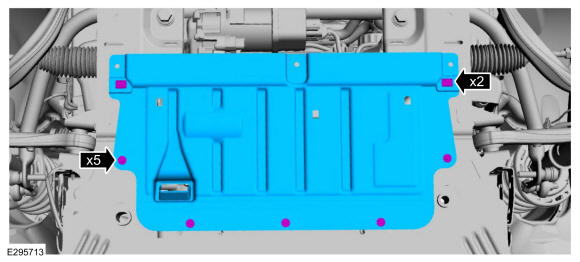

    GFD511761Courtesy of FORD MOTOR COMPANY
    • Remove the oil pan drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment

    • Install the oil drain plug.

      Torque: 19 lb.ft (26 Nm)

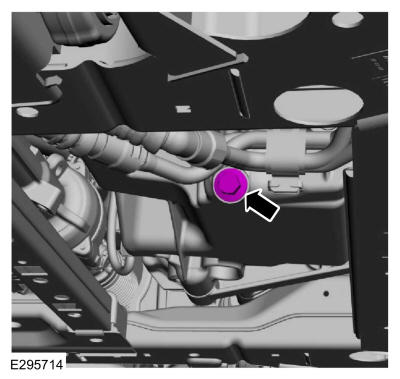

    GFD511762Courtesy of FORD MOTOR COMPANY

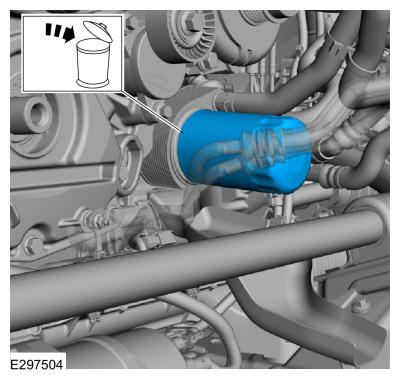

  8. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
    GFD511763Courtesy of FORD MOTOR COMPANY

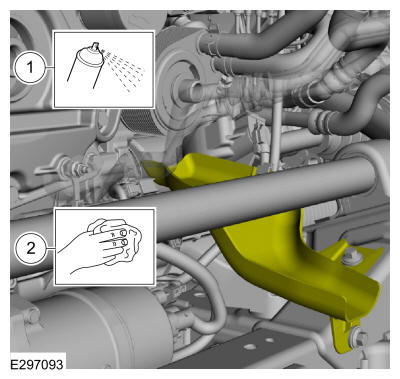

    1. Using brake cleaner, clean the drain trough. Use the General Equipment: Oil Drain Equipment

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. Wipe the drain trough clean.
    GFD511764Courtesy of FORD MOTOR COMPANY
  10. Remove the bolt for transmission cooling tubes from oil pan.

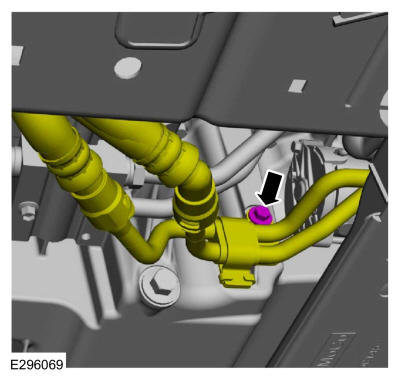

    GFD511765Courtesy of FORD MOTOR COMPANY
  11. NOTE: Be prepared to collect escaping fluid.

    Disconnect the transmission cooling tubes. Use the General Equipment: Oil Drain Equipment

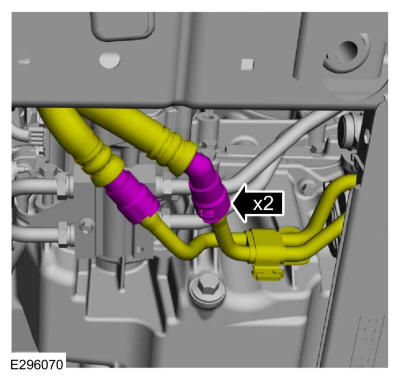

    GFD511766Courtesy of FORD MOTOR COMPANY
  12. NOTE: Be prepared to collect escaping fluid.

    Remove the transmission cooling tubes from the cooler bypass valve.

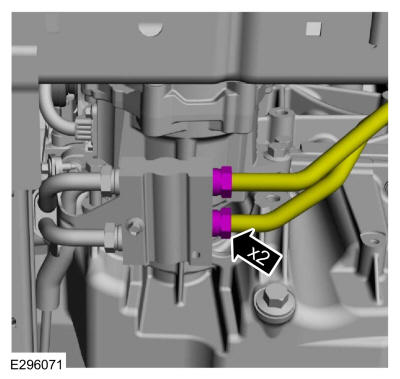

    GFD511767Courtesy of FORD MOTOR COMPANY

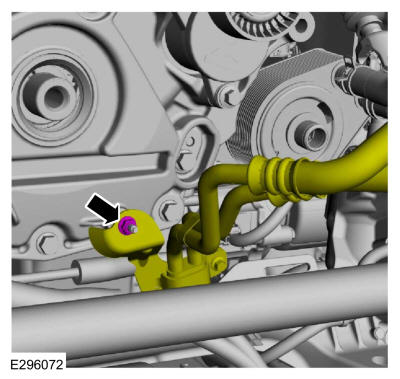

  13. Remove the nut and position the transmission cooling tubes and bracket aside.
    GFD511768Courtesy of FORD MOTOR COMPANY

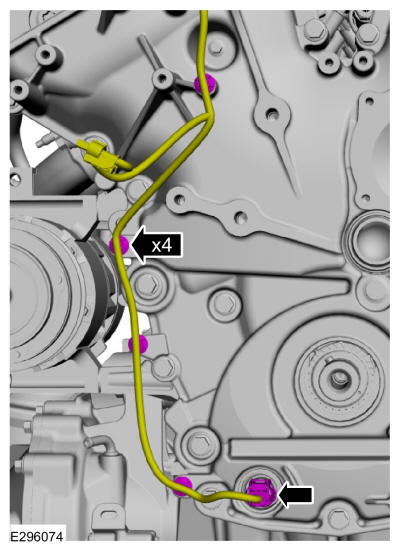

    • Detach the wiring harness retainers from the engine front cover.

    • Disconnect the oil pressure control solenoid wiring harness electrical connector.

    GFD511769Courtesy of FORD MOTOR COMPANY

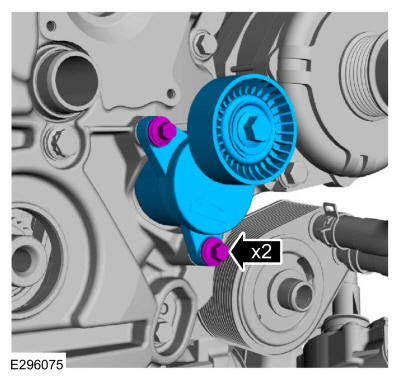

  15. Remove the bolts and the accessory drive belt tensioner.
    GFD511770Courtesy of FORD MOTOR COMPANY

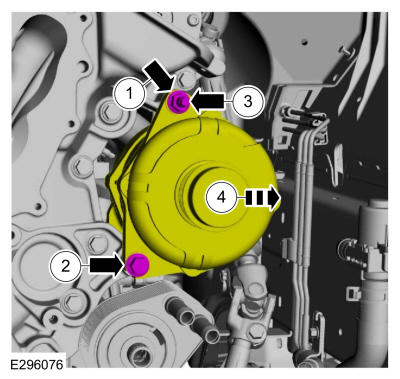

    1. Remove the nut.
    2. Remove the bolt.
    3. Remove the stud bolt.
    4. Position the generator aside.
    GFD511771Courtesy of FORD MOTOR COMPANY

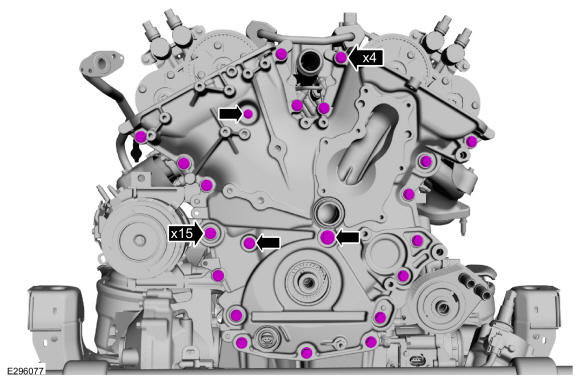

  17. Remove the engine front cover bolts.
    GFD511772Courtesy of FORD MOTOR COMPANY
  18. Using a pry tool, locate the pry pads shown and pry the engine front cover loose and remove.

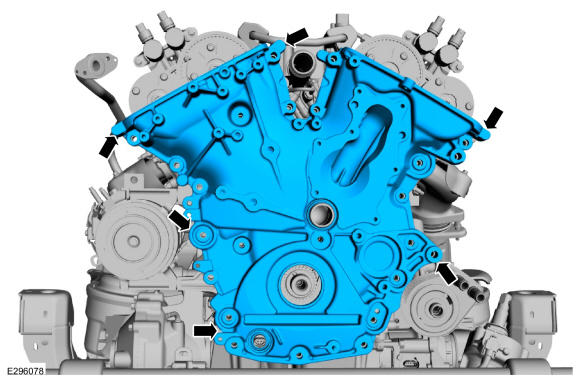

    GFD511773Courtesy of FORD MOTOR COMPANY
  19. Using the special tools, remove and discard the engine front cover to coolant pipe seal. Use Special Service Tool: 205-150 (T80T-4000-S) Installer, Spindle Bearing, 205-153 (T80T-4000-W) Handle.

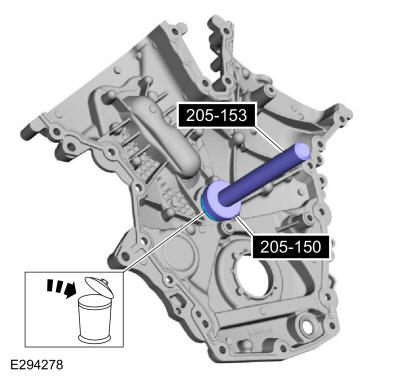

    GFD511774Courtesy of FORD MOTOR COMPANY
  20. NOTE: Do not install the oil pump electrical connector seal until the front cover is installed on the engine or damage to the seal may occur.

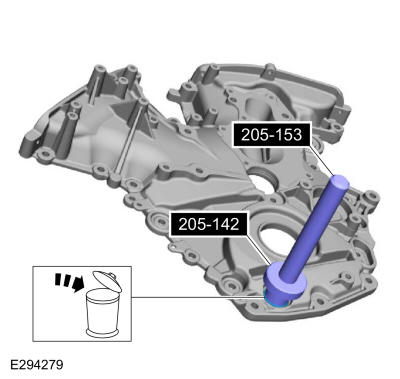

    Using the special tools, remove and discard the oil pump electrical connector seal. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

    GFD511775Courtesy of FORD MOTOR COMPANY
  21. NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean front cover.

    • Clean the engine front cover using a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm.

    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process. Refer to: RTV Sealing Surface Cleaning and Preparation .

      Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    GFD511776Courtesy of FORD MOTOR COMPANY

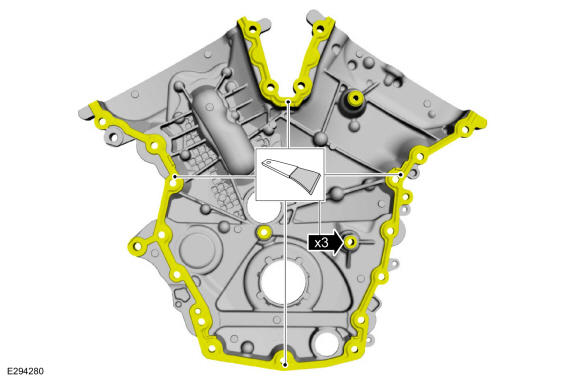

  22. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
    NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of the gasket.

    Make sure that the mating faces of the engine block and oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

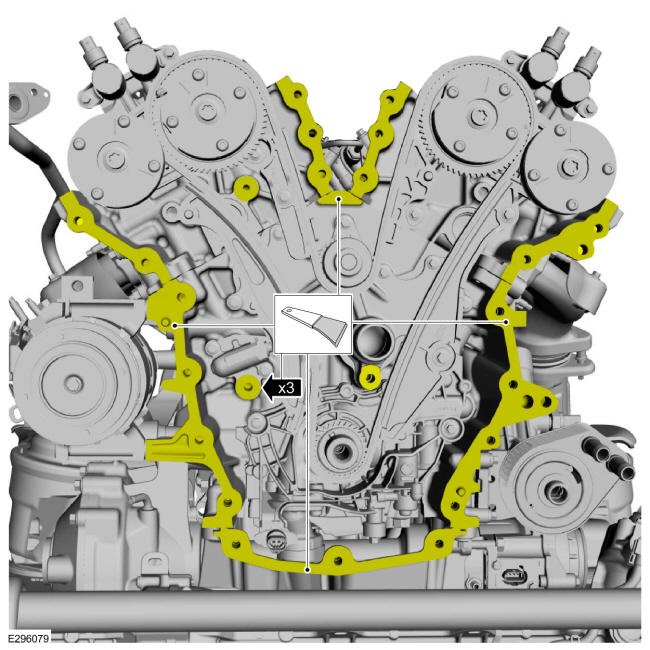

GFD511777Courtesy of FORD MOTOR COMPANY
