Crankshaft Pulley: Installation

WARNING: This page is about a different variant/trim than selected.

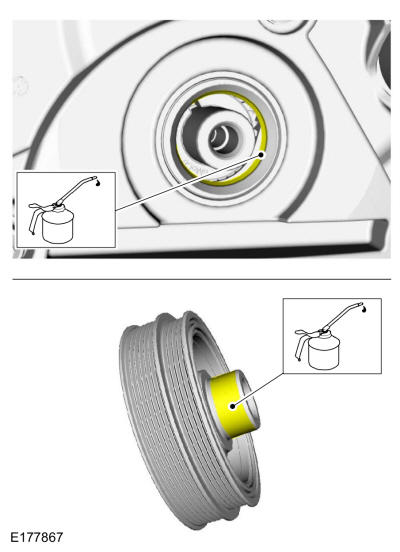

Lubricate the crankshaft front seal and the crankshaft pulley with clean engine oil.

Courtesy of FORD MOTOR COMPANY

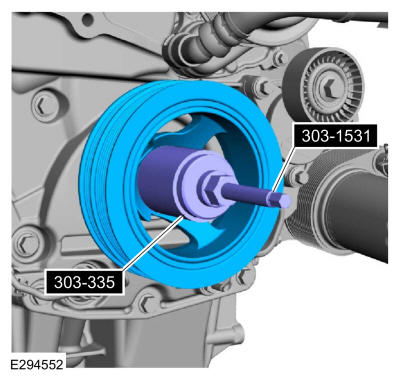

Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-1531 Installer, Front Crank Seal and Damper, 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal.

Courtesy of FORD MOTOR COMPANY
NOTE: Use a universal pulley holder (such as an OTC 4754, or equivalent).

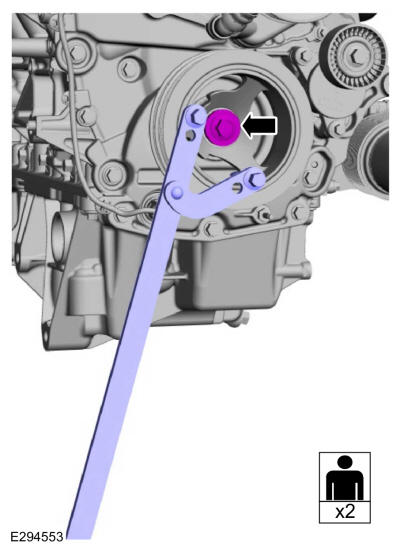

Using a universal pulley holder, install and tighten a new crankshaft pulley bolt and the washer and tighten in 3 stages.

Torque: Stage 1: 37 lb.ft (50 Nm) - Stage 2: 90° - Stage 3: 60°

Courtesy of FORD MOTOR COMPANY
Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .

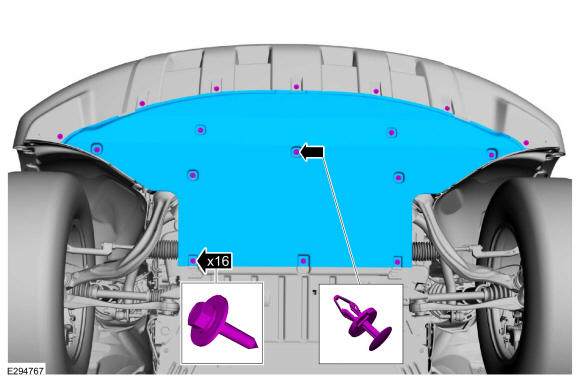

- Install the underbody shield and the bolts.
  Torque: 22 lb.in (2.5 Nm)
- Install pin-type retainer.
Courtesy of FORD MOTOR COMPANY

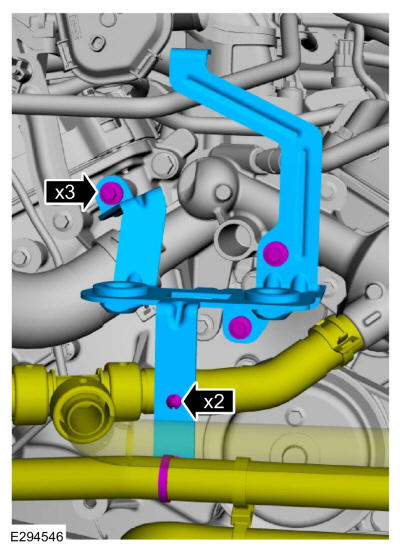

- Install the air cleaner bracket and the bolts.
  Torque: 97 lb.in (11 Nm)
- Attach the coolant hose retainers.
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the degas bottle. Refer to: Degas Bottle .
2. Install the air cleaner. Refer to: Air Cleaner .
3. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

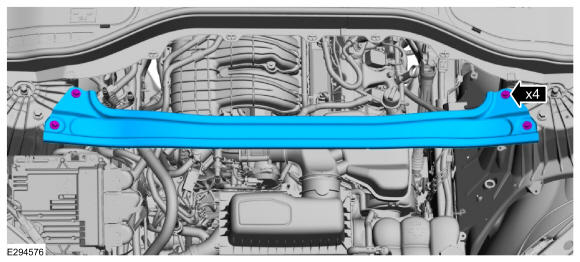

Install the suspension support bar and the bolts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
