Crankshaft Front Seal: Installation

WARNING: This page is about a different variant/trim than selected.

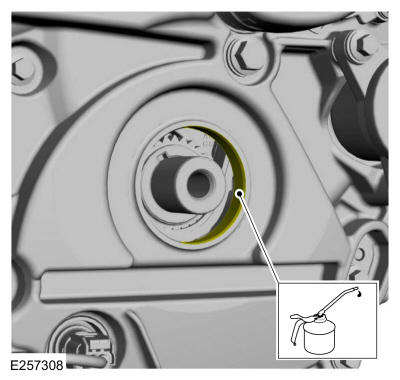

  1. Lubricate the crankshaft front seal bore with clean engine oil.
    GFD511696Courtesy of FORD MOTOR COMPANY

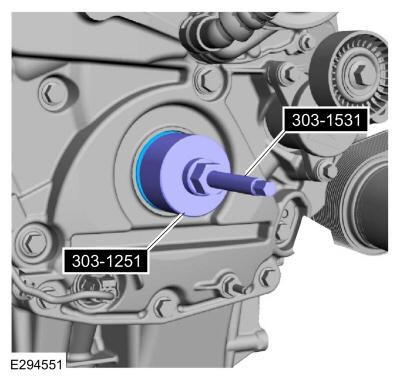

  2. Using the special tools, install the crankshaft front seal. Use Special Service Tool: 303-1531 Installer, Front Crank Seal and Damper, 303-1251 Installer, Front Seal.
    GFD511697Courtesy of FORD MOTOR COMPANY
  3. Install the crankshaft pulley. Refer to: Crankshaft Pulley .
