Removal And Installation: Camshafts: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

All camshafts

  1. Remove the LH or RH VCT unit. Refer to: Variable Camshaft Timing (VCT) Unit .

    LH camshafts

  2. NOTE: The VCT oil control solenoids are removed for clarity.

    Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    GFD511668Courtesy of FORD MOTOR COMPANY
  3. Remove Special Service Tool: 303-1248 Camshaft holding tools.
    GFD511669Courtesy of FORD MOTOR COMPANY
  4. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
    NOTE: Mark the exhaust and intake camshafts for installation into their original locations.

    Remove the bolts, camshaft caps and the camshafts.

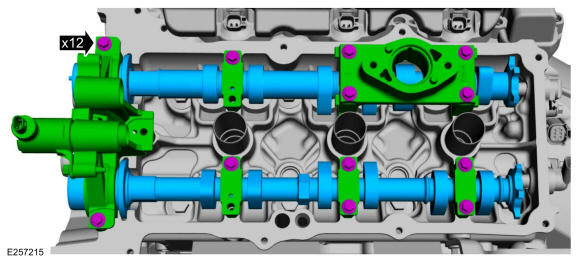

    GFD511670Courtesy of FORD MOTOR COMPANY

    RH camshafts

  5. NOTE: The VCT oil control solenoids are removed for clarity.

    Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    GFD511671Courtesy of FORD MOTOR COMPANY
  6. Remove Special Service Tool: 303-1248 Camshaft holding tools.
    GFD511672Courtesy of FORD MOTOR COMPANY
  7. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
    NOTE: Mark the exhaust and intake camshafts for installation into their original locations.

    Remove the bolts, camshaft caps and the camshafts.

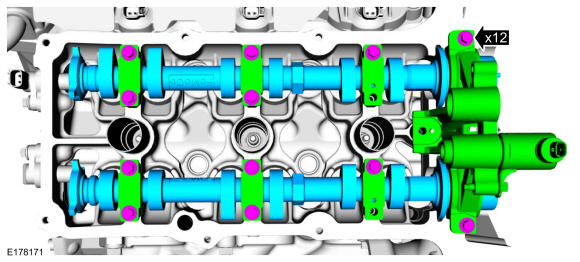

GFD511673Courtesy of FORD MOTOR COMPANY
