Section 18 (Engine - 3.3L DURATEC-V6)
>>
Description And Operation
>>
Engine - Overview
>>

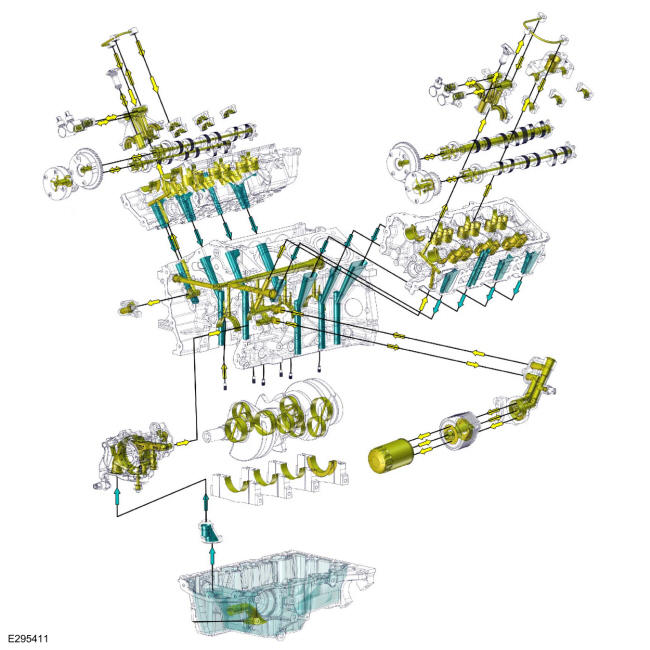

Oil Flow Diagram
Oil Flow Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
Item
Description
Yellow
High pressure oil flow
Blue
Oil return/low pressure oil flow
