Valve Cover RH: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: Removal steps in this procedure may contain installation details.
  1. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  3. Remove the following items:

    1. Cowl panel. Refer to: Cowl Panel .
    2. Air cleaner. Refer to: Air cleaner .
    3. RH and LH charge air cooler intake pipes. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    4. High-Pressure Fuel Pump. Refer to: High-Pressure Fuel Pump .
    5. RH coil-on-plugs. Refer to: Ignition Coil-On-Plug .

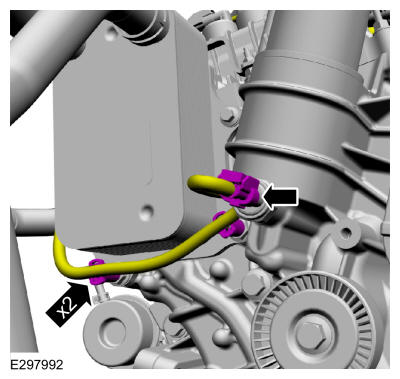

    • Disconnect the oil pressure sensor electrical connector.

    • Detach the wiring harness retainers.

    GFD511389Courtesy of FORD MOTOR COMPANY
    • Disconnect the center PCM electrical connector and wiring harness retainer.

    • Disconnect the engine harness electrical connector, retainer and position the engine wiring harness on the engine.

    GFD511390Courtesy of FORD MOTOR COMPANY

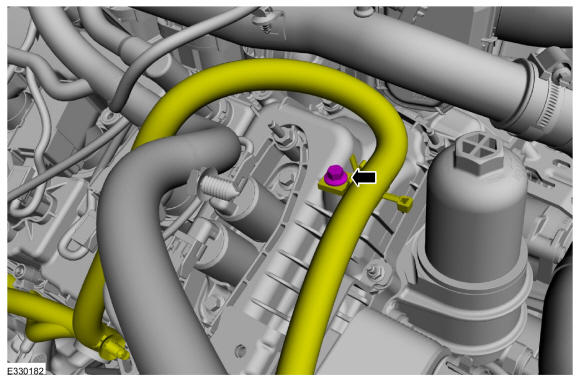

  6. Remove the wiring harness bracket bolt.

    Torque: 97 lb.in (11 Nm)

    GFD511391Courtesy of FORD MOTOR COMPANY

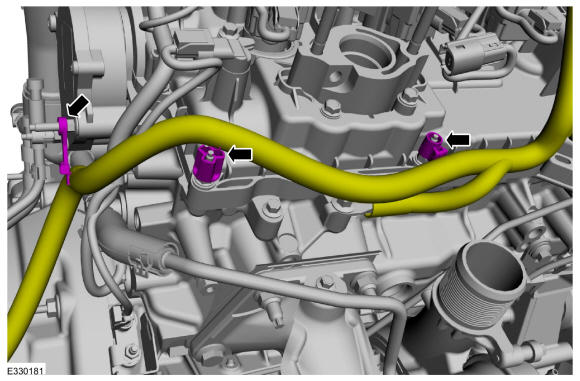

  7. Detach the wiring harness retainers.
    GFD511392Courtesy of FORD MOTOR COMPANY

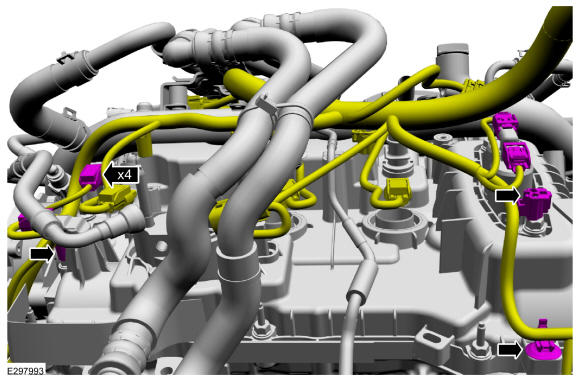

    • Disconnect the wiring harness electrical connectors.

    • Detach the wiring harness retainers and position the wiring harness aside.

    GFD511393Courtesy of FORD MOTOR COMPANY

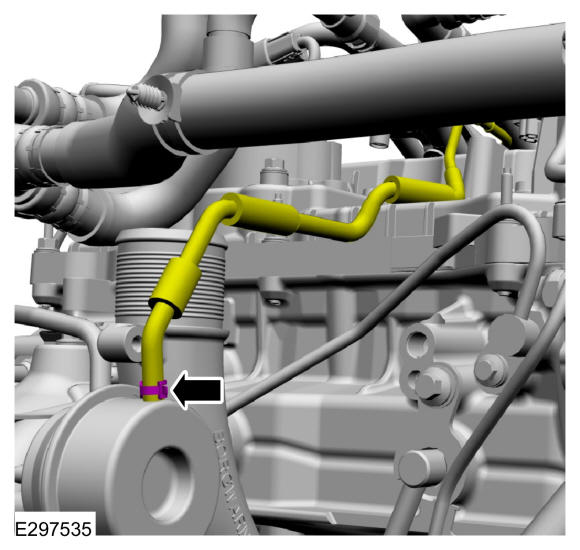

  9. Release the clamp and disconnect the vacuum hose.
    GFD511394Courtesy of FORD MOTOR COMPANY

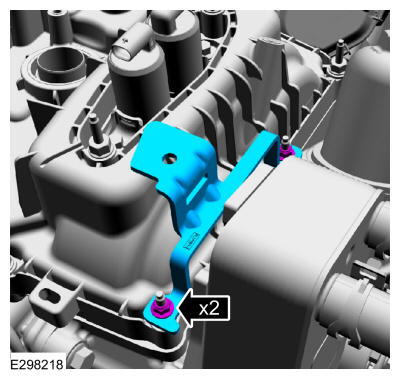

  10. Remove the nuts and the bracket.

    Torque: 53 lb.in (6 Nm)

    GFD511395Courtesy of FORD MOTOR COMPANY

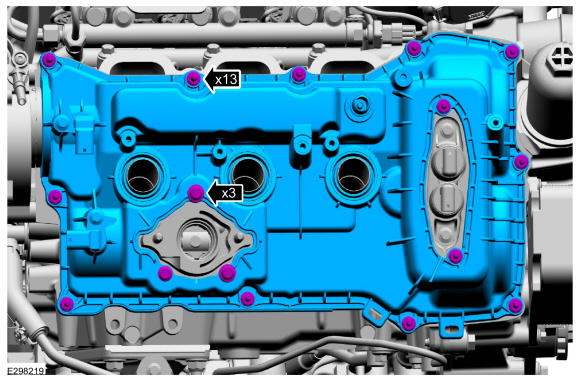

  11. Loosen the fasteners and remove the valve cover.
    GFD511396Courtesy of FORD MOTOR COMPANY
    1. Remove and discard the gasket.
    2. Clean the valve cover gasket groove with soap and water or a suitable solvent.
    GFD511397Courtesy of FORD MOTOR COMPANY
  13. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
    GFD511398Courtesy of FORD MOTOR COMPANY
  14. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old Sealant.

    Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Surface Prep wipes / ZC-31-B

    Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

GFD511399Courtesy of FORD MOTOR COMPANY
