Oil Pump Drive Belt: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

Remove the RH timing chain. Refer to: Timing Chain .
Remove the RH timing chain sprocket.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the oil pump return tube.

Courtesy of FORD MOTOR COMPANY
Remove and discard the O-ring seals.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the splash shield.

Courtesy of FORD MOTOR COMPANY

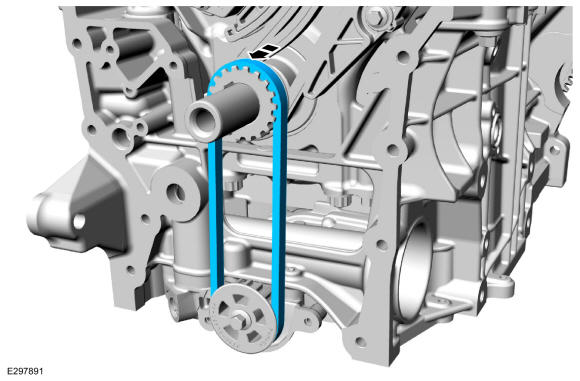

Slide the oil pump drive belt off of the crankshaft sprocket and remove the belt.

Courtesy of FORD MOTOR COMPANY
