Oil Pump Drive Belt: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Loosening the oil pump bolts will aid in the installation of the oil pump drive belt.

Loosen the oil pump bolts 5 turns.

Courtesy of FORD MOTOR COMPANY

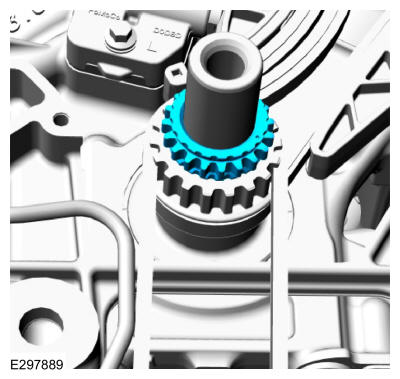

1. Position the oil pump drive belt onto the oil pump sprocket and raise the front of the oil pump.
2. Slide the oil pump drive belt onto the crankshaft sprocket.
Courtesy of FORD MOTOR COMPANY
Tighten the oil pump bolts.
Torque: Stage 1: 89 lb.in (10 Nm) - Stage 2: 45°

Courtesy of FORD MOTOR COMPANY
Install the splash shield and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install new O-ring seals.
2. Lubricate the O-ring seals with clean engine oil.
Courtesy of FORD MOTOR COMPANY
Install the oil pump return tube and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the RH timing chain sprocket.

Courtesy of FORD MOTOR COMPANY
Install the RH timing chain. Refer to: Timing Chain .
