Cylinder Head RH: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
NOTE: Special attention needs to be given to the sealing ports for the oil feed, the oil drain, and the coolant tubes, on turbocharged engines. The sealing ports must be totally clean and free from O-ring residue, have no damage to the sealing surface and the tubes to ensure that there are no leaks or repeat repairs.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  4. Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  5. Remove the following items:

    1. Front wheels and tires. Refer to: Wheel and Tire .
    2. LH side. Refer to: Halfshaft .
    3. LH and RH exhaust flexible pipes. Refer to: Exhaust Flexible Pipe .

  6. Remove the fasteners and the exhaust crossmember.
    GFD511129Courtesy of FORD MOTOR COMPANY

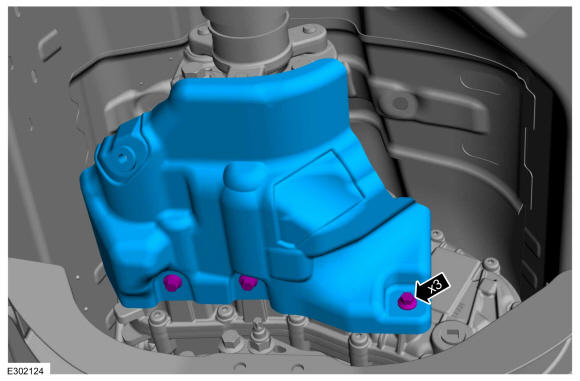

  7. Remove the bolts and the transfer case heat shield.
    GFD511130Courtesy of FORD MOTOR COMPANY
  8. NOTE: Take extra care not to damage the component.

    Position aside and support the rear driveshaft.

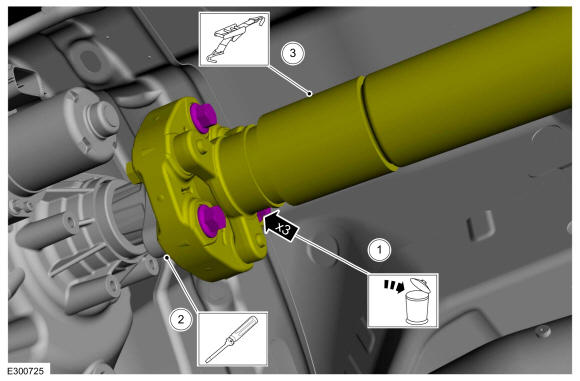

    1. Mark the driveshaft flex coupling to the transfer case flange.
    2. Remove and discard the driveshaft flex coupling to transfer case flange bolts.
    3. Separate the driveshaft flex coupling from the transfer case flange and support the driveshaft.

    GFD511131Courtesy of FORD MOTOR COMPANY

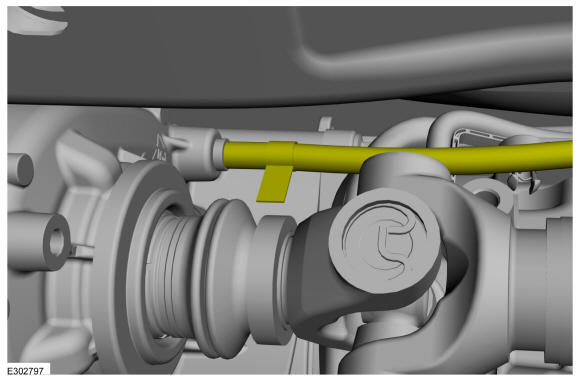

  9. Detach the transfer case vent hose and position aside.
    GFD511132Courtesy of FORD MOTOR COMPANY

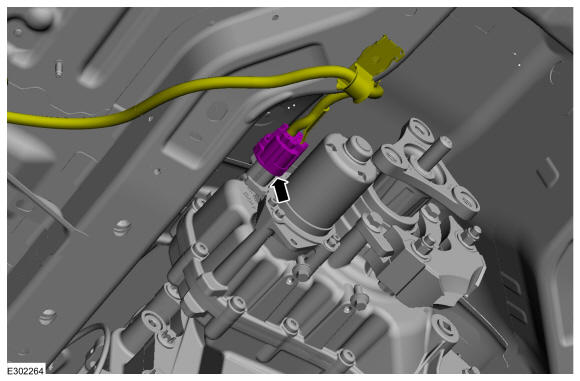

  10. Disconnect the transfer case motor assembly electrical connector and position the wiring harness aside.
    GFD511133Courtesy of FORD MOTOR COMPANY

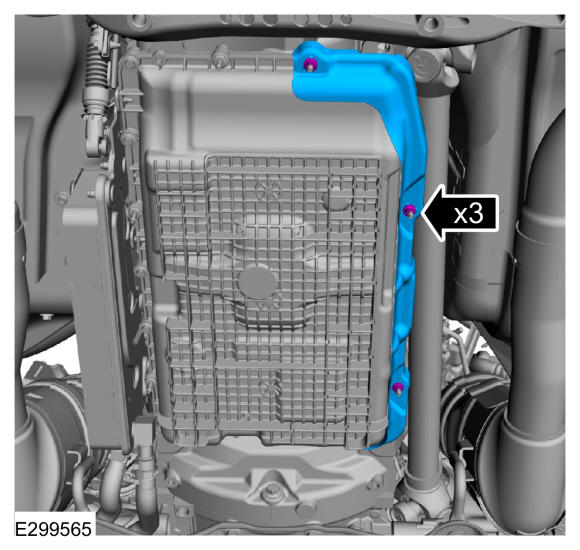

  11. Remove the retainers and the heat shield.
    GFD511134Courtesy of FORD MOTOR COMPANY

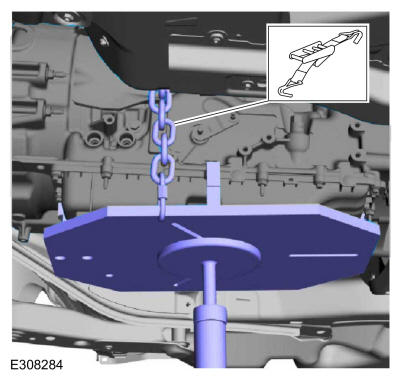

  12. NOTE: Secure the transmission to the transmission jack with a safety strap.
    NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

    Using a high-lift transmission jack, support the transmission. Use the General Equipment: Transmission Jack, Use the General Equipment: Retaining Strap

    GFD511135Courtesy of FORD MOTOR COMPANY
  13. Remove the transfer case mounting bolts and nut.

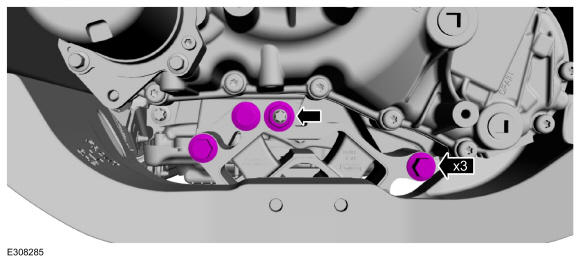

    GFD511136Courtesy of FORD MOTOR COMPANY

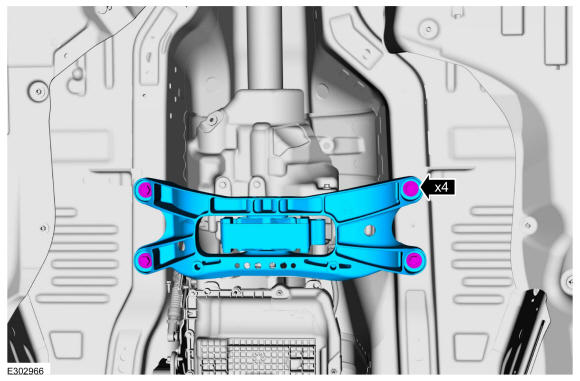

  14. Remove the bolts and the transmission support crossmember.
    GFD511137Courtesy of FORD MOTOR COMPANY
  15. Remove the transfer case to transmission bolts.
    GFD511138Courtesy of FORD MOTOR COMPANY
  16. Remove the transfer case to transmission bolts.

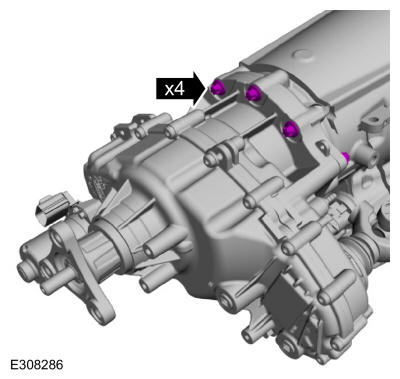

    GFD511139Courtesy of FORD MOTOR COMPANY

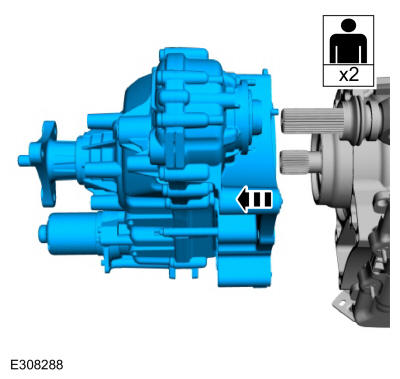

  17. NOTE: This step requires the aid of another technician.

    Remove the transfer case from the transmission.

    GFD511140Courtesy of FORD MOTOR COMPANY
  18. Lower the transmission jack 32 mm (1.25 in). Use the General Equipment: Transmission Jack, Use the General Equipment: Retaining Strap
    GFD511141Courtesy of FORD MOTOR COMPANY
    • Disconnect the HO2S electrical connector.

    • Detach the wiring harness retainers.

    GFD511142Courtesy of FORD MOTOR COMPANY

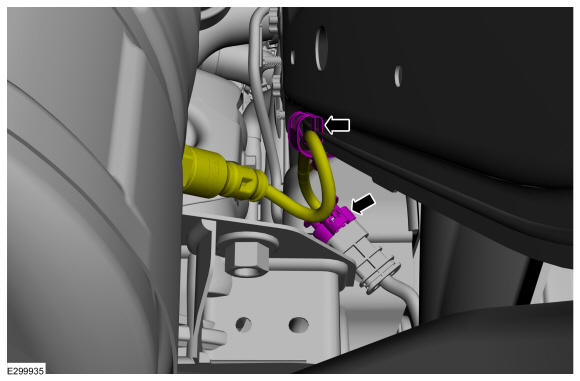

    • Disconnect the catalyst monitor sensor electrical connector.

    • Detach the wiring harness retainer.

    GFD511143Courtesy of FORD MOTOR COMPANY
  21. NOTE: Body of vehicle removed from graphic for clarity.

    • Remove the nuts and the RH catalytic converter.

    • Discard the nuts.

    GFD511144Courtesy of FORD MOTOR COMPANY
    • Remove and discard the gasket.

    • If damaged, remove and discard the studs.

    GFD511145Courtesy of FORD MOTOR COMPANY
  23. NOTE: Transmission removed from view for clarity.

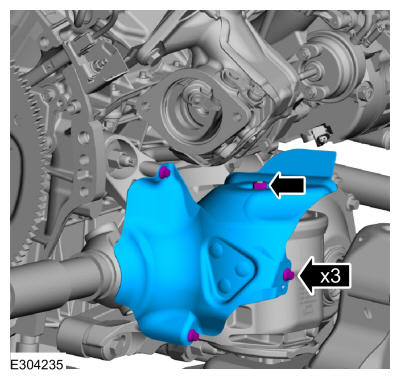

    Remove the fasteners and the heat shield.

    GFD511146Courtesy of FORD MOTOR COMPANY
  24. NOTE: Transmission removed from view for clarity.

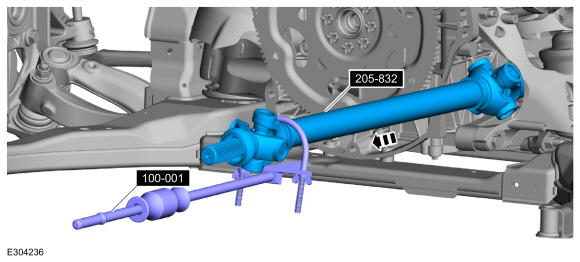

    Using the special tools, remove the front drive shaft. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer, 205-832 Remover, Halfshaft.

    GFD511147Courtesy of FORD MOTOR COMPANY
  25. Remove and discard the front axle pinion stem circlip.

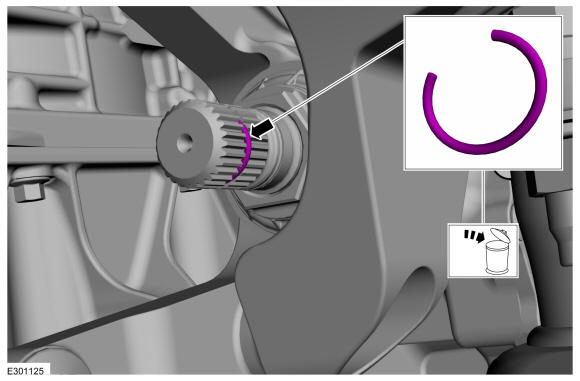

    GFD511148Courtesy of FORD MOTOR COMPANY

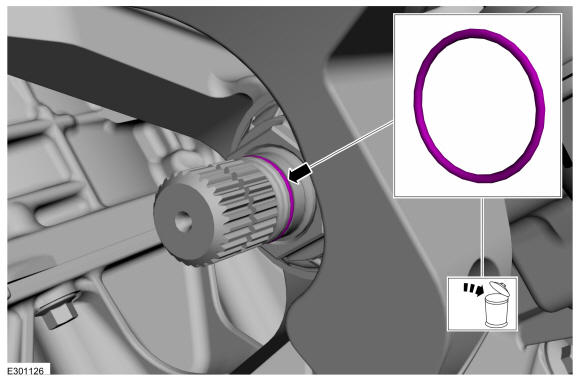

  26. Remove and discard the front axle pinion stem O-ring.
    GFD511149Courtesy of FORD MOTOR COMPANY

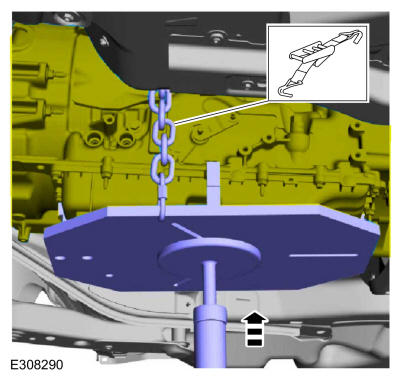

  27. Raise the transmission jack 32 mm (1.25 in). Use the General Equipment: Transmission Jack, Use the General Equipment: Retaining Strap
    GFD511150Courtesy of FORD MOTOR COMPANY
  28. NOTE: This step requires the aid of another technician.

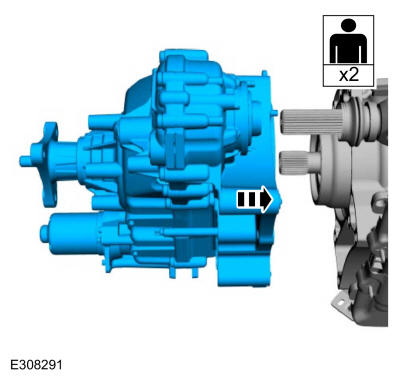

    Install the transfer case onto the transmission.

    GFD511151Courtesy of FORD MOTOR COMPANY
  29. Install the transfer case to transmission bolts.

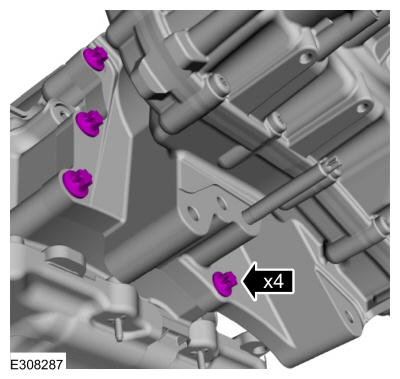

    GFD511139Courtesy of FORD MOTOR COMPANY
  30. Install the transfer case to transmission bolts.
    GFD511138Courtesy of FORD MOTOR COMPANY
  31. Install the transmission support crossmember and the bolts.
    GFD511137Courtesy of FORD MOTOR COMPANY
  32. Install the transfer case mounting bolts and nut.
    GFD511136Courtesy of FORD MOTOR COMPANY
  33. Remove the high-lift transmission jack Use the General Equipment: Transmission Jack, Use the General Equipment: Retaining Strap
    GFD511135Courtesy of FORD MOTOR COMPANY
  34. Remove the following items:

    1. Refer to: Oil Pan .
    2. Refer to: Degas Bottle .
    3. Refer to: Valve Cover RH .
    4. Refer to: Valve Cover LH .
    5. Refer to: Vacuum Pump .
    6. Refer to: Oil Cooler .
    7. LH side. Refer to: Charge Air Cooler (CAC) Intake Pipe .

  35. Remove the bolt and position the ground cable aside.

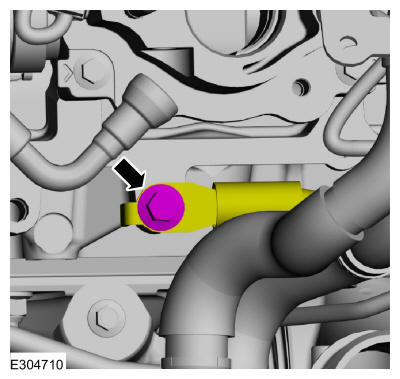

    GFD511152Courtesy of FORD MOTOR COMPANY
  36. Detach the wiring harness retainer.

    • Remove the bolt and position the ground cable aside.

    GFD511153Courtesy of FORD MOTOR COMPANY
  37. Release the clamps and disconnect the upper and lower radiator hoses.

    • Position the hoses aside.

    GFD511154Courtesy of FORD MOTOR COMPANY
  38. Remove the following items:

    1. Refer to: Accessory Drive Belt .
    2. Refer to: Accessory Drive Belt Tensioner .
    3. NOTE: It is not necessary to remove the thermostat housing. The coolant pump and thermostat housing can be removed as an assembly.

      Refer to: Coolant Pump .

    4. Refer to: Generator - 3.0L EcoBoost .
    5. Refer to: Crankshaft Front Seal .

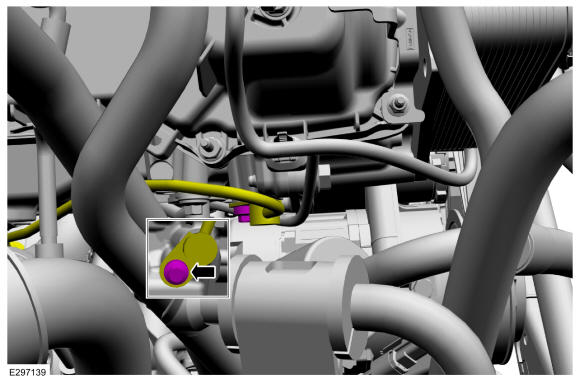

  39. Remove the bolt and disconnect the RH turbocharger oil supply tube.
    GFD511155Courtesy of FORD MOTOR COMPANY

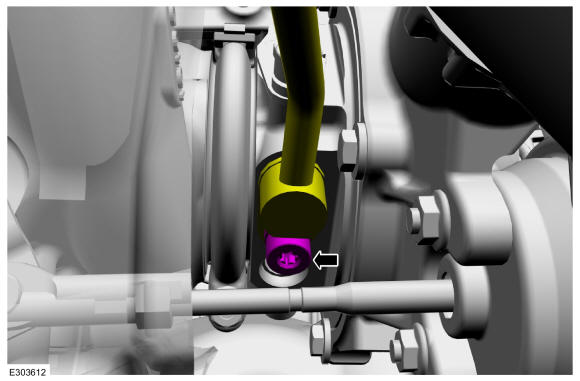

  40. Remove the bolt, then disconnect the RH turbocharger coolant return tube.
    GFD511156Courtesy of FORD MOTOR COMPANY

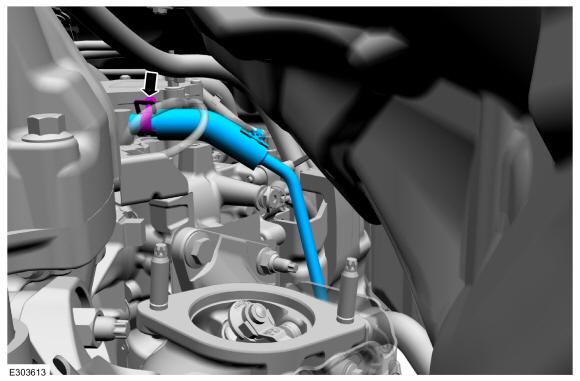

  41. Release the clamp, then disconnect and remove the RH turbocharger coolant return tube. Use the General Equipment: Hose Clamp Remover /Installer
    GFD511157Courtesy of FORD MOTOR COMPANY
    • NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Install new components if needed.

      Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    1. Remove and discard the turbocharger coolant return tube O-ring seal.

    GFD511158Courtesy of FORD MOTOR COMPANY
  43. Release the clamp and disconnect the RH turbocharger wastegate control vacuum hose.
    GFD511159Courtesy of FORD MOTOR COMPANY

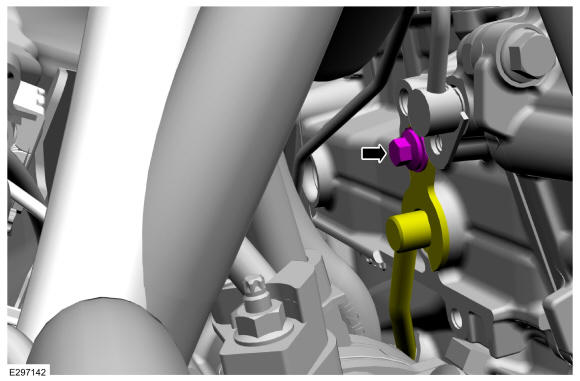

  44. Remove the bolt and disconnect the RH turbocharger coolant supply tube.
    GFD511160Courtesy of FORD MOTOR COMPANY

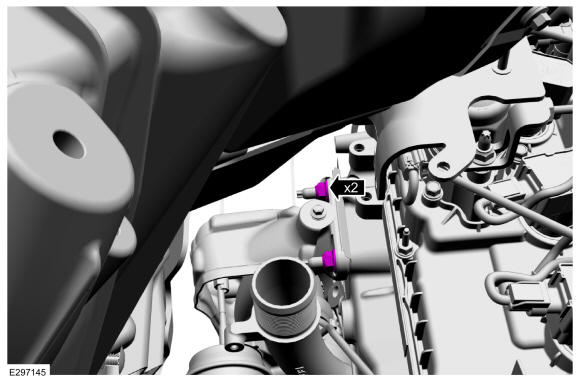

  45. Remove the RH turbocharger nuts.
    GFD511161Courtesy of FORD MOTOR COMPANY

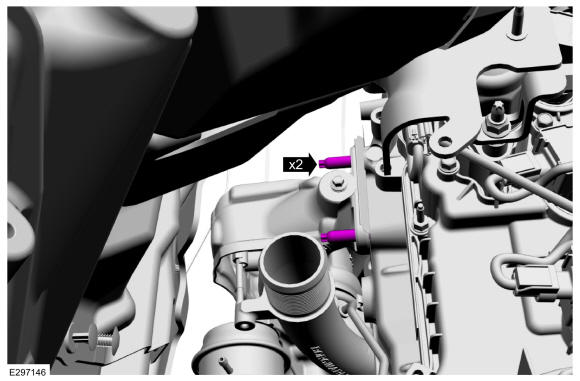

  46. Remove the RH turbocharger studs.
    GFD511162Courtesy of FORD MOTOR COMPANY
  47. NOTE: The engine mounts and subframe will be temporarily installed to support the engine, do not discard the fasteners until instructed to do so.

    Remove the engine mounts. Refer to: Engine Mount LH . Refer to: Engine Mount RH .

  48. NOTE: The RH turbocharger oil return tube cannot be removed until after the turbocharger has been removed.

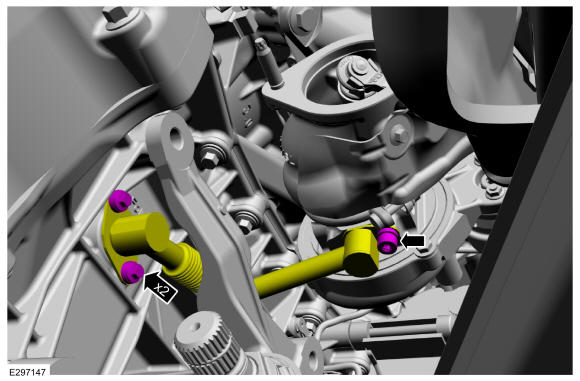

    Remove the bolts and position the RH turbocharger oil return tube aside.

    GFD511163Courtesy of FORD MOTOR COMPANY

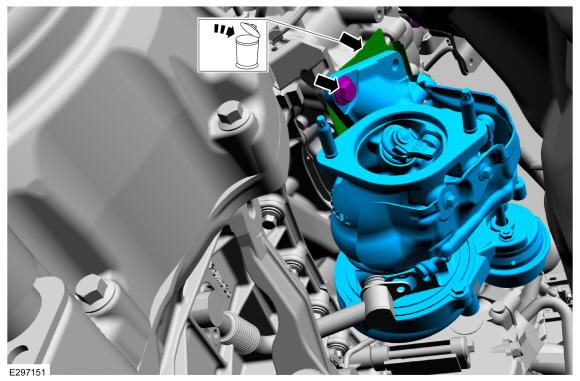

  49. Remove the bolt and the RH turbocharger and gasket. Discard the gasket.
    GFD511164Courtesy of FORD MOTOR COMPANY

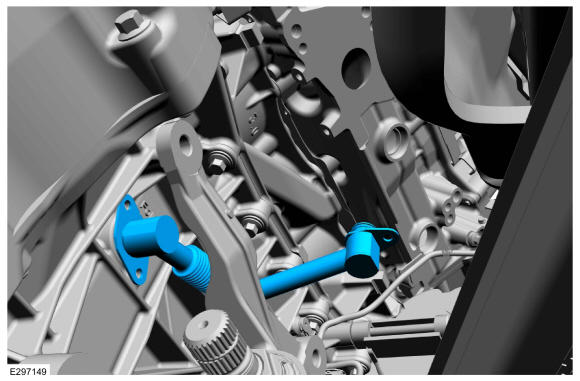

  50. Remove the RH turbocharger oil return tube.
    GFD511165Courtesy of FORD MOTOR COMPANY
    1. NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect for blockage in the turbocharger tube. Check the tube, the sealing surfaces and the flange for flatness and damage. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Install new components if needed.

      Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

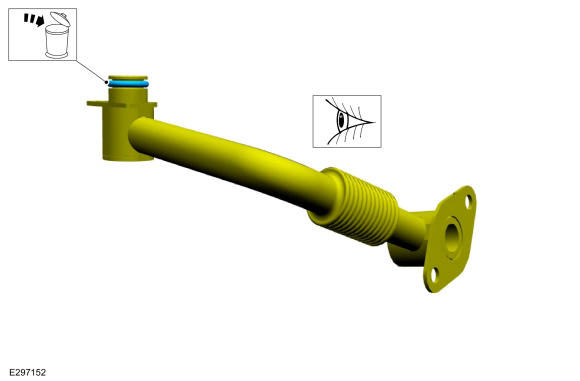

    2. Remove and discard the turbocharger oil return tube O-ring seal.
    GFD511166Courtesy of FORD MOTOR COMPANY

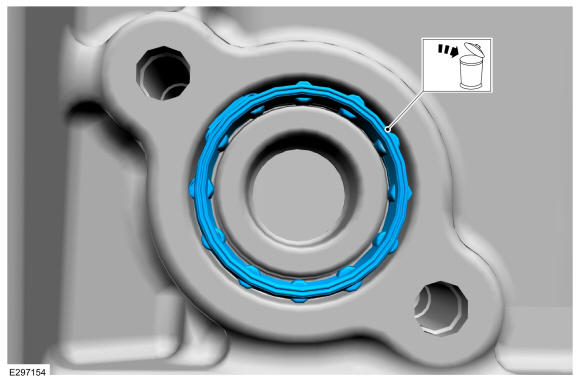

  52. Remove and discard the turbocharger oil return tube tube-to-engine block gasket.
    GFD511167Courtesy of FORD MOTOR COMPANY

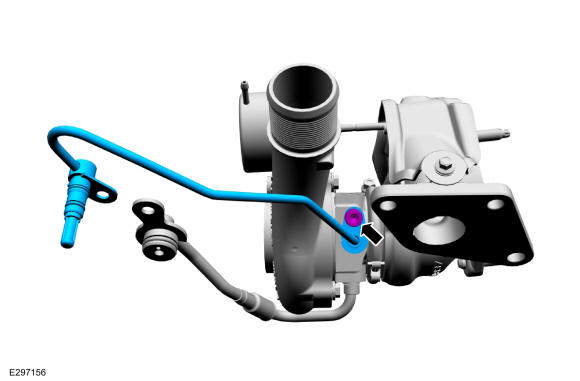

  53. Remove the bolt and the turbocharger oil supply tube.
    GFD511168Courtesy of FORD MOTOR COMPANY
    1. NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Install new components if needed.

      Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    2. Remove and discard the turbocharger oil supply tube O-ring seals and the turbocharger oil supply tube oil filter.
    GFD511169Courtesy of FORD MOTOR COMPANY
  55. Remove the bolt and the turbocharger coolant supply tube.

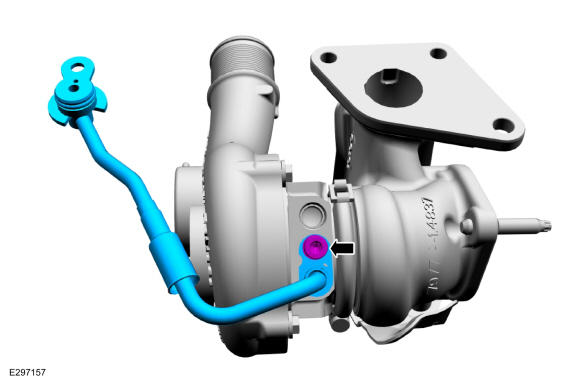

    GFD511170Courtesy of FORD MOTOR COMPANY
    1. NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Install new components if needed.

      Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    2. Remove and discard the turbocharger coolant return tube O-ring seals.
    GFD511171Courtesy of FORD MOTOR COMPANY
  57. Position the RH engine mount and install the original studs.

    Torque: 35 lb.ft (48 Nm)

    GFD511172Courtesy of FORD MOTOR COMPANY
  58. Install the original bolts and nuts finger-tight and then tighten in sequence.

    Torque: Stage 1: 66 lb.ft (90 Nm) - Stage 2: 90°.

    GFD511173Courtesy of FORD MOTOR COMPANY
  59. Remove the wire harness bracket bolt and position the bracket aside.
    GFD511174Courtesy of FORD MOTOR COMPANY
  60. Remove the bolts and the LH turbocharger oil return tube.
    GFD511175Courtesy of FORD MOTOR COMPANY
    1. NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect for blockage in the turbocharger tube. Check the tube, the sealing surfaces and the flange for flatness and damage. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Install new components if needed.

      Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    2. Remove and discard the turbocharger oil return tube O-ring seal.
    GFD511176Courtesy of FORD MOTOR COMPANY
  62. Remove and discard the turbocharger oil return tube tube-to-engine block gasket.
    GFD511177Courtesy of FORD MOTOR COMPANY
  63. Disconnect the front axle disconnect actuator electrical connector and vent hose.
    GFD511178Courtesy of FORD MOTOR COMPANY
  64. Remove the bolts and the front axle disconnect actuator.
    GFD511179Courtesy of FORD MOTOR COMPANY
  65. Remove and discard the seal.
    GFD510648Courtesy of FORD MOTOR COMPANY
  66. Install the LH engine mount, the original bolts finger-tight and then tighten in sequence.

    Torque: 46 lb.ft (63 Nm)

    GFD511180Courtesy of FORD MOTOR COMPANY
  67. NOTE: Make sure that the LH and RH engine mount studs are in the subframe when raised.

    With the aid of an assistant, raise the front and rear jack stand evenly.

    GFD511181Courtesy of FORD MOTOR COMPANY
  68. Install the original front subframe bolts finger tight.
    GFD511182Courtesy of FORD MOTOR COMPANY
  69. Install the original middle subframe bolts finger tight.
    GFD511183Courtesy of FORD MOTOR COMPANY
  70. Install the original rear subframe bolts finger tight.
    GFD511184Courtesy of FORD MOTOR COMPANY
  71. Tighten the front subframe bolts.

    Torque: 195 lb.ft (265 Nm)

    GFD511182Courtesy of FORD MOTOR COMPANY
  72. Tighten the middle subframe bolts.

    Torque: 195 lb.ft (265 Nm)

    GFD511183Courtesy of FORD MOTOR COMPANY
  73. Tighten the rear subframe bolts.

    Torque: 52 lb.ft (70 Nm)

    GFD511184Courtesy of FORD MOTOR COMPANY
  74. Remove adjustable jack stands.
    GFD510565Courtesy of FORD MOTOR COMPANY

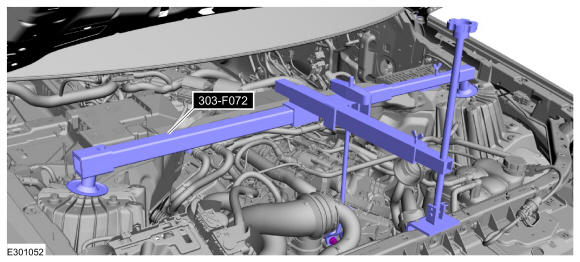

  75. Remove Special Service Tool: 303-F072 Support Bar, Engine.
    GFD511185Courtesy of FORD MOTOR COMPANY

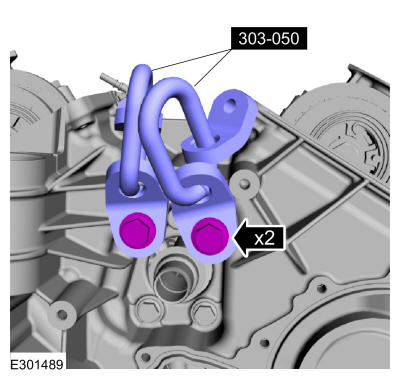

  76. Remove the two M8 x 1.25 x 105 mm bolts, two washers, and the special tools. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD511186Courtesy of FORD MOTOR COMPANY
  77. Remove the bolts and the heat shield.
    GFD511187Courtesy of FORD MOTOR COMPANY
  78. Remove the bolt, then disconnect the turbocharger coolant return tube from the turbocharger.
    GFD511188Courtesy of FORD MOTOR COMPANY
  79. Release the clamp, then disconnect and remove the turbocharger coolant return tube. Use the General Equipment: Hose Clamp Remover /Installer

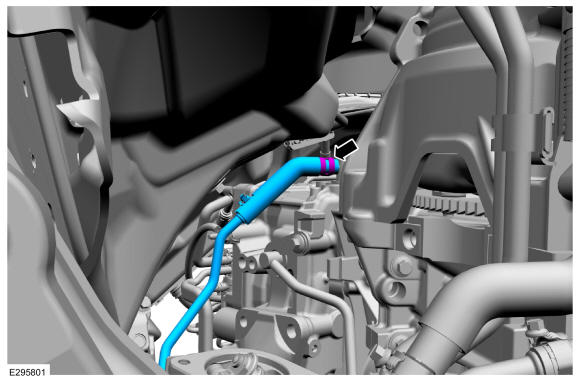

    GFD511189Courtesy of FORD MOTOR COMPANY
    • NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Install new components if needed.

      Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    1. Remove and discard the turbocharger coolant return tube O-ring seal.

    GFD511158Courtesy of FORD MOTOR COMPANY
  81. Remove the turbocharger oil supply tube bolt, then disconnect the turbocharger oil supply tube.
    GFD511190Courtesy of FORD MOTOR COMPANY
  82. Disconnect the clamp and the turbocharger wastegate control hose. Use the General Equipment: Hose Clamp Remover /Installer
    GFD511191Courtesy of FORD MOTOR COMPANY
  83. Remove the turbocharger coolant supply tube bolt, then remove the outer tube.
    GFD511192Courtesy of FORD MOTOR COMPANY
    • NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area.

      Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    1. Remove and discard the turbocharger coolant supply tube O-ring seal. Inspect the rubber gasket. Install new components if needed.

    GFD511193Courtesy of FORD MOTOR COMPANY
  85. Remove the upper turbocharger nuts.
    GFD511194Courtesy of FORD MOTOR COMPANY
  86. Remove the turbocharger studs.
    GFD511195Courtesy of FORD MOTOR COMPANY
  87. Remove the turbocharger bolt, then remove the turbocharger and gasket. Discard the gasket.
    GFD511196Courtesy of FORD MOTOR COMPANY
  88. Remove the turbocharger oil supply tube bolt, then disconnect the turbocharger oil supply tube from the turbocharger.
    GFD511197Courtesy of FORD MOTOR COMPANY
    • NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area.

      Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    1. Remove and discard the turbocharger oil supply tube O-ring seals and the turbocharger oil supply tube oil filter. Install new components if needed.

    GFD511169Courtesy of FORD MOTOR COMPANY
    • NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Install new components if needed.

      Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    1. Remove and discard the turbocharger coolant return tube O-ring seals.

    GFD511198Courtesy of FORD MOTOR COMPANY
  91. Disconnect the A/C compressor electrical connectors.

    • Detach the wiring harness retainer.

    GFD511199Courtesy of FORD MOTOR COMPANY
  92. Remove the bolts.

    • Position the A/C compressor aside.

    GFD511200Courtesy of FORD MOTOR COMPANY
  93. Detach the wiring harness retainer.
    GFD511201Courtesy of FORD MOTOR COMPANY
  94. NOTE: There are 5 different types of fasteners, note location of each fastener for assembly.

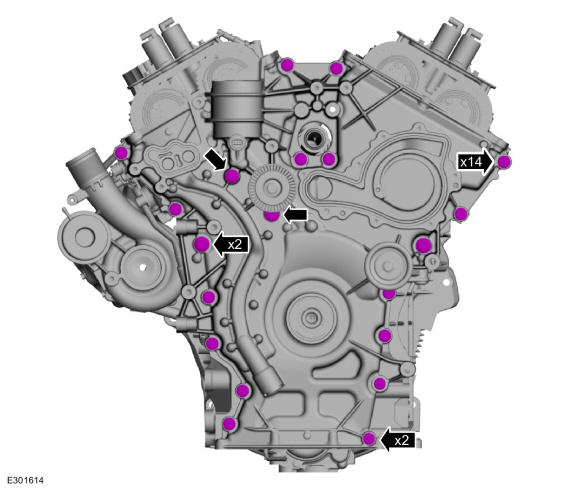

    Remove the engine front cover fasteners.

    GFD511202Courtesy of FORD MOTOR COMPANY
  95. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and remove the engine front cover. Use the General Equipment: Flat-Bladed Screwdriver
    GFD511203Courtesy of FORD MOTOR COMPANY
  96. Remove and discard the engine front cover gaskets.
    GFD511204Courtesy of FORD MOTOR COMPANY
  97. Remove and discard the oil gallery seal (6G068).
    GFD511205Courtesy of FORD MOTOR COMPANY
  98. NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean front cover.

    • Clean the engine front cover using a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 RPM. Refer to: RTV Sealing Surface Cleaning and Preparation .

    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

      Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

      Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

      Material: Motorcraft® Metal Surface Prep wipes / ZC-31-B

    GFD511206Courtesy of FORD MOTOR COMPANY
  99. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages may cause engine failure.
    NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of the gasket.

    Make sure that the mating faces of the engine block are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    Material: Motorcraft® Metal Surface Prep wipes / ZC-31-B

    GFD511207Courtesy of FORD MOTOR COMPANY
  100. Remove the RH (right hand) VCT units. Refer to: Variable Camshaft Timing (VCT) Unit .
  101. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

    Remove the bolts and the front camshaft bearing mega cap.

    GFD511083Courtesy of FORD MOTOR COMPANY
  102. Remove the bolts and the camshaft bearing caps.
    GFD511084Courtesy of FORD MOTOR COMPANY
  103. Remove the intake and exhaust camshafts.
    GFD511085Courtesy of FORD MOTOR COMPANY
    1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
    2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
    3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.
    GFD511086Courtesy of FORD MOTOR COMPANY
  105. Remove the RH cylinder head to coolant outlet connector hose assembly. Refer to: Cylinder Head to Coolant Outlet Connector Hose Assembly .
    • Loosen the fuel rail-to-fuel rail high-pressure fuel tube flare nuts.

    • Remove and discard the high-pressure fuel tube.

    GFD511120Courtesy of FORD MOTOR COMPANY

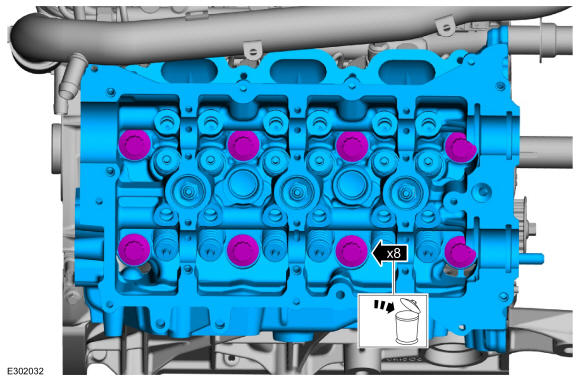

    • Remove and discard the cylinder head bolts.

    • Remove the cylinder head.

    GFD511208Courtesy of FORD MOTOR COMPANY
  108. Remove and discard the cylinder head gasket.
    GFD511209Courtesy of FORD MOTOR COMPANY
    • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.

GFD511210Courtesy of FORD MOTOR COMPANY
scientia non olet · About LEMON Manuals
