Cylinder Head RH: Installation

WARNING: This page is about a different variant/trim than selected.

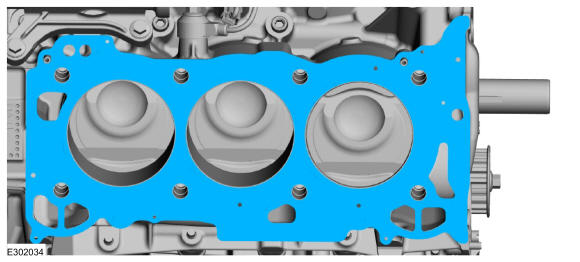

Inspect the turbochargers and engine air intake system components and clean, if necessary.
Install a new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
- Install the cylinder head.
- Install new cylinder head bolts.
  Torque: Stage 1: 177 lb.in (20 Nm) - Stage 2: Loosen: 2 turn(s) - Stage 3: 37 lb.ft (50 Nm) - Stage 4: 180°

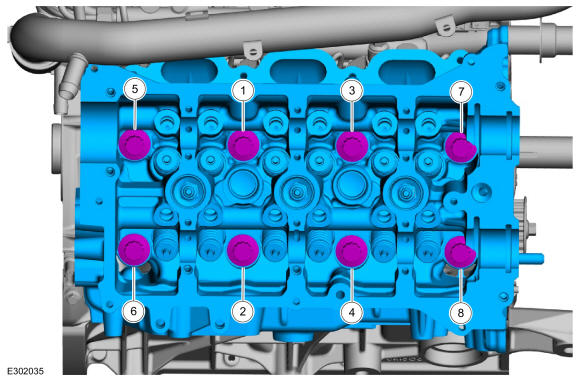

Fig 1: RH Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install a new fuel rail-to-fuel rail high-pressure fuel tube and finger tighten the flare nuts.
- Final tighten the flare nuts.
  Torque: Stage 1: 62 lb.in (7 Nm) - Stage 2: 89 lb.in (10 Nm) - Stage 3: 25°
Courtesy of FORD MOTOR COMPANY
Install the RH cylinder head to coolant outlet connector hose assembly. Refer to: Cylinder Head to Coolant Outlet Connector Hose Assembly .
NOTE: Do not install the camshaft roller followers at this time. The roller followers will be installed later in the procedure. If the roller followers are installed prior to the camshafts, the camshaft caps can become distorted during the camshaft tightening process and result in upper end engine noise or severe damage to the engine.

NOTE: If the original components are to be reinstalled, they must be installed in their original locations.
1. Lubricate the hydraulic lash adjusters with clean engine oil.
2. Install the hydraulic lash adjusters.
Courtesy of FORD MOTOR COMPANY
- Lubricate the camshafts with clean engine oil.
- Install the intake and exhaust camshafts in the neutral position. Align the D-slots as shown in the illustration.
Courtesy of FORD MOTOR COMPANY
Apply a 1 mm bead of Sealant to the rear camshaft cap mounting surface of the cylinder head.
Material: Flange Sealant / CU7Z-19B508-A (WSS-M2G348-A11)

Courtesy of FORD MOTOR COMPANY
Install the camshaft bearing caps and the bolts. Do not tighten at this time.

Courtesy of FORD MOTOR COMPANY
Install the front camshaft bearing mega cap and the bolts. Do not tighten at this time.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the RH VCT units. Refer to: Variable Camshaft Timing (VCT) Unit .
Install new engine front cover gaskets.

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the new oil gallery seal with clean engine oil.

Lubricate and install a new oil gallery seal (6G068).

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The engine front cover must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.

Apply 9 mm (0.35 in) beads of Motorcraft® High Performance Engine RTV Silicone 10 mm (0.40 in) in length to the cylinder block skirt-to-cylinder block joints and the cylinder head-to-cylinder block joints as indicated.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The engine front cover must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.
1. Apply a 4.5 mm (0.18 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover sealing surfaces of the inner bolt bosses.
  Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
2. Apply a 4.5 mm (0.18 in) bead of Motorcraft® High Performance Engine RTV Silicone to the chamfer of the engine front cover sealing surfaces.
  Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
Courtesy of FORD MOTOR COMPANY
Install the engine front cover and the fasteners.
Torque: Stage 1: Tighten bolts 1 through 11 to: 18 lb.ft (24 Nm) - Stage 2: Tighten bolts 12 through 13 to: 35 lb.ft (48 Nm) - Stage 3: Tighten bolts 14 through 20 to: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY
Attach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
Position the A/C compressor.
- Install the bolts.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

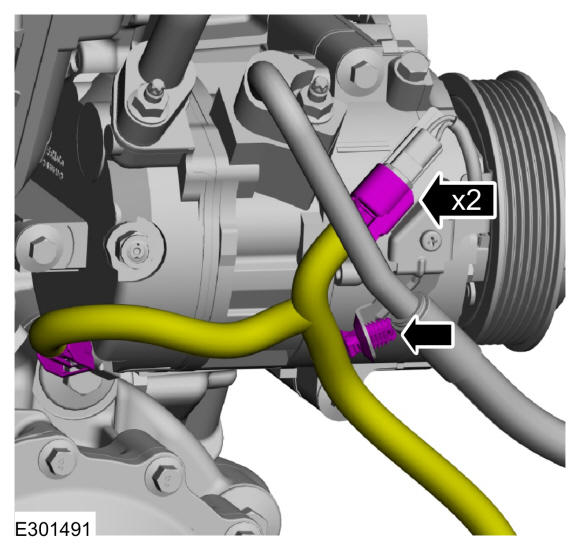

Connect the A/C compressor electrical connectors.
- Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY
NOTE: A new turbocharger oil supply filter must be installed. Failure to follow these instructions can result in turbocharger damage.

Install the new turbocharger oil supply tube O-ring seals and the new turbocharger oil supply tube oil filter. Lubricate the new turbocharger oil supply tube O-ring seals with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore and the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. Do not use a metal brush, damage to sealing area will result in leaks. Install new components if needed.
1. Connect the turbocharger oil supply tube to the turbocharger, then install and tighten the turbocharger oil supply tube bolt.
  Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
- NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

  Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bores for both the oil and coolant tubes. Inspect the area for deep scratches and gouges. Do not use a metal brush, damage to sealing area will result in leaks. Install new components if needed.

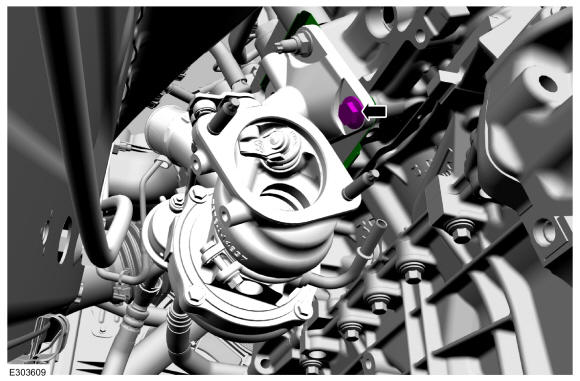

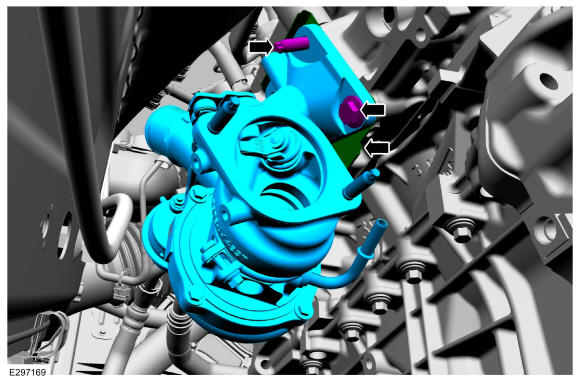

1. Install the turbocharger, the new gasket, the bolt and the stud. Install the turbocharger oil supply tube to the engine while installing the turbocharger.
  Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B
Courtesy of FORD MOTOR COMPANY
1. Install the front turbocharger stud.
2. Tighten the turbocharger studs.
  Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY
Loosely install the turbocharger nuts.

Courtesy of FORD MOTOR COMPANY

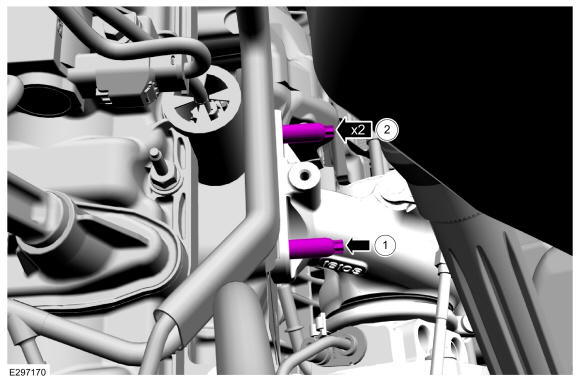

Tighten the turbocharger bolt.
Torque: 44 lb.ft (60 Nm)

Courtesy of FORD MOTOR COMPANY
1. Tighten the turbocharger nut.
  Torque: 27 lb.ft (37 Nm)
2. Tighten the turbocharger nut.
  Torque: 44 lb.ft (60 Nm)
Courtesy of FORD MOTOR COMPANY
Re-tighten the turbocharger bolt.
Torque: 44 lb.ft (60 Nm)

Courtesy of FORD MOTOR COMPANY
1. Re-tighten the turbocharger nut
  Torque: 27 lb.ft (37 Nm)
2. Re-tighten the turbocharger nuts.
  Torque: 44 lb.ft (60 Nm)
Courtesy of FORD MOTOR COMPANY
Install a new outer turbocharger coolant supply tube O-ring seal. Lubricate the O-ring seal and the rubber gasket with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.
1. Install the outer turbocharger coolant supply tube, then install and tighten the bolt.
  Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Connect the turbocharger wastegate control hose and clamp. Use the General Equipment: Hose Clamp Remover /Installer

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore and the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.
1. Install the turbocharger oil supply tube, then install and tighten the oil supply tube bolt.
  Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Install a new turbocharger coolant return tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Install and connect the turbocharger coolant return tube and clamp. Use the General Equipment: Hose Clamp Remover /Installer

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.
  Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B
1. Connect the turbocharger coolant return tube to the turbocharger, then install and tighten the bolt.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Install the turbocharger heat shield and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

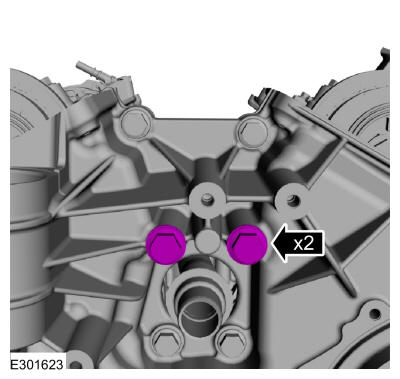

Remove the engine front cover bolts.

Courtesy of FORD MOTOR COMPANY

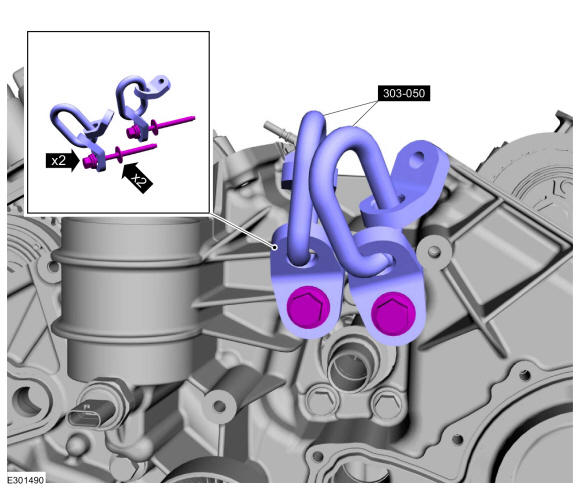

Using two M8 x 1.25 x 105 mm bolts and two washers, install the special tools to the engine. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY
Install Special Service Tool: 303-F072 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY
Support the front and rear of the subframe with adjustable jack stands.

Courtesy of FORD MOTOR COMPANY

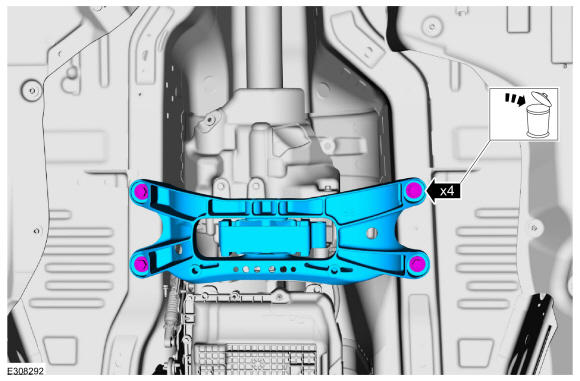

- Remove the rear subframe bolts.
- Discard the bolts.
Courtesy of FORD MOTOR COMPANY
- Remove the middle subframe bolts.
- Discard the bolts.
Courtesy of FORD MOTOR COMPANY
- Remove the front subframe bolts.
- Discard the bolts.
Courtesy of FORD MOTOR COMPANY
With the aid of an assistant, lower the front jack stand 127 mm (5.0 in) and the rear jack stand 152.4 mm (6.0 in) evenly or until engine mount stud clears the subframe.

Courtesy of FORD MOTOR COMPANY

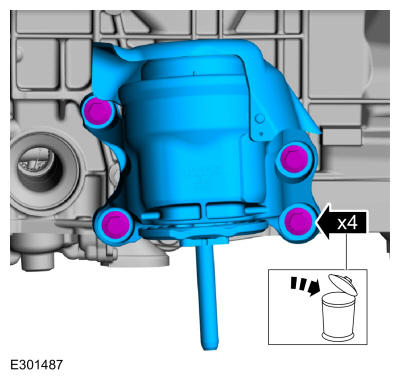

- Remove the bolts and the LH engine mount.
- Discard the bolts.
Courtesy of FORD MOTOR COMPANY

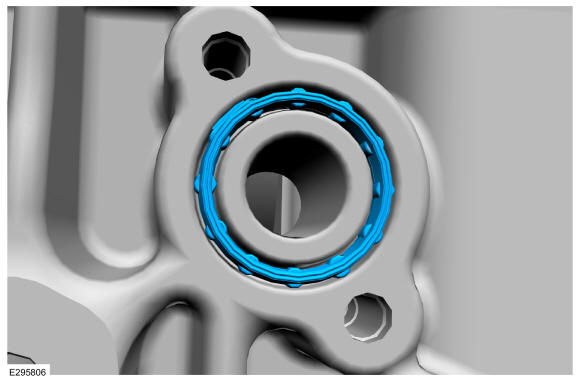

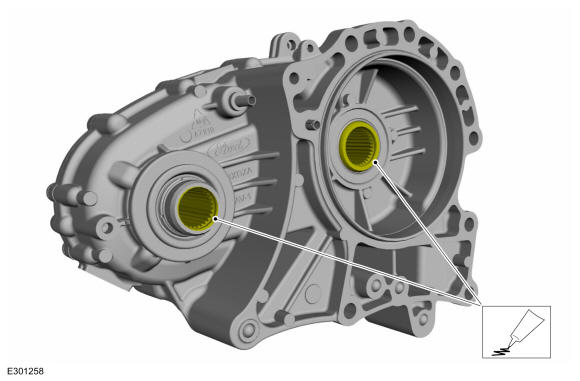

Install a new seal and lubricate.

Courtesy of FORD MOTOR COMPANY

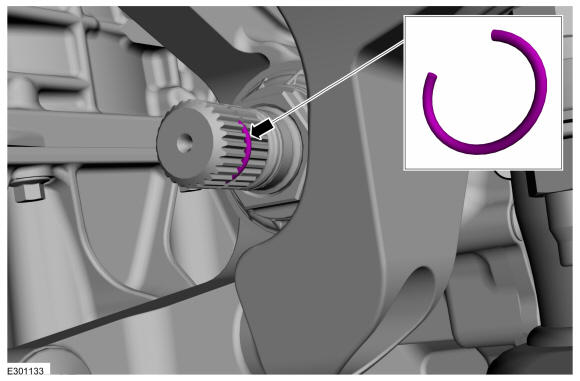

Install the front axle disconnect actuator and the bolts.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

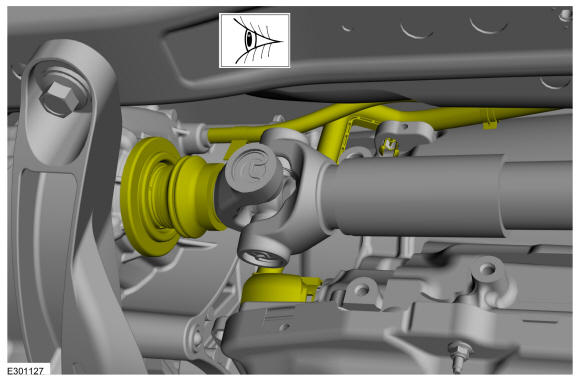

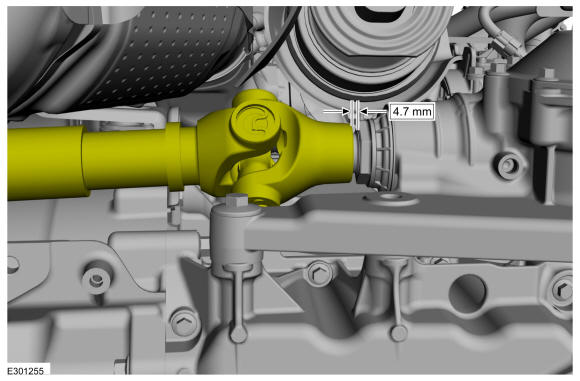

Connect the front axle disconnect actuator electrical connector and vent hose.

Courtesy of FORD MOTOR COMPANY
Install the new turbocharger oil return tube-to-engine block gasket.

Courtesy of FORD MOTOR COMPANY

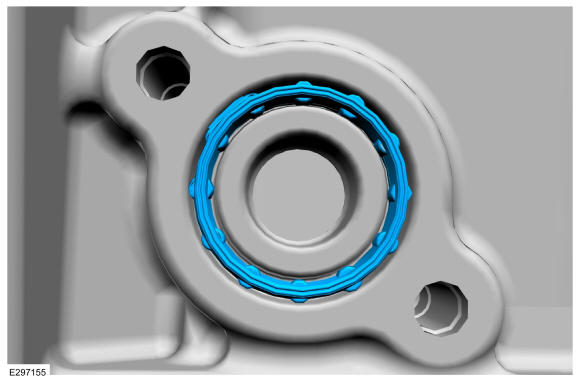

Install a new turbocharger oil return tube O-ring seal, then lubricate with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges.
1. Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube bolts.
  Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Install the wire harness bracket, then install and tighten the bolt.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Remove and discard the nuts and bolts.

Courtesy of FORD MOTOR COMPANY
- Remove the studs and the RH engine mount.
- Discard the studs.
Courtesy of FORD MOTOR COMPANY
Install a new turbocharger coolant supply tube O-ring seals. Lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
- NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

  Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.
- Install the turbocharger coolant supply tube to the turbocharger, then install and tighten the turbocharger coolant supply tube bolt.
  Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

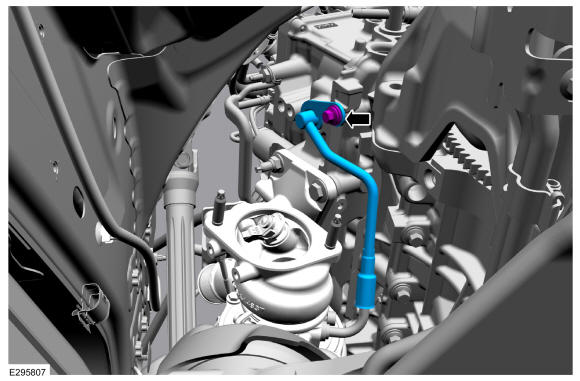

Install the new turbocharger oil supply tube O-ring seals and the new turbocharger oil supply tube oil filter. Lubricate the new turbocharger oil supply tube O-ring seals with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore and the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. Do not use a metal brush, damage to sealing area will result in leaks. Install new components if needed.
- Connect the turbocharger oil supply tube to the turbocharger, then install and tighten the turbocharger oil supply tube bolt.
  Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Install the new turbocharger oil return tube-to-engine block gasket.

Courtesy of FORD MOTOR COMPANY
Install a new turbocharger oil return tube O-ring seal, then lubricate with clean engine oil. Refer to: Specifications

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a metal brush; damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges.
- Position the turbocharger oil return tube behind the axle bracket.
Courtesy of FORD MOTOR COMPANY
NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bores for both the oil and coolant tubes. Inspect the area for deep scratches and gouges. Do not use a metal brush; damage to sealing area will result in leaks.

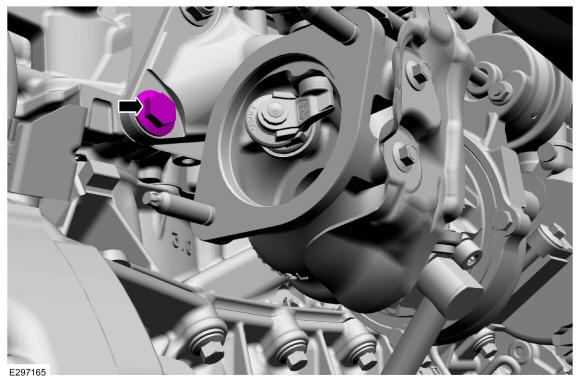

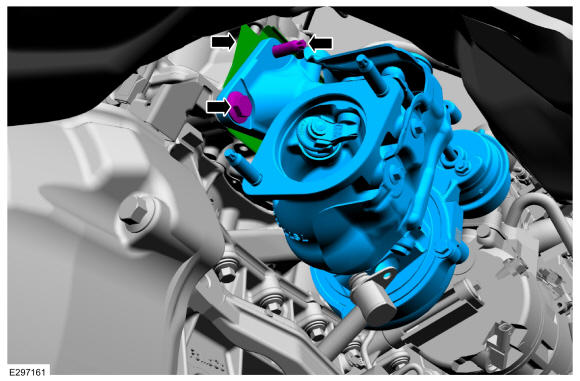

Install the turbocharger, the new gasket, the bolt and the stud. Install the turbocharger coolant and oil supply tubes to the engine while installing the turbocharger.

Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges.
1. Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube bolts.
  Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Install the engine mounts. Refer to: Engine Mount LH . Refer to: Engine Mount RH .
1. Install the front turbocharger stud.
2. Tighten the turbocharger studs.
  Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY
Loosely install the turbocharger nuts.

Courtesy of FORD MOTOR COMPANY

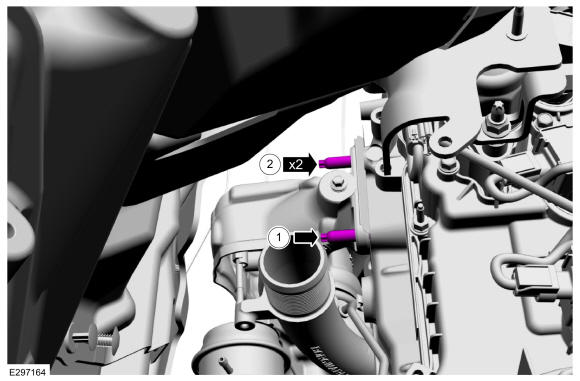

Tighten the turbocharger bolt.
Torque: 44 lb.ft (60 Nm)

Courtesy of FORD MOTOR COMPANY
1. Tighten the turbocharger nut.
  Torque: 44 lb.ft (60 Nm)
2. Tighten the turbocharger nut.
  Torque: 27 lb.ft (37 Nm)
Courtesy of FORD MOTOR COMPANY
Re-tighten the turbocharger bolt.
Torque: 44 lb.ft (60 Nm)

Courtesy of FORD MOTOR COMPANY
1. Re-tighten the turbocharger nuts.
  Torque: 44 lb.ft (60 Nm)
2. Re-tighten the turbocharger nut
  Torque: 27 lb.ft (37 Nm)
Courtesy of FORD MOTOR COMPANY
Install the turbocharger coolant supply tube, then install and tighten the turbocharger coolant supply tube bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the turbocharger wastegate control hose and clamp.

Courtesy of FORD MOTOR COMPANY
Install a new turbocharger coolant return tube O-ring seal and lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Install and connect the turbocharger coolant return tube and clamp. Use the General Equipment: Hose Clamp Remover /Installer

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.
  Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

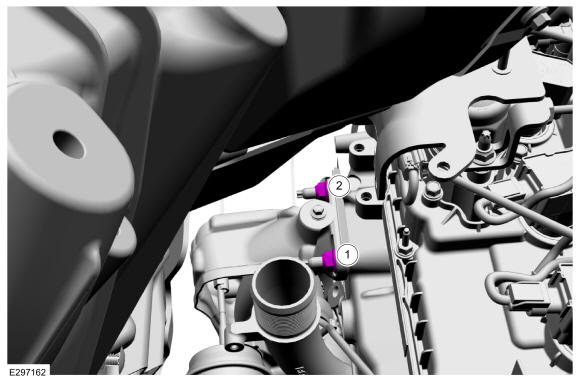

1. Connect the turbocharger coolant return tube to the turbocharger, then install and tighten the bolt.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: When installing the turbocharger oil supply tube into the engine block, use care not to damage the new turbocharger oil supply tube oil filter.

Install the turbocharger oil supply tube to the engine, then install and tighten the turbocharger oil supply tube bolt.

Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Crankshaft Front Seal .
2. Refer to: Generator - 3.0L EcoBoost .
3. Refer to: Coolant Pump .
4. Refer to: Accessory Drive Belt Tensioner .
5. Refer to: Accessory Drive Belt .
Rotate the crankshaft pulley bolt clockwise to position the camshaft lobe upward for the camshaft roller follower to be installed.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not allow the valve keepers to fall off the valve or the valve may drop into the cylinder. If a valve drops into the cylinder, the cylinder head must be removed.

NOTE: It may be necessary to push the valve down while compressing the spring.
1. Install Special Service Tool: 303-1633 Remover, Roller Rocker Follower.
2. Turn the knob on the special tool clockwise to depress the valve and spring.
Courtesy of FORD MOTOR COMPANY
1. Lubricate the camshaft roller follower with clean engine oil.
2. Install the camshaft roller follower.
3. Turn the knob on the special tool counterclockwise to raise the valve and spring. Remove Special Service Tool: 303-1633 Remover, Roller Rocker Follower.
- Repeat steps for the remaining camshaft roller followers.
Courtesy of FORD MOTOR COMPANY
Install the upper and lower radiator hoses and clamps.

Courtesy of FORD MOTOR COMPANY
Attach the wiring harness retainer.
- Position the ground cable and install the bolt.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Position the ground cable and install the bolt.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. LH side. Refer to: Charge Air Cooler (CAC) Intake Pipe .
2. Refer to: Oil Cooler .
3. Refer to: Vacuum Pump .
4. Refer to: Valve Cover LH .
5. Refer to: Valve Cover RH .
6. Refer to: Degas Bottle .
7. Refer to: Oil Pan .
NOTE: Secure the transmission to the transmission jack with a safety strap.

NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

Using a high-lift transmission jack, support the transmission. Use the General Equipment: Transmission Jack, Use the General Equipment: Retaining Strap

Courtesy of FORD MOTOR COMPANY
Remove the transfer case mounting bolts and nut.

Courtesy of FORD MOTOR COMPANY
1. Remove the bolts and the transmission support crossmember.
2. Discard the bolts.
Courtesy of FORD MOTOR COMPANY
Remove the transfer case to transmission bolts.

Courtesy of FORD MOTOR COMPANY
Remove the transfer case to transmission bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: This step requires the aid of another technician.

Remove the transfer case from the transmission.

Courtesy of FORD MOTOR COMPANY
Lower the transmission jack 32 mm (1.25 in). Use the General Equipment: Transmission Jack, Use the General Equipment: Retaining Strap

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new component is installed.

NOTE: Make sure that the O-ring is seated correctly.

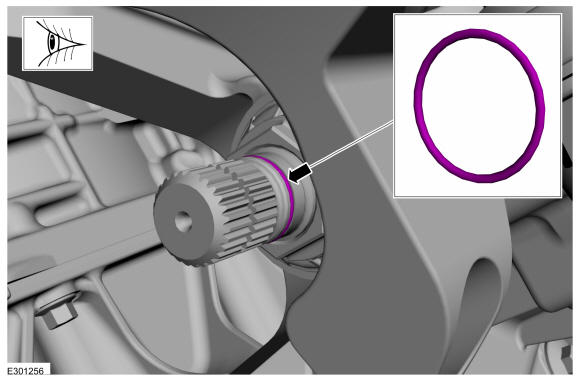

Install a new front axle pinion stem O-ring.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new component is installed.

Install the new front axle pinion stem circlip.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not over-lubricate the driveshaft components. Using excessive Grease may damage the driveshaft components.

NOTE: Wipe off any excess Grease.

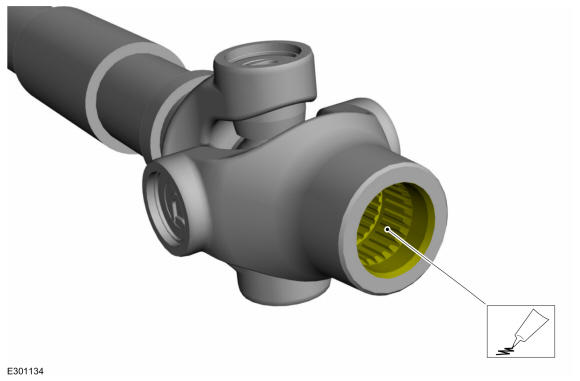

Lubricate the front drive axle splines with Grease.

Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Courtesy of FORD MOTOR COMPANY
NOTE: Transmission removed from view for clarity.

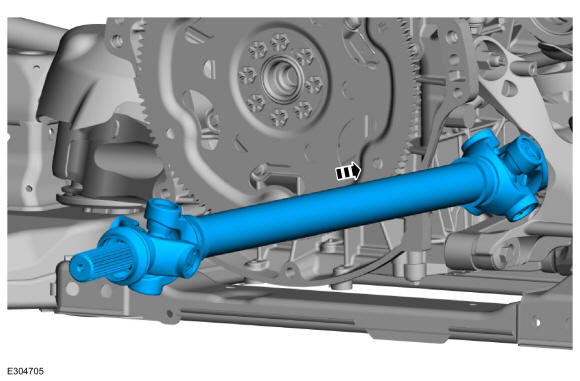

Install the front drive shaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Maintain the suitable possible distance between components.

Ensure the distance between the edge of plug-on yoke and the front axle pinion nut.

Courtesy of FORD MOTOR COMPANY
NOTE: Transmission removed from view for clarity.

Install the heat shield and the fasteners.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
- If removed, install new studs.
  Torque: 18 lb.ft (25 Nm)
- Install the new gasket.
Courtesy of FORD MOTOR COMPANY
NOTE: Transmission removed from view for clarity.

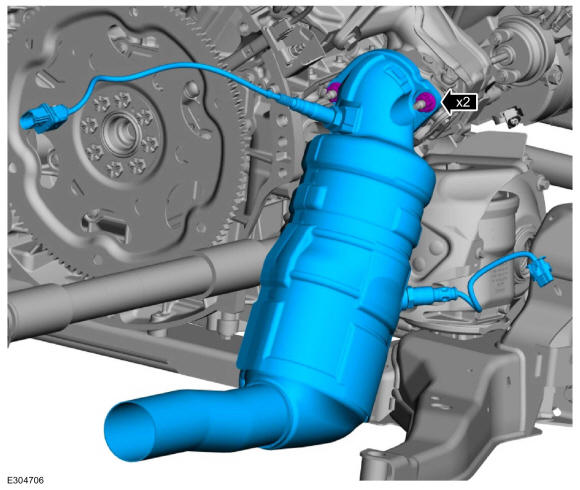

Install the RH catalytic converter and the new nuts.

Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
- Connect the catalyst monitor sensor electrical connector.
- Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY
- Connect the HO2S electrical connector.
- Attach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
Raise the transmission jack 32 mm (1.25 in). Use the General Equipment: Transmission Jack, Use the General Equipment: Retaining Strap

Courtesy of FORD MOTOR COMPANY
NOTE: Do not over-lubricate the driveshaft components. Using excessive Grease may damage the driveshaft components.

NOTE: Wipe off any excess Grease.

Lubricate the transfer case inner splines with Grease.

Material: Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing Grease / XG-11 (WSS-M1C267-A1)

Courtesy of FORD MOTOR COMPANY
NOTE: This step requires the aid of another technician.

Install the transfer case onto the transmission.

Courtesy of FORD MOTOR COMPANY
Install the transfer case to transmission bolts.
Torque: 168 lb.in (19 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transfer case to transmission bolts.
Torque: 168 lb.in (19 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transmission support crossmember and the new bolts.

Courtesy of FORD MOTOR COMPANY
Install the transfer case mounting bolts and nut.

Courtesy of FORD MOTOR COMPANY
Remove the high-lift transmission jack Use the General Equipment: Transmission Jack, Use the General Equipment: Retaining Strap

Courtesy of FORD MOTOR COMPANY
Install the heat shield and the fasteners.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Connect transfer case motor assembly electrical connector and position the wiring harness properly.

Courtesy of FORD MOTOR COMPANY
Attach the transfer case vent hose.

Courtesy of FORD MOTOR COMPANY
Ensure the electrical wiring harness is properly routing near U-joint and not contacting to driveshaft at any point.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not over articulate the driveshaft or damage may occur.

NOTE: Do not force the flex coupling bushing on the transfer case output shaft or damage will occur.

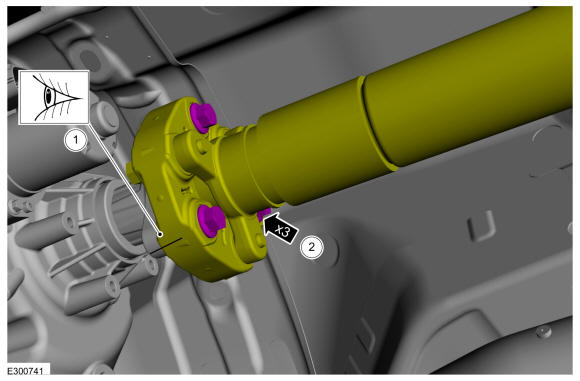

1. Align the index-mark on driveshaft flex coupling to the transfer case flange.
2. Install the new driveshaft flex coupling to transfer case flange bolts.
  Torque: 81 lb.ft (110 Nm)
Courtesy of FORD MOTOR COMPANY
If equipped. Install the transfer case heat shield and the bolts.
Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
Install the exhaust mounting bracket and the fasteners
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. LH and RH exhaust flexible pipes. Refer to: Exhaust Flexible Pipe .
2. LH side. Refer to: Halfshaft .
3. Front wheels and tires. Refer to: Wheel and Tire .
Install a new engine oil filter and fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
Pressurize the fuel system. Refer to: Fuel System Pressure Release .
Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
Start and check the exhaust system for leaks.
