Cylinder Head LH: Installation

WARNING: This page is about a different variant/trim than selected.

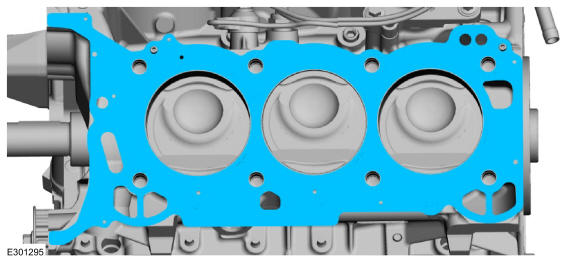

Install a new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
- Install the cylinder head.
- Install new cylinder head bolts.
  Torque: Stage 1: 177 lb.in (20 Nm) - Stage 2: Loosen: 2 turn(s) - Stage 3: 37 lb.ft (50 Nm) - Stage 4: 180°

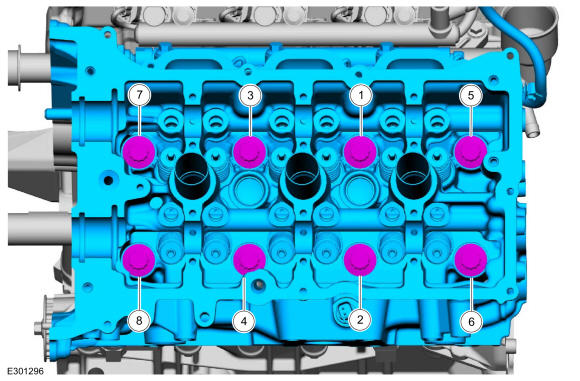

Fig 1: LH Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new component is installed.

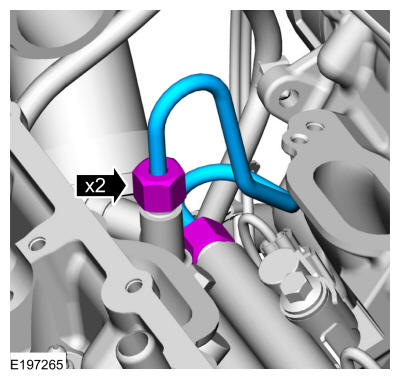

Install a new fuel rail-to-fuel rail high-pressure fuel tube and finger tighten the flare nuts.
- Final tighten the flare nuts.
  Torque: Stage 1: 62 lb.in (7 Nm) - Stage 2: 89 lb.in (10 Nm) - Stage 3: 25°
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. LH side. Refer to: Cylinder Head to Coolant Outlet Connector Hose Assembly .
2. Refer to: Camshaft LH .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
Pressurize the fuel system. Refer to: Fuel System Pressure Release .
Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
