Crankshaft Pulley: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

Remove LH CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
Remove the accessory drive belt. Refer to: Accessory Drive Belt .
NOTE: If further disassembly of the engine will be performed, retain the original crankshaft pulley bolt for removing the crankshaft front seal, and if necessary, turning the crankshaft while the pulley is removed.

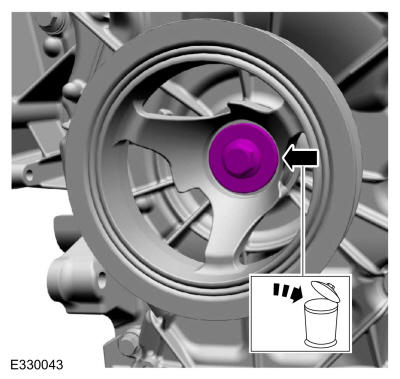

Remove and discard the crankshaft pulley bolt.

Courtesy of FORD MOTOR COMPANY
Using a universal puller, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller

Courtesy of FORD MOTOR COMPANY
