Crankshaft Front Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the crankshaft pulley. Refer to: Crankshaft Pulley .
  2. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

    1. Install the crankshaft pulley bolt.

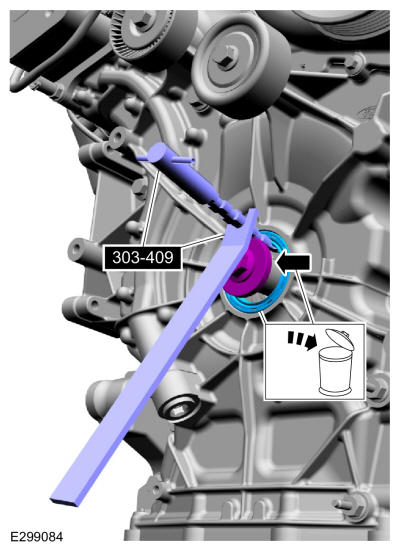

    2. Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    3. NOTE: If further disassembly of the engine will be performed, retain the original crankshaft pulley bolt for turning the crankshaft while the pulley is removed.

      Remove and discard the crankshaft pulley bolt.

GFD511098Courtesy of FORD MOTOR COMPANY
