Crankshaft Front Seal: Installation
WARNING: This page is about a different variant/trim than selected.
- Lubricate the engine front cover bore with clean engine oil.

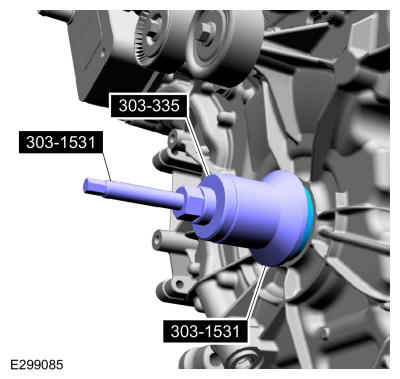

- Using the special tools, install the new crankshaft front oil seal. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-1531 Installer, Front Crank Seal and Damper.
- Install the crankshaft pulley. Refer to: Crankshaft Pulley .
