Engine Oil Draining and Filling: Filling
WARNING: This page is about a different variant/trim than selected.
- Install the underbody shield and the fasteners.
Torque: 22 lb.in (2.5 Nm)
-
NOTE: If the filter housing stem is damaged or missing the oil will flow through the reservoir drain port and a loss of engine oil pressure will occur.

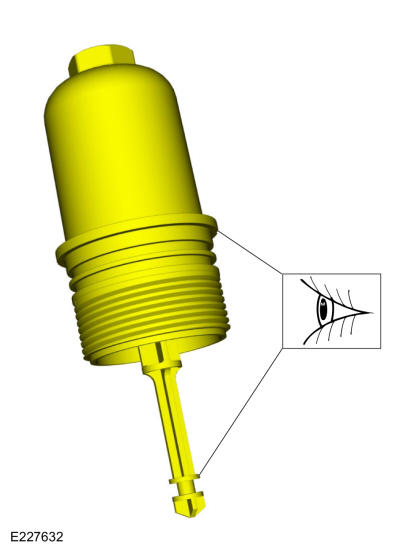

Inspect the oil filter housing and stem for damage including cracks or separation of the stem from the housing. If damaged, a new oil filter housing assembly must be installed.
-
-
NOTE: Failure to install new oil filter housing-to-engine front cover seals may result in oil leakage.

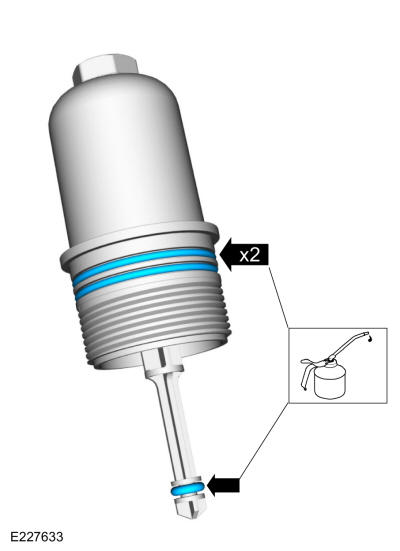

Install new oil filter housing-to-engine front cover seals and lubricate with clean engine oil.
-
NOTE: Failure to install a new oil filter housing stem-to-oil reservoir drain port seal will result with the oil flowing through the reservoir drain port and a loss of engine oil pressure.
Install a new oil filter housing stem-to-oil reservoir drain port seal and lubricate with clean engine oil.
-
-

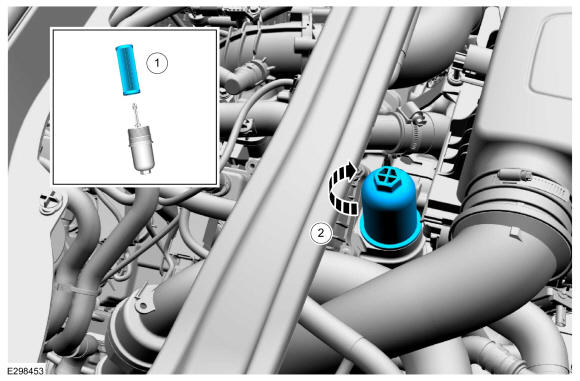

- Install a new oil filter element.
- Install the oil filter housing.
Torque: 18 lb.ft (24 Nm)
- Fill the engine with clean engine oil. Refer to: Specifications . .
