Variable Camshaft Timing (VCT) Unit: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Install new VCT unit bolts.

NOTE: Do not tighten the bolts at this time. The bolts will be tightened during the timing chain installation procedure.

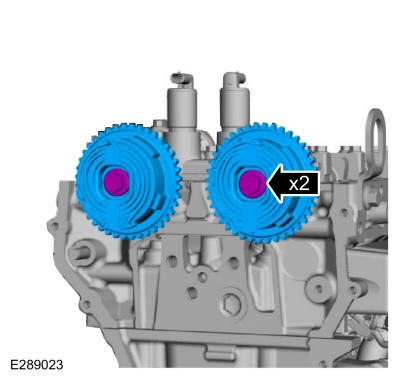

Install the exhaust and intake VCT units and the new bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Install the timing chain. Refer to: Timing Chain .
