Valve Cover: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  3. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.3L ECOBOOST (201KW 273PS) .
  4. Remove the bolts and the suspension support bar.
    GFD510466Courtesy of FORD MOTOR COMPANY
  5. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.

    1. Remove the engine appearance cover nuts.
    2. Place your hand under the engine appearance cover at the grommet location and push straight up to release the grommet from the stud.
    3. After the grommet has been released from the stud, remove the appearance cover from the engine.

    GFD510467Courtesy of FORD MOTOR COMPANY
  6. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  7. Remove the following items:

    1. Remove the cowl panel. Refer to: Cowl Panel .
    2. Remove the air cleaner. Refer to: Air Cleaner .

  8. Remove the oil level indicator.
    GFD510717Courtesy of FORD MOTOR COMPANY

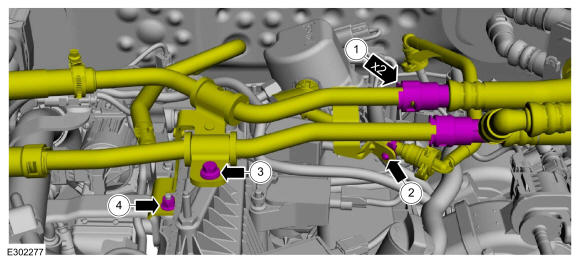

    1. Disconnect the coolant hoses from the coolant tubes.
    2. Detach the fuel tube retainer.
    3. Remove the coolant tube bolt.
    4. Remove the coolant tube nut and position the coolant tubes aside.
    GFD510718Courtesy of FORD MOTOR COMPANY
  10. Remove the following items:

    1. Remove the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .
    2. Remove the ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .

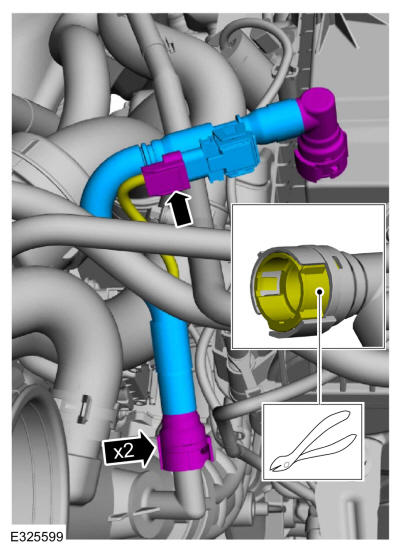

  11. NOTE: The crankcase vent tube may have either a permanent or quick connect connector at one or both ends. If the tube needs to be removed for any reason, the permanent connector(s) must be cut to remove the tube. The tube will then need to be replaced.
    NOTE: If the crankcase vent tube is replaced, the replacement part may not come with a crankcase pressure sensor. If so, the PCM will need to be reprogrammed.

    • If equipped, disconnect the wiring harness electrical connector.

    • If necessary, cut the lock tab. Use the General Equipment: Side Cutter Pliers

    • Remove the crankcase vent tube.

    • If either crankcase vent tube connector was cut, discard the crankcase vent tube.

    GFD510719Courtesy of FORD MOTOR COMPANY
    • Disconnect the wiring harness electrical connectors and retainer.

    • Detach the HO2S electrical connector from the bracket.

    GFD510720Courtesy of FORD MOTOR COMPANY
    1. Remove the EGR valve bracket nut.
    2. Remove the bolt and the EGR valve bracket.
    GFD510640Courtesy of FORD MOTOR COMPANY
    1. Remove the coolant tube support bracket bolt.
    2. Remove the bolt and the coolant tube support bracket.
    GFD510721Courtesy of FORD MOTOR COMPANY
  15. Remove the bolts and position the coolant tube.
    GFD510722Courtesy of FORD MOTOR COMPANY
  16. Inspect the coolant tube O-ring seal and replace if damaged.
    GFD510642Courtesy of FORD MOTOR COMPANY
  17. Disconnect the CHT sensor wiring harness electrical connector and detach the retainers.
    GFD510723Courtesy of FORD MOTOR COMPANY
    • Disconnect the wiring harness electrical connectors.

    • Detach the wiring harness retainers.

    • Position the wiring harness aside.

    GFD510724Courtesy of FORD MOTOR COMPANY

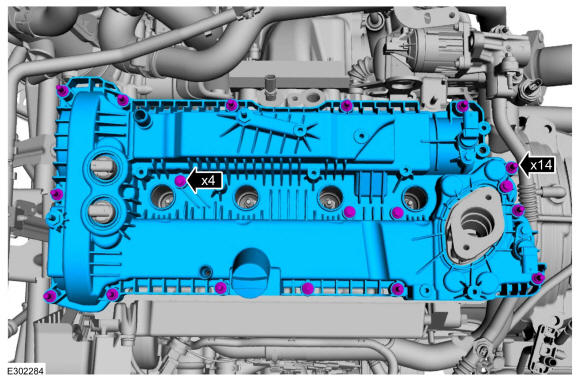

  19. Loosen the fasteners and remove the valve cover.
    GFD510725Courtesy of FORD MOTOR COMPANY
  20. Remove and discard the valve cover gaskets.
    GFD510658Courtesy of FORD MOTOR COMPANY
  21. NOTE: The VCT solenoid seals should only be replaced if they are damaged.

    • Inspect the VCT oil control solenoid seals for damage.

    • If damaged, using the special tools, remove and discard the VCT oil control solenoid seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1687 Installer, VCT Solenoid Seal.

    GFD510659Courtesy of FORD MOTOR COMPANY
  22. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD510660Courtesy of FORD MOTOR COMPANY

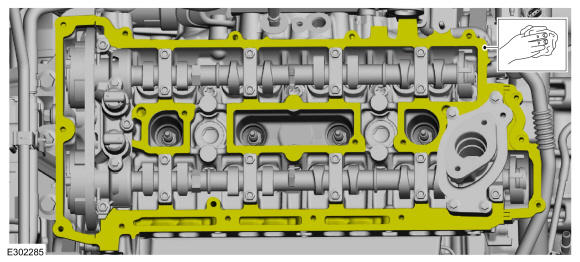

  23. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

GFD510726Courtesy of FORD MOTOR COMPANY
