Oil Pan: Removal

WARNING: This page is about a different variant/trim than selected.

LHD AWD/LHD RWD

NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. Remove the engine. Refer to: Engine .
    • Remove the bolts and the flexplate.

    • Discard the bolts.

    GFD510604Courtesy of FORD MOTOR COMPANY
  3. Install engine on the mounting stand. Use the General Equipment: Mounting Stand
    GFD510630Courtesy of FORD MOTOR COMPANY
  4. Remove the engine lift equipment.
    GFD510631Courtesy of FORD MOTOR COMPANY
  5. Cut and discard the A/C belt.
    GFD510632Courtesy of FORD MOTOR COMPANY
  6. Loosen the coolant pump pulley bolts.
    GFD510633Courtesy of FORD MOTOR COMPANY
    1. Install the tool and release the tension on the accessory drive belt tensioner.
    2. Remove the accessory drive belt.
    3. Release the tension and remove the tool.
    GFD510634Courtesy of FORD MOTOR COMPANY
    • Disconnect the wiring harness electrical connectors.

    • Detach the wiring harness retainers.

    GFD510635Courtesy of FORD MOTOR COMPANY

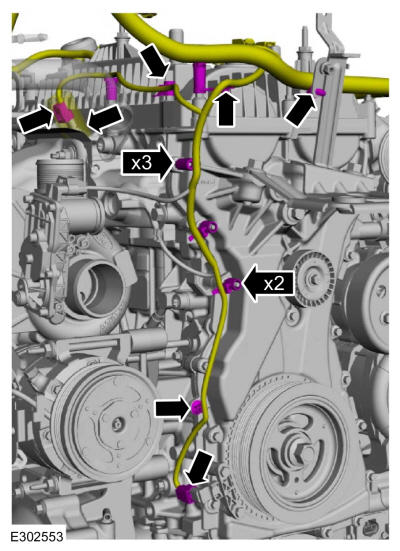

    • Disconnect the wiring harness electrical connectors.

    • Detach the wiring harness retainers.

    GFD510636Courtesy of FORD MOTOR COMPANY

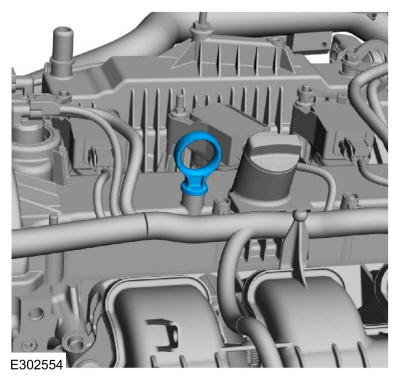

  10. Remove the oil level indicator.
    GFD510637Courtesy of FORD MOTOR COMPANY
    • Disconnect the wiring harness electrical connectors.

    • Detach the wiring harness retainers.

    GFD510638Courtesy of FORD MOTOR COMPANY
    1. Remove the coolant tube support bracket bolt.
    2. Remove the bolt and the coolant tube support bracket.
    GFD510639Courtesy of FORD MOTOR COMPANY
    1. Remove the EGR valve bracket nut.
    2. Remove the bolt and the EGR valve bracket.
    GFD510640Courtesy of FORD MOTOR COMPANY
  14. Remove the bolts and the coolant tube.
    GFD510641Courtesy of FORD MOTOR COMPANY
  15. Inspect the coolant tube O-ring seal and replace if damaged.
    GFD510642Courtesy of FORD MOTOR COMPANY
  16. Remove the bolts and the air cleaner bracket.
    GFD510643Courtesy of FORD MOTOR COMPANY
  17. Remove the bolts and the coolant pump pulley.
    GFD510644Courtesy of FORD MOTOR COMPANY
  18. Remove the bolts and the accessory drive belt tensioner.
    GFD510645Courtesy of FORD MOTOR COMPANY

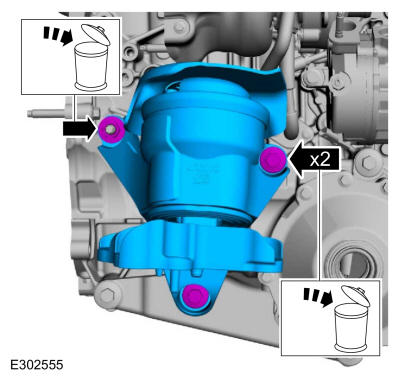

    • Remove the nut, bolts and the RH engine mount.

    • Discard the nut and bolts.

    GFD510646Courtesy of FORD MOTOR COMPANY

    LHD AWD

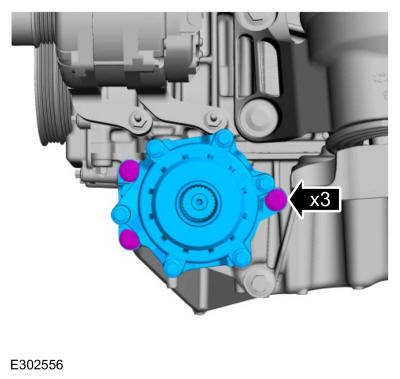

  20. Remove the bolts and the LH axle connector.
    GFD510647Courtesy of FORD MOTOR COMPANY
  21. Remove and discard the axle connector seal.
    GFD510648Courtesy of FORD MOTOR COMPANY
  22. Remove the bolts and the front axle assembly.
    GFD510649Courtesy of FORD MOTOR COMPANY
  23. Remove and discard the front axle assembly seal.
    GFD510650Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD RWD

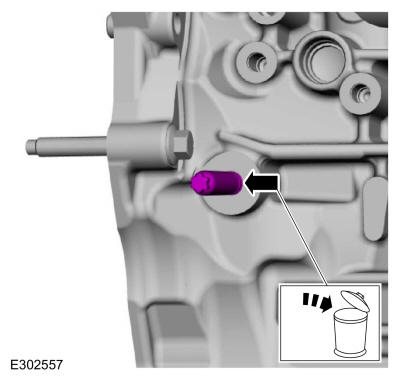

  24. Remove and discard the engine mount stud.
    GFD510651Courtesy of FORD MOTOR COMPANY
  25. NOTE: To release the fuel pressure in the high pressure fuel tube, wrap the fuel injection pump flare nut with a shop towel to absorb any residual fuel pressure during the loosening of the fuel injection pump flare nut.

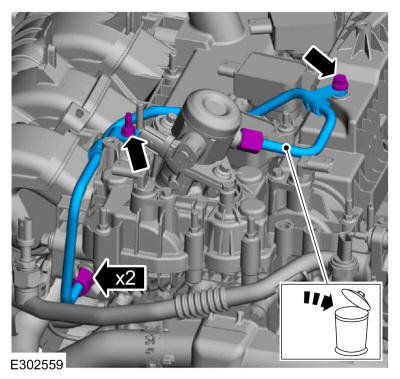

    • Remove the high-pressure fuel tube bolts.

    • Loosen the flare nuts, remove and discard the high-pressure fuel tube.

    GFD510652Courtesy of FORD MOTOR COMPANY

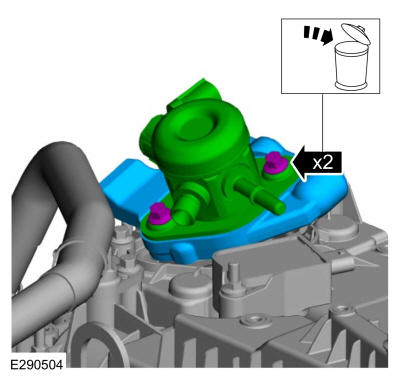

    • Remove and discard the bolts.

    • Remove the high-pressure fuel pump and the mounting plate.

    GFD510653Courtesy of FORD MOTOR COMPANY
  27. Remove and discard the high-pressure fuel pump O-ring seal.
    GFD510654Courtesy of FORD MOTOR COMPANY

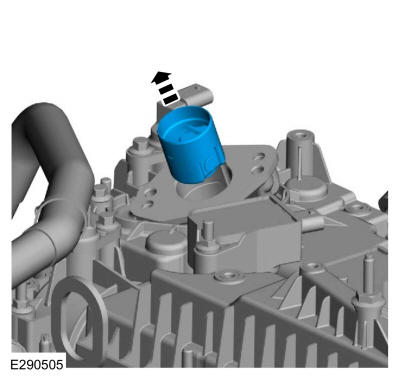

  28. Remove the high-pressure fuel pump tappet.
    GFD510655Courtesy of FORD MOTOR COMPANY
  29. NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
    NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

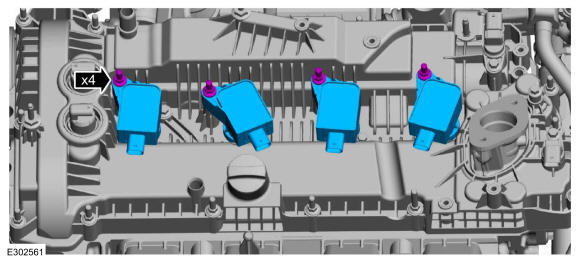

    Remove the stud bolts and the ignition coil-on-plugs.

    GFD510656Courtesy of FORD MOTOR COMPANY

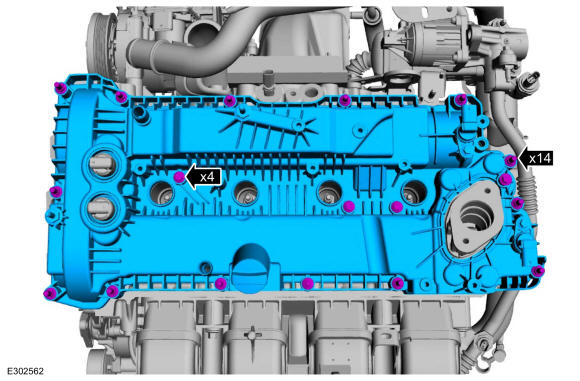

  30. Loosen the fasteners and remove the valve cover.
    GFD510657Courtesy of FORD MOTOR COMPANY
  31. Remove and discard the valve cover gaskets.
    GFD510658Courtesy of FORD MOTOR COMPANY
  32. NOTE: The VCT solenoid seals should only be replaced if they are damaged.

    • Inspect the VCT oil control solenoid seals for damage.

    • If damaged, using the special tools, remove and discard the VCT oil control solenoid seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1687 Installer, VCT Solenoid Seal.

    GFD510659Courtesy of FORD MOTOR COMPANY

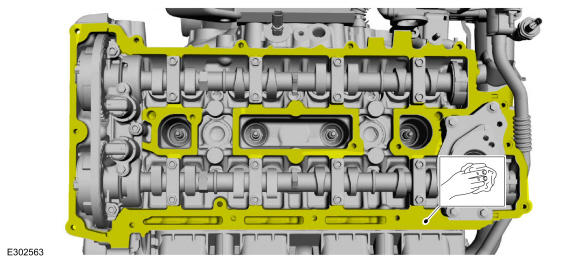

  33. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD510660Courtesy of FORD MOTOR COMPANY
  34. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD510661Courtesy of FORD MOTOR COMPANY

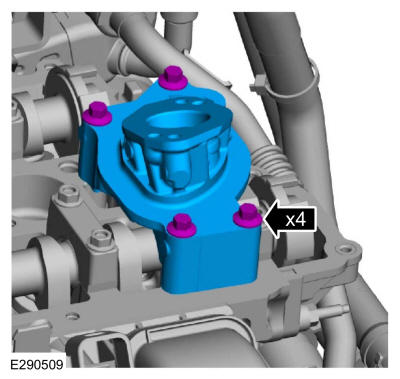

  35. Remove the bolts and the high-pressure fuel pump drive unit.
    GFD510662Courtesy of FORD MOTOR COMPANY

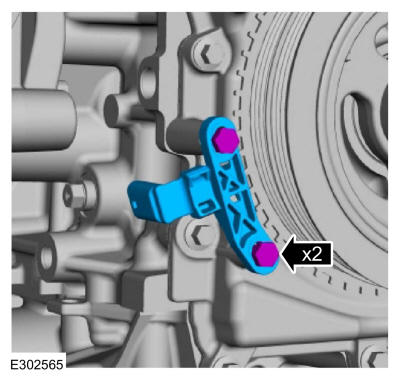

  36. Remove the bolts and the CKP sensor.
    GFD510663Courtesy of FORD MOTOR COMPANY
  37. Turn the crankshaft clockwise until the No. 1 piston is 45 degrees BTDC using the guide holes on the engine front cover and the crankshaft pulley.
    GFD510664Courtesy of FORD MOTOR COMPANY
  38. Remove the engine plug bolt.
    GFD510473Courtesy of FORD MOTOR COMPANY
  39. Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
    GFD510448Courtesy of FORD MOTOR COMPANY
  40. NOTE: The Crankshaft TDC Timing Peg will contact the crankshaft and prevent it from turning past TDC. However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC position during the crankshaft pulley removal and installation.
    NOTE: The engine front cover is removed from graphic for clarity.

    Rotate the crankshaft clockwise until the contacts the special tool. Use Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    GFD510474Courtesy of FORD MOTOR COMPANY
  41. NOTE: The Camshaft Alignment Tool is for camshaft Alignment only. Using this tool to prevent engine rotation can result in engine damage.
    NOTE: The camshaft timing slots are offset. If the Camshaft Alignment Tool cannot be installed, remove the TDC Timing Peg and rotate the crankshaft three-fourths of a revolution clockwise and repeat the previous 2 steps of this procedure.

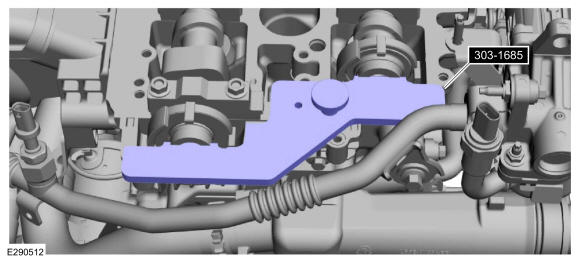

    Install Special Service Tool: 303-1685 Alignment Tool, Camshaft.

    GFD510665Courtesy of FORD MOTOR COMPANY

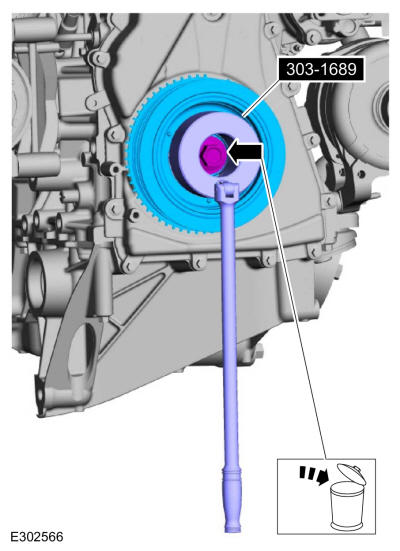

  42. NOTE: The crankshaft must remain in the TDC position during removal of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crank Damper Holding Tool and the bolt should be removed using an air impact wrench (1/2-in drive minimum).

    • Using the special tool, remove the bolt, washer and the crankshaft pulley. Use Special Service Tool: 303-1689 Holding Tool, Crank Damper.

    • NOTE: Retain the original crankshaft pulley bolt to use for the removal of the crankshaft front seal.

      Discard the bolt.

    GFD510666Courtesy of FORD MOTOR COMPANY
  43. Install the old crankshaft pulley bolt.
    GFD510459Courtesy of FORD MOTOR COMPANY
  44. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

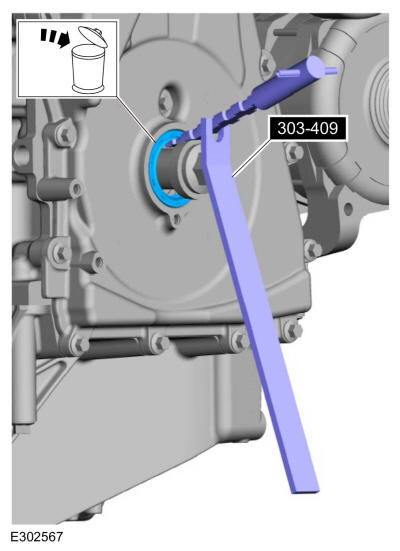

    Using the special tool, remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

    GFD510667Courtesy of FORD MOTOR COMPANY
  45. NOTE: If necessary, retain the original crankshaft pulley bolt to use in other procedures.

    Remove and discard the crankshaft pulley bolt.

    GFD510461Courtesy of FORD MOTOR COMPANY

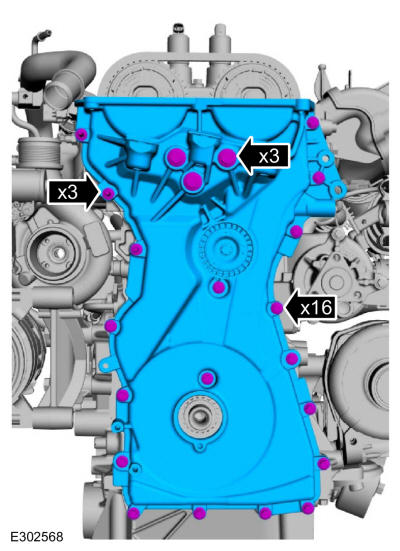

  46. Remove the fasteners and the engine front cover.
    GFD510668Courtesy of FORD MOTOR COMPANY
  47. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD510531Courtesy of FORD MOTOR COMPANY
  48. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD510669Courtesy of FORD MOTOR COMPANY

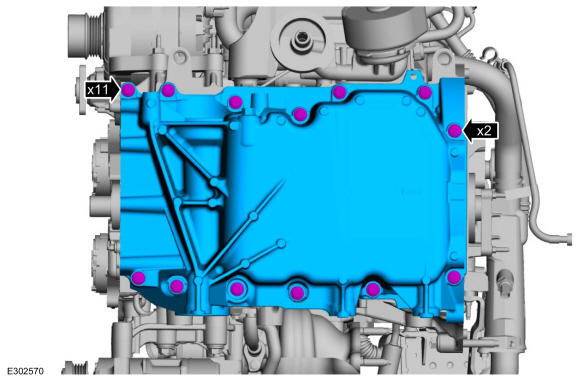

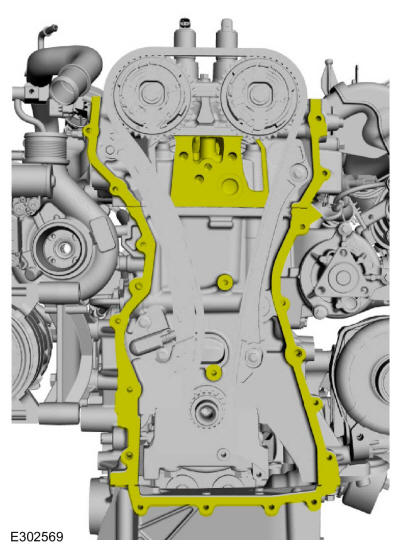

  49. NOTE: Do not strike the oil pan sideways to remove, the oil pan is doweled and will damage the oil pan and engine block.

    Remove the bolts and the oil pan.

    GFD510670Courtesy of FORD MOTOR COMPANY

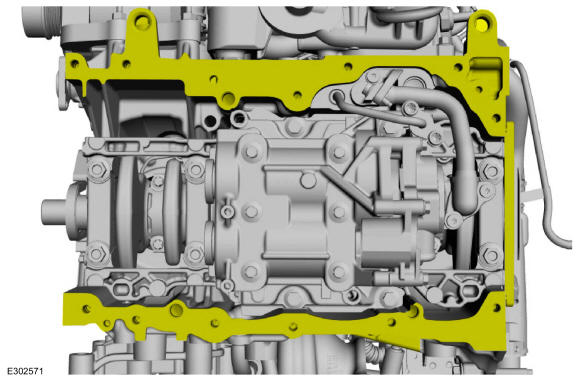

  50. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD510671Courtesy of FORD MOTOR COMPANY
  51. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD510672Courtesy of FORD MOTOR COMPANY
