Oil Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

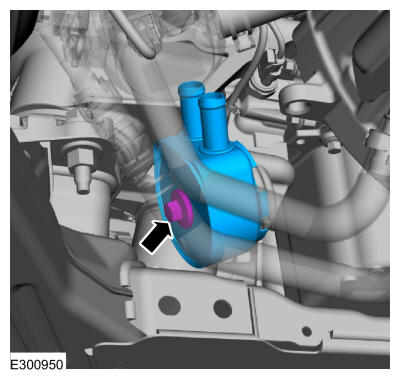

Install the oil cooler and the bolt.
Torque: Stage 1: 17 lb.ft (22.5 Nm) - - Stage 2: 75° - - Stage 3: Wait 2s - - Stage 4: 15°

Courtesy of FORD MOTOR COMPANY

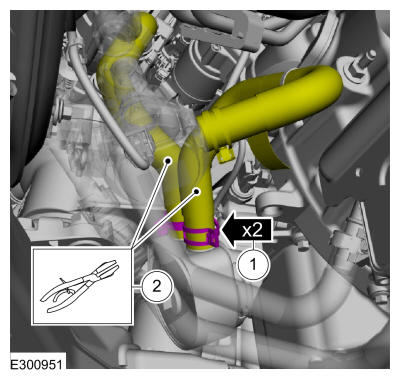

1. Using the hose clamp installer, install the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
2. Remove the hose locking pliers.
Courtesy of FORD MOTOR COMPANY
Install the rear underbody shield, bolts and the pin-type retainers.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect and adjust the engine coolant level. Refer to: Specifications .
