Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

Inspect the turbocharger or engine air intake system components and clean, if necessary.
Install the intake manifold and attach the KS electrical connector retainers.

Courtesy of FORD MOTOR COMPANY

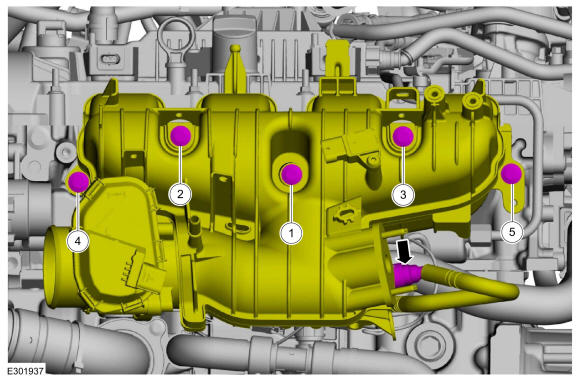

- Position the intake manifold and install the bolts and tighten in sequence shown.
  Torque: 18 lb.ft (25 Nm)
- Connect the crankcase vent oil separator tube quick release coupling to the intake manifold. Refer to: QUICK RELEASE COUPLING - 2.3L .
Fig 1: Intake Manifold Tightening Sequence
Courtesy of FORD MOTOR COMPANY

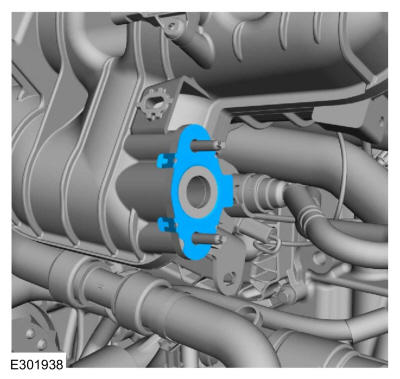

Install a new EGR inlet tube assembly gasket.

Courtesy of FORD MOTOR COMPANY

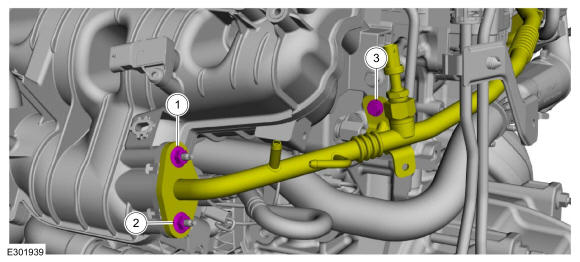

Position the EGR inlet tube assembly to intake manifold and install the nuts and bolt and tighten in sequence shown.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Attach the coolant hose retainer to the bottom of intake manifold.

Courtesy of FORD MOTOR COMPANY
- Install the EGR transducer assembly and the bolt.
  Torque: 97 lb.in (11 Nm)
- Install the EGR transducer hoses.
Courtesy of FORD MOTOR COMPANY
If equipped, attach the block heater wiring harness retainer to the intake manifold.

Courtesy of FORD MOTOR COMPANY
Attach the fuel rail wiring harness retainer to the intake manifold.

Courtesy of FORD MOTOR COMPANY
- Connect the wiring harness electrical connectors.
- Attach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
Position the ground wire and install the bolt and attach the retainers.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Install the shield and the bolt (Enhanced Hexalobular or TORX PLUS ® Acument Intellectual Properties, LLC as the owner).
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Position the CAC tube clamp and tighten the clamp.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Position the coolant hose and bracket and install the bolt.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Install the EVAP canister tube and connect the quick release coupling to the intake manifold. Refer to: QUICK RELEASE COUPLING - 2.3L .

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the EVAP canister purge valve. Refer to: Evaporative Emission Canister Purge Valve .
2. Install the cowl panel. Refer to: Cowl Panel .
Connect the battery ground. Refer to: BATTERY CABLES - 2.3L ECOBOOST (201KW 273PS) .
1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

  Lubricate each grommet with silicone grease.

  Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
2. Position the engine appearance cover onto engine with the grommet aligned with the stud.
3. Press down on the engine appearance cover at the grommet location to attach the grommet onto the stud and install the nuts.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
Install the suspension support bar and the bolts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
