Engine Mount RH: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: AWD shown, RWD similar.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Using a holding device, hold the steering wheel.
    GFD510539Courtesy of FORD MOTOR COMPANY
  3. Remove the bolts and the suspension support bar.
    GFD510466Courtesy of FORD MOTOR COMPANY
  4. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.

    1. Remove the engine appearance cover nuts.
    2. Place your hand under the engine appearance cover at the grommet location and push straight up to release the grommet from the stud.
    3. After the grommet has been released from the stud, remove the appearance cover from the engine.

    GFD510467Courtesy of FORD MOTOR COMPANY
  5. Remove the cowl panel. Refer to: Cowl Panel .
  6. Remove the catalytic converter. Refer to: Catalytic Converter .
    • Remove the bolt and disconnect the steering shaft.

    • Discard the bolt.

    GFD510540Courtesy of FORD MOTOR COMPANY
  8. If equipped, remove the retainers and the upper radiator panel.
    GFD510541Courtesy of FORD MOTOR COMPANY
  9. Using cable ties or mechanics wire through the upper location holes, to support the cooling module. Use the General Equipment: Cable Ties
    GFD510542Courtesy of FORD MOTOR COMPANY
  10. Remove the bolt (Enhanced Hexalobular or TORX PLUS ® Acument Intellectual Properties, LLC as the owner) and the shield.
    GFD510543Courtesy of FORD MOTOR COMPANY
  11. Detach the retainers, remove the bolt and position the ground wire aside.
    GFD510544Courtesy of FORD MOTOR COMPANY
  12. Using the ground wire bolt, install the special tool. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD510545Courtesy of FORD MOTOR COMPANY
  13. NOTE: Make sure to use the round feet on the shock towers or damage may occur.

    Install Special Service Tool: 303-F072 Support Bar, Engine.

    GFD510546Courtesy of FORD MOTOR COMPANY
  14. Remove the LH and RH front wheels and tires. Refer to: Wheel and Tire .
  15. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the LH sway bar link aside.

    GFD510547Courtesy of FORD MOTOR COMPANY
  16. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the RH sway bar link aside.

    GFD510548Courtesy of FORD MOTOR COMPANY
    • Remove pin-type retainer.

    • Remove the bolts and the underbody shield.

    GFD510549Courtesy of FORD MOTOR COMPANY
  18. Remove the pin-type retainers, bolts and the rear underbody shield.
    GFD510498Courtesy of FORD MOTOR COMPANY
  19. If equipped, remove the steering shield pin-type retainers from the RH subframe.
    GFD510552Courtesy of FORD MOTOR COMPANY
  20. Remove the splash shield pin-type retainer from the RH subframe.
    GFD510553Courtesy of FORD MOTOR COMPANY
  21. Detach the HO2S wiring harness retainers from the RH subframe.
    GFD510585Courtesy of FORD MOTOR COMPANY
  22. If equipped, remove the steering shield pin-type retainers from the LH subframe.
    GFD510555Courtesy of FORD MOTOR COMPANY
  23. Remove the splash shield pin-type retainer from the LH subframe and position aside.
    GFD510556Courtesy of FORD MOTOR COMPANY

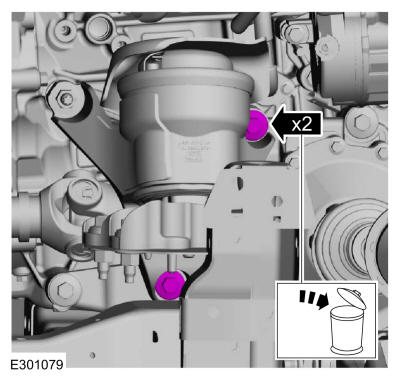

  24. Remove and discard the RH engine mount bolts.
    GFD510586Courtesy of FORD MOTOR COMPANY

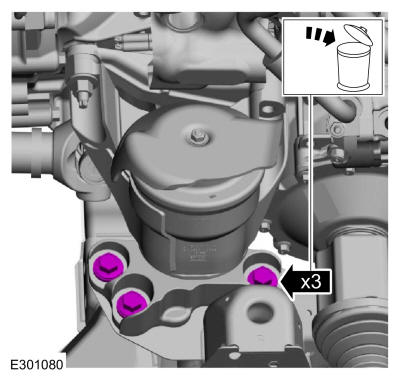

  25. Remove and discard the RH engine mount bolts.
    GFD510587Courtesy of FORD MOTOR COMPANY
  26. Remove the front radiator support bar bolts.
    GFD510559Courtesy of FORD MOTOR COMPANY
  27. Detach the coolant tube retainers from the front of the subframe.
    GFD510560Courtesy of FORD MOTOR COMPANY
  28. Remove the bolt and position the RH underbody shield aside.
    GFD510561Courtesy of FORD MOTOR COMPANY
  29. Remove the bolt and position the LH underbody shield aside.
    GFD510562Courtesy of FORD MOTOR COMPANY
  30. Mark the front subframe location.
    GFD510563Courtesy of FORD MOTOR COMPANY
  31. Mark the rear subframe location.
    GFD510564Courtesy of FORD MOTOR COMPANY
  32. Support the front and rear of the subframe with adjustable jack stands.
    GFD510565Courtesy of FORD MOTOR COMPANY

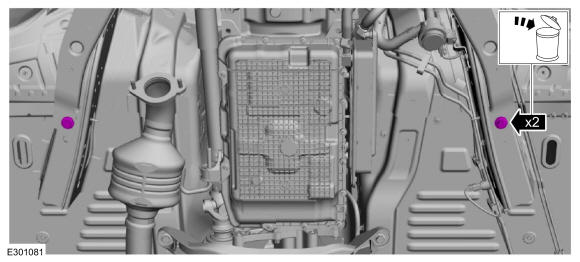

    • Remove the rear subframe bolts.

    • Discard the bolts.

    GFD510588Courtesy of FORD MOTOR COMPANY
    • Remove the middle subframe bolts.

    • Discard the bolts.

    GFD510589Courtesy of FORD MOTOR COMPANY

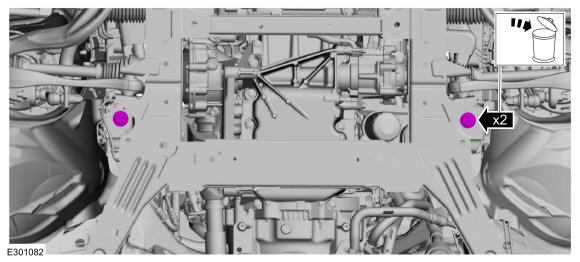

    • Remove the front subframe bolts.

    • Discard the bolts.

    GFD510568Courtesy of FORD MOTOR COMPANY
  36. With the aid of an assistant, lower the front jack stand 76.2 mm (3.0 in) and the rear jack stand 177.8 mm (7.0 in) evenly or until engine mount stud clears the subframe.
    GFD510569Courtesy of FORD MOTOR COMPANY

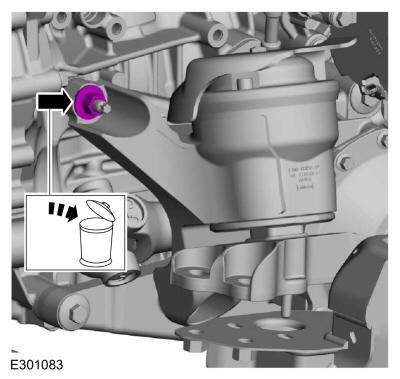

  37. Remove and discard the RH engine mount nut.
    GFD510590Courtesy of FORD MOTOR COMPANY

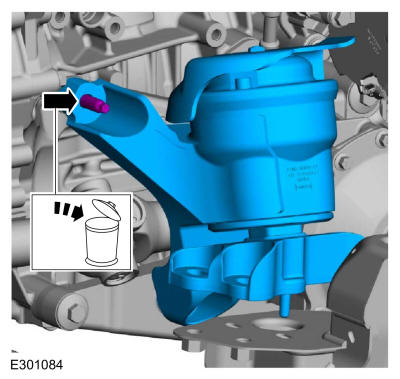

    • Remove and discard the RH engine mount stud.

    • Remove the RH engine mount.

GFD510591Courtesy of FORD MOTOR COMPANY
