Engine Mount RH: Installation

WARNING: This page is about a different variant/trim than selected.

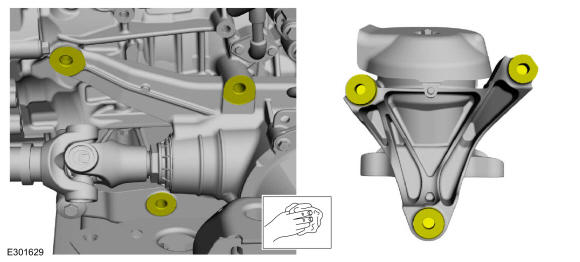

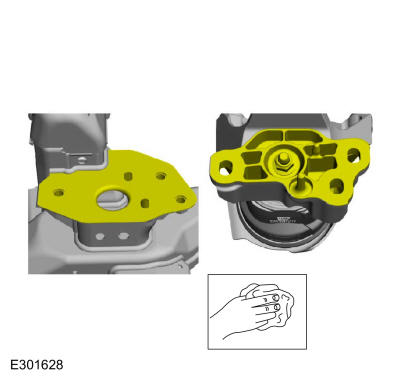

Clean the RH engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

Courtesy of FORD MOTOR COMPANY
Clean the RH engine mount-to-engine block mating surfaces of any dirt or foreign material prior to installation.

Courtesy of FORD MOTOR COMPANY

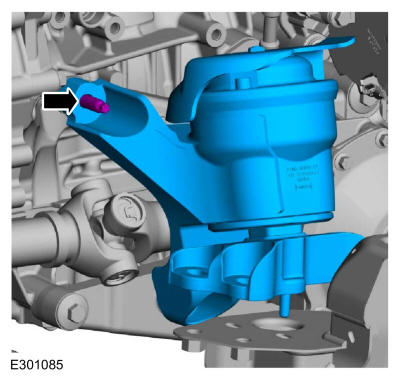

- Install the RH engine mount.
- Install the new RH engine mount stud.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY

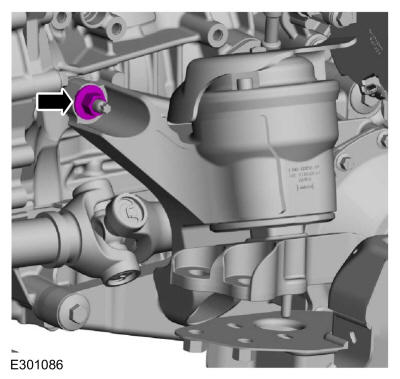

Install the new RH engine mount nut finger tight.

Courtesy of FORD MOTOR COMPANY

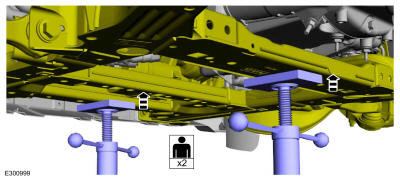

With the aid of an assistant, raise the front and rear jack stand evenly.

Courtesy of FORD MOTOR COMPANY

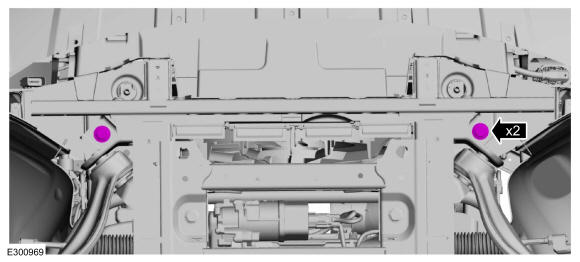

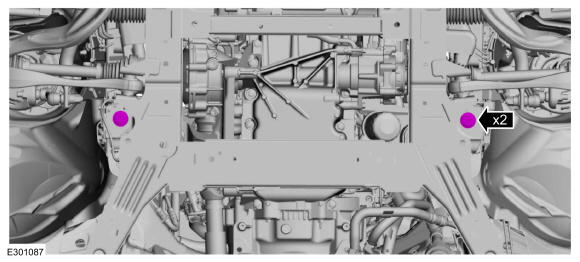

Install the new front subframe bolts finger tight.

Courtesy of FORD MOTOR COMPANY

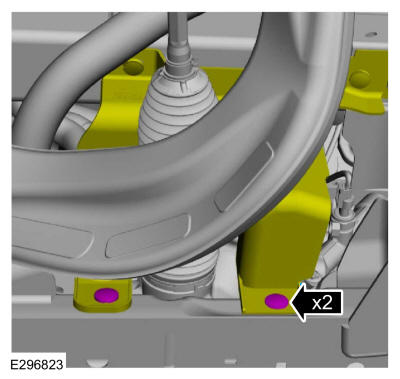

Install the new middle subframe bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Install the new rear subframe bolts finger tight.

Courtesy of FORD MOTOR COMPANY

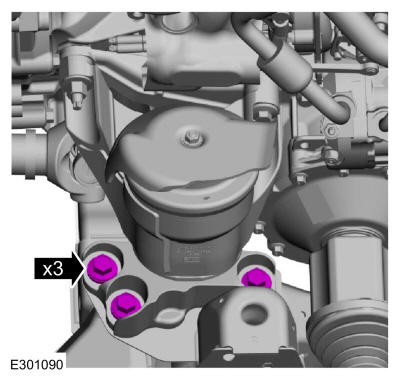

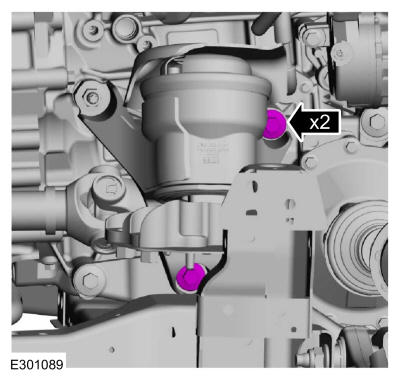

Install the new RH engine mount bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Install the new RH engine mount bolts finger tight.

Courtesy of FORD MOTOR COMPANY

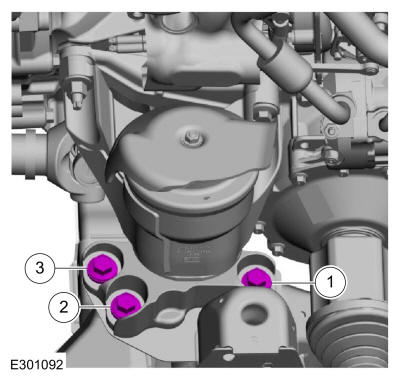

Tighten the RH engine mount bolts in sequence shown.
Torque: Stage 1: 66 lb.ft (90 Nm) - - Stage 2: 90°

Courtesy of FORD MOTOR COMPANY

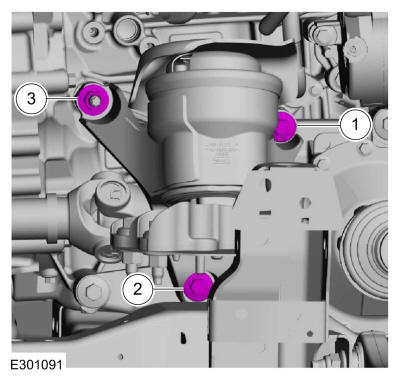

Tighten the RH engine mount bolts in sequence shown.
Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the front subframe bolts.
Torque: 195 lb.ft (265 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the middle subframe bolts.
Torque: 195 lb.ft (265 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the rear subframe bolts.
Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY

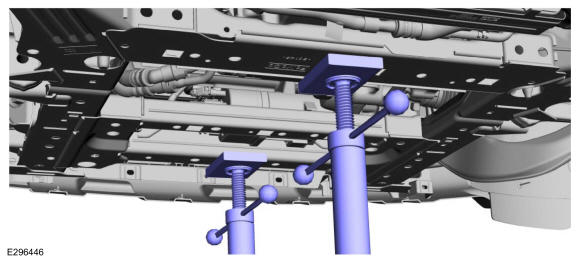

Remove adjustable jack stands.

Courtesy of FORD MOTOR COMPANY

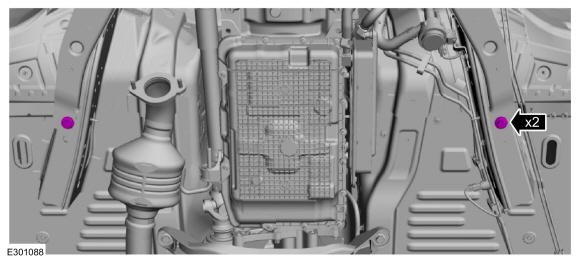

Position the LH underbody shield and install the bolt.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Position the RH underbody shield and install the bolt.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Attach the coolant tube retainers to the front of the subframe.

Courtesy of FORD MOTOR COMPANY

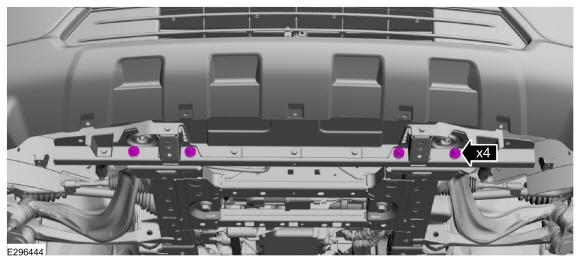

Install the front radiator support bar bolts.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Position the splash shield and install the pin-type retainer to the LH subframe.

Courtesy of FORD MOTOR COMPANY
Install the steering shield pin-type retainers to the LH subframe.

Courtesy of FORD MOTOR COMPANY

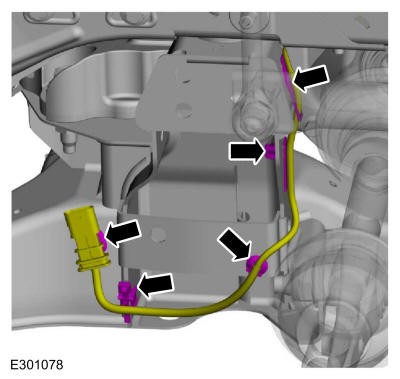

Attach the HO2S wiring harness retainers to the RH subframe.

Courtesy of FORD MOTOR COMPANY
Install the splash shield pin-type retainer to the RH subframe.

Courtesy of FORD MOTOR COMPANY
If equipped, install the steering shield pin-type retainers to the RH subframe.

Courtesy of FORD MOTOR COMPANY

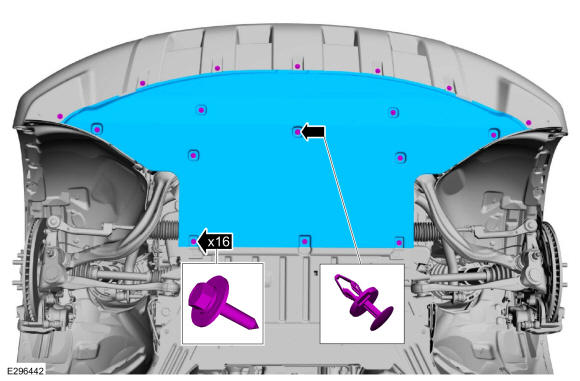

Install the rear underbody shield, bolts and the pin-type retainers.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
- Install the underbody shield and the bolts.
  Torque: 22 lb.in (2.5 Nm)
- Install pin-type retainer.
Courtesy of FORD MOTOR COMPANY
NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

Position the RH sway bar link and install the new nut.

Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

Position the LH sway bar link and install the new nut.

Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH and RH front wheels and tires. Refer to: Wheel and Tire .

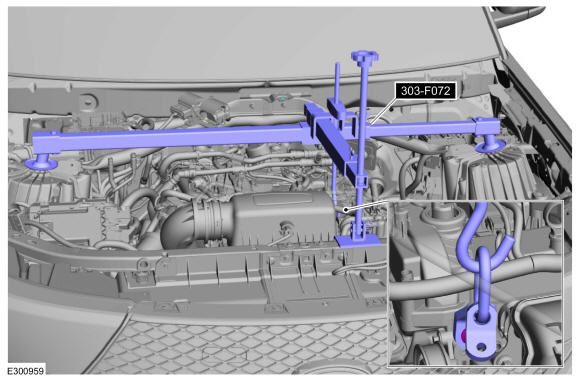

Remove Special Service Tool: 303-F072 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY
Position the ground wire and install the bolt and attach the retainers.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Install the shield and the bolt (Enhanced Hexalobular or TORX PLUS ® Acument Intellectual Properties, LLC as the owner).
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the radiator support cable ties or mechanics wire.

Courtesy of FORD MOTOR COMPANY

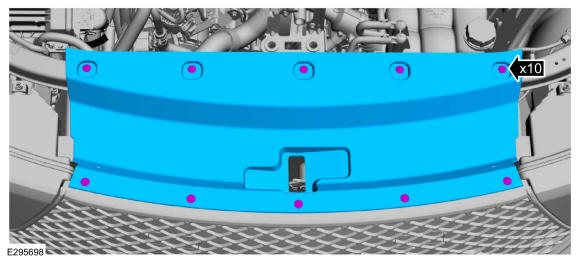

Install the upper radiator panel and the retainers.

Courtesy of FORD MOTOR COMPANY
Install the new steering shaft bolt.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Install the catalytic converter. Refer to: Catalytic Converter .
Install the cowl panel. Refer to: Cowl Panel .
1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

  Lubricate each grommet with silicone grease.

  Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
2. Position the engine appearance cover onto engine with the grommet aligned with the stud.
3. Press down on the engine appearance cover at the grommet location to attach the grommet onto the stud and install the nuts.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
Install the suspension support bar and the bolts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the holding device.

Courtesy of FORD MOTOR COMPANY
Start and check the exhaust system for leaks.
