Balance Shaft Backlash

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge
Courtesy of FORD MOTOR COMPANY	303-1688 Preload Tool, Balance Shaft
Courtesy of FORD MOTOR COMPANY	303-507 Timing Peg, Crankshaft TDC TKIT-2001N-FLM TKIT-2001N-ROW

Check

1. Install the special tool and rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the Crankshaft TDC Timing Peg. The engine is now at TDC. Use Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

   Courtesy of FORD MOTOR COMPANY

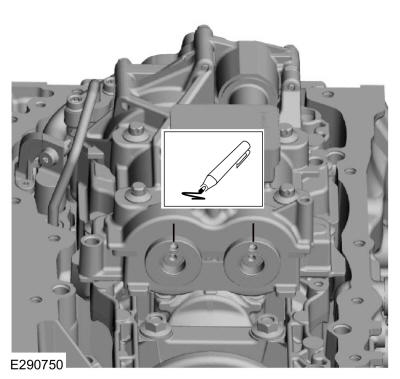

2. Mark the balancer unit and shafts on the top for reference that the balancer unit is at TDC.

   Courtesy of FORD MOTOR COMPANY

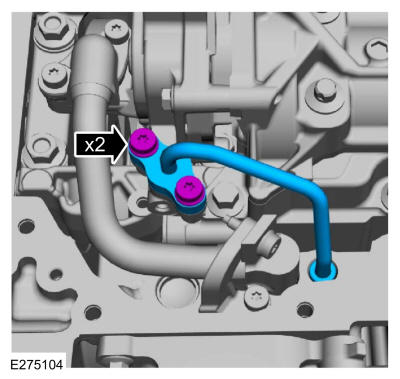

3. Remove the bolts and the oil outlet tube.

   Courtesy of FORD MOTOR COMPANY

4. Inspect the oil outlet tube O-ring seals and replace if damaged.

   Courtesy of FORD MOTOR COMPANY

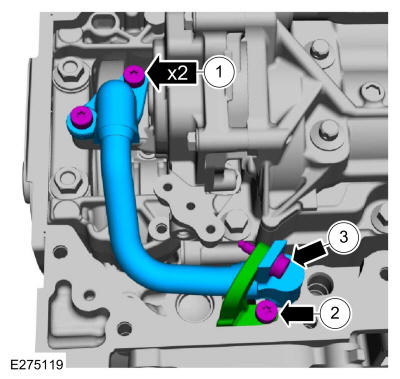

5. 1. Remove the oil inlet tube-to-bracket bolt.
   2. Remove the bolt and the oil inlet tube bracket.
   3. Remove the bolts and the oil inlet tube.

   Courtesy of FORD MOTOR COMPANY

6. Inspect the oil inlet tube O-ring seals and replace if damaged.

   Courtesy of FORD MOTOR COMPANY

7. NOTE: Due to the precision interior construction of the balancer unit, it should not be disassembled.

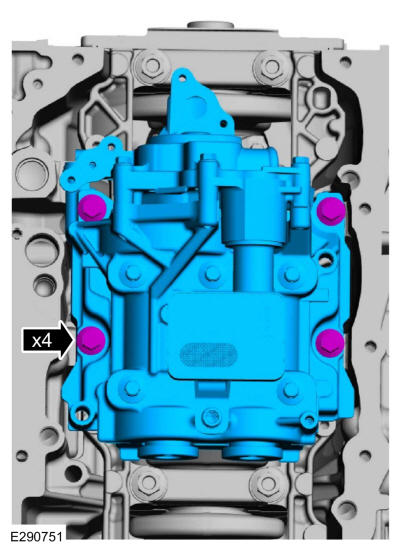

   Remove the bolts and the balance unit.

   Courtesy of FORD MOTOR COMPANY

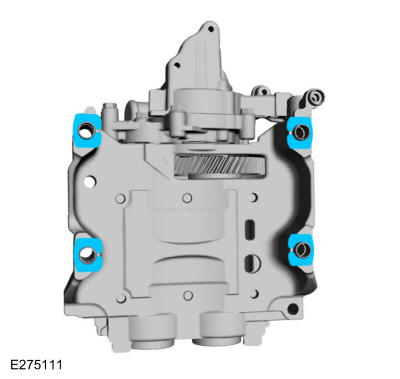

8. Remove the adjustment shims from the seat faces of the balancer unit.

   Courtesy of FORD MOTOR COMPANY

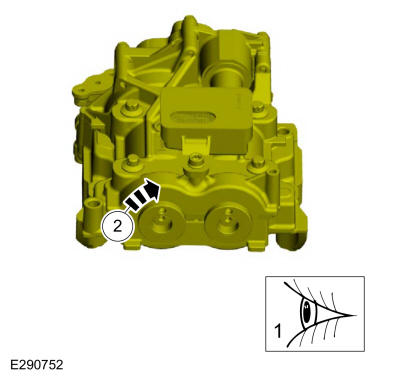

9. 1. Visually inspect the balancer unit gear for damage.
   2. Verify that the shaft turns smoothly.
   • If there is any damage or malfunction, replace the balancer unit.

   Courtesy of FORD MOTOR COMPANY

10. Install the master adjustment shims No. 50 on the seat faces of the balancer unit.

    Courtesy of FORD MOTOR COMPANY

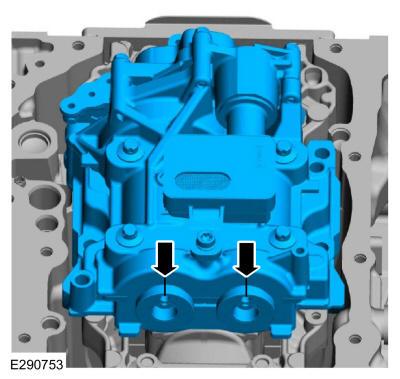

11. With the balancer unit shaft marks at the TDC position, slowly install the balancer unit to the cylinder block to avoid interference between the crankshaft drive gear and the balancer unit driven gear.

    Courtesy of FORD MOTOR COMPANY

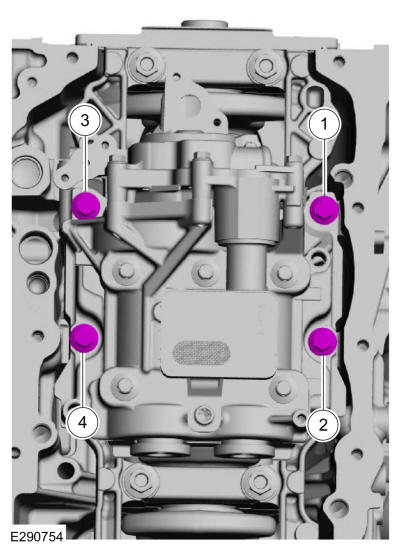

12. Install the bolts and tighten in sequence shown.

    Torque: Stage 1: 27 lb.ft (36 Nm) - - Stage 2: 60°

    Courtesy of FORD MOTOR COMPANY

13. Loosen the bolts.

    Courtesy of FORD MOTOR COMPANY

14. Tighten the bolts in sequence shown.

    Torque: Stage 1: 133 lb.in (15 Nm) - - Stage 2: 45°

    Courtesy of FORD MOTOR COMPANY

15. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

16. Rotate the crankshaft to confirm that there are no meshing problems between the balancer unit gear and the crankshaft gear.

    Courtesy of FORD MOTOR COMPANY

17. Install the special tool and rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the Crankshaft TDC Timing Peg. The engine is now at TDC. Use Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

18. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

19. NOTE: Measure the backlash and verify that it is within specified range at all of the following 6 positions: 10 degrees, 30 degrees, 100 degrees, 190 degrees, 210 degrees and 280 degrees. It will be necessary to reset the measuring equipment between measurements.
    NOTE: The measurement must be taken with the Dial Indicator Gauge with Holding Fixture, a 5-mm Allen wrench and worm clamp set up as shown.
    • NOTE: Make sure the worm clamp and Allen wrench are not touching the balance shaft housing.

      Install the 5-mm Allen wrench and tighten worm clamp as shown.

    • Mark the Allen wrench with a file 20 mm (0.79 in) above the driven gear top surface.
    • Install the balance shaft preload tool and bolts as shown. Use Special Service Tool: 303-1688 Preload Tool, Balance Shaft.
    • Install and position the dial indicator gauge with holding fixture on the Allen wrench 20 mm (0.79 in) as shown. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.
    • Rotate the crankshaft clockwise and measure the backlash at all of the following 6 positions: 10 degrees, 30 degrees, 100 degrees, 190 degrees, 210 degrees and 280 degrees.

    Courtesy of FORD MOTOR COMPANY

20. Using the backlash measurement, select the proper shims from the Adjustment Shim Selection Table.
    1. Backlash
    2. Selection shim (No.)
    3. Shim thickness

    Courtesy of FORD MOTOR COMPANY

21. Remove the bolts and the balance unit.

    Courtesy of FORD MOTOR COMPANY

22. Remove the master adjustment shims (No. 50) from the balancer unit.

    Courtesy of FORD MOTOR COMPANY

23. Install the selected adjustment shims on the seat faces of the balancer unit from the chart above.

    Courtesy of FORD MOTOR COMPANY

24. Install the special tool and rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the Crankshaft TDC Timing Peg. The engine is now at TDC. Use Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

25. With the balancer unit shaft marks at the TDC position, slowly install the balancer unit to the cylinder block to avoid interference between the crankshaft drive gear and the balancer unit driven gear.

    Courtesy of FORD MOTOR COMPANY

26. Install the bolts and tighten in sequence shown.

    Torque: Stage 1: 133 lb.in (15 Nm) - - Stage 2: 45°

    Courtesy of FORD MOTOR COMPANY

27. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

28. NOTE: Measure the backlash and verify that it is within specified range at all of the following 6 positions: 10 degrees, 30 degrees, 100 degrees, 190 degrees, 210 degrees and 280 degrees. It will be necessary to reset the measuring equipment between measurements.
    NOTE: The measurement must be taken with the Dial Indicator Gauge with Holding Fixture, a 5-mm Allen wrench and worm clamp set up as shown.
    • NOTE: Make sure the worm clamp and Allen wrench are not touching the balance shaft housing.

      Install the 5-mm Allen wrench and tighten worm clamp as shown.

    • Mark the Allen wrench with a file 20 mm (0.79 in) above the driven gear top surface.
    • Install the balance shaft preload tool and bolts as shown. Use Special Service Tool: 303-1688 Preload Tool, Balance Shaft.
    • Install and position the dial indicator gauge with holding fixture on the Allen wrench 20 mm (0.79 in) as shown. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.
    • Rotate the crankshaft clockwise and measure the backlash at all of the following 6 positions: 10 degrees, 30 degrees, 100 degrees, 190 degrees, 210 degrees and 280 degrees.
    • If the backlash exceeds the specified range of 0.040 to 0.140 mm (0.00157 to 0.0055 in), install a new balancer unit and repeat the procedure.

    Courtesy of FORD MOTOR COMPANY

29. Lubricate the oil inlet tube O-ring seals with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

30. 1. Install the oil inlet tube and the bolts.

       Torque: 97 lb.in (11 Nm)

    2. Install the oil inlet tube bracket and the bolt.

       Torque: 97 lb.in (11 Nm)

    3. Install the oil inlet tube-to-bracket bolt.

       Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

31. Lubricate the oil outlet tube O-ring seals with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

32. Install the oil outlet tube and the bolts.

    Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
