Turbocharger Bypass Valve: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Whenever turbocharger air intake system components are removed, always cover open ports to protect from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All components should be inspected and cleaned, if necessary, prior to installation or reassembly.

NOTE: Removal steps in this procedure may contain installation details.

Remove the air cleaner. Refer to: Air Cleaner .

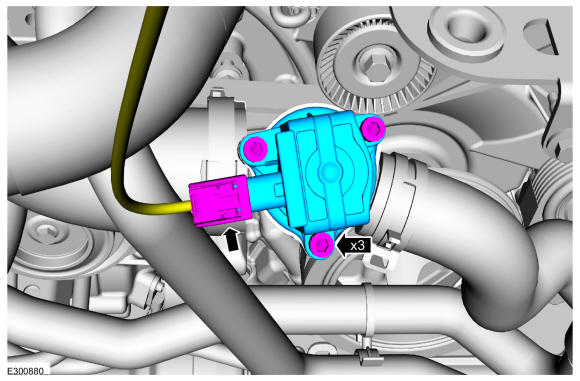

Disconnect the electrical connector. Remove the bolts and the turbocharger bypass valve.
Torque: 62 lb.in (7 Nm)
