Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the valve cover. Refer to: Valve Cover .

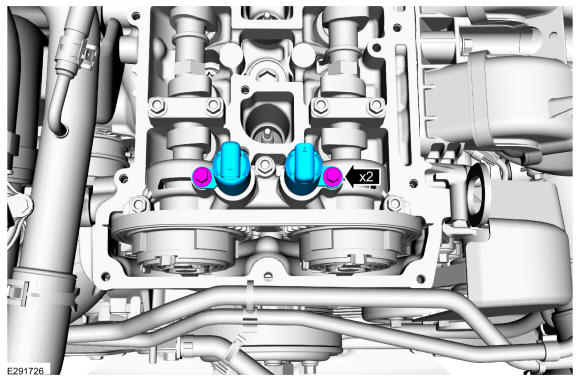

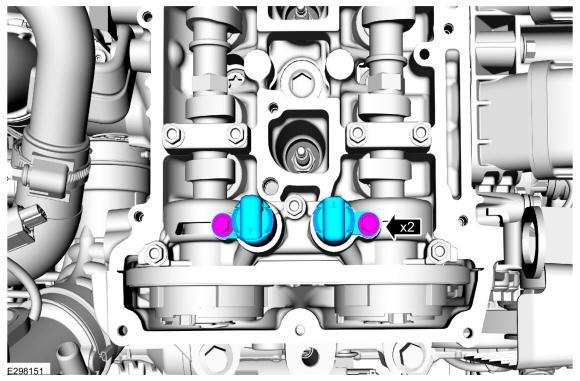

- Remove the bolts and the VCT oil control solenoids.
Torque: 97 lb.in (11 Nm)
