Turbocharger Bypass Valve: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the electrical connector and harness retainers.
    GFD513878Courtesy of FORD MOTOR COMPANY

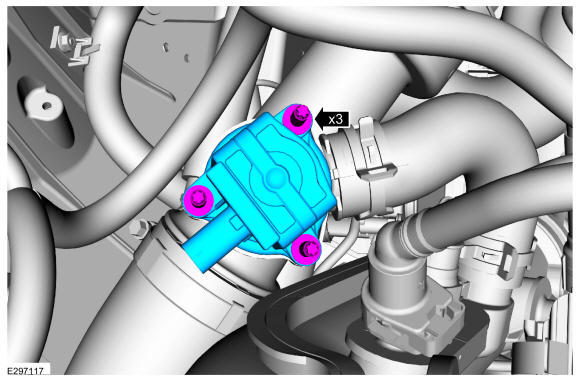

  2. Remove the bolts and the turbocharger bypass valve.

    Torque: 53 lb.in (6 Nm)

GFD513879Courtesy of FORD MOTOR COMPANY
