Oil Pressure Control Solenoid: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan can cause engine failure.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

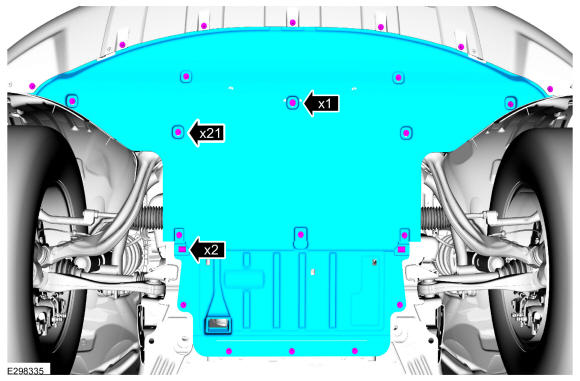

Remove the retainers and the underbody shields.

Courtesy of FORD MOTOR COMPANY

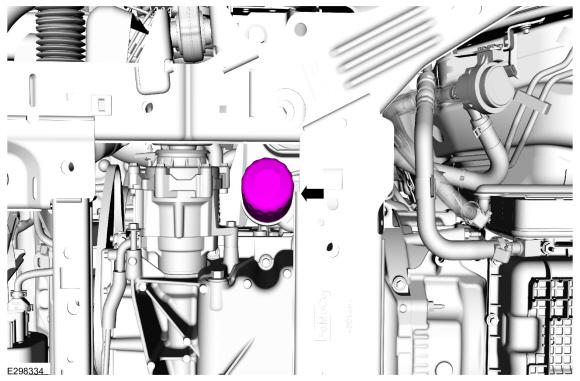

Remove the oil filter.

Courtesy of FORD MOTOR COMPANY

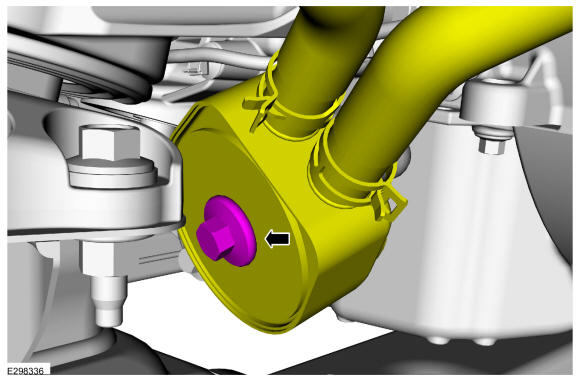

Remove the bolt from the oil cooler and position aside.
Torque: Stage 1: 17 lb.ft (22.5 Nm) - Stage 2: 75° - Stage 3: Wait 2s - Stage 4: 15°

Courtesy of FORD MOTOR COMPANY

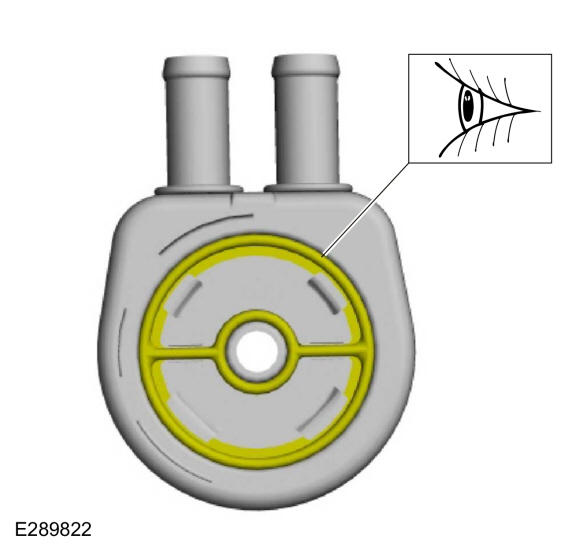

Inspect and replace the oil cooler gasket if damaged.

Courtesy of FORD MOTOR COMPANY

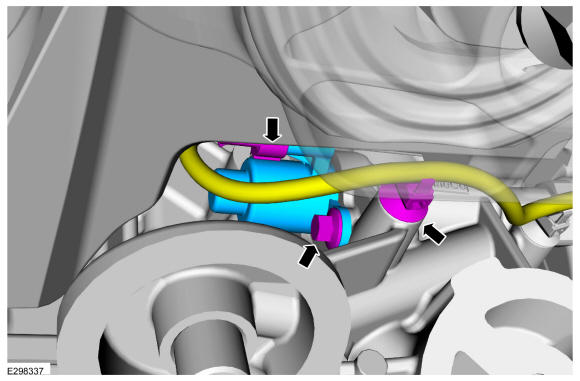

Disconnect the electrical connector and harness retainer. Remove the bolt and the oil pressure control solenoid.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
