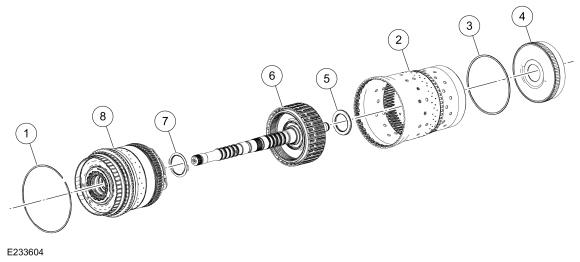

Clutch and planetary assembly
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7H579 | Planetary carrier No. 1 snap ring |
| 2 | 7B177 | Cylinder (clutch and planetary container) |
| 3 | 7B002 | Ring gear No. 4 snap ring |
| 4 | 7D163 | Ring gear No. 4 |
| 5 | 7M152 | Thrust bearing (T8) |
| 6 | -- | E clutch and input shaft assembly |
| 7 | 7F373 | Thrust bearing (T6) |
| 8 | -- | CDF clutch and planetary carrier assembly |
