CDF Clutch and planetary carrier assembly
WARNING: This page is about a different variant/trim than selected.

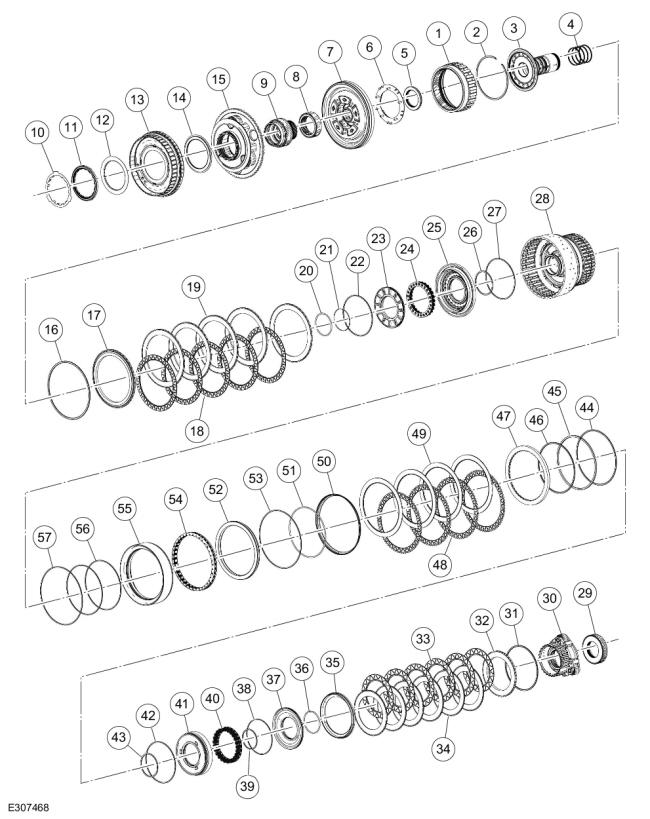

| Item | Part Number | Description |
|---|---|---|
| 1 | 7D392 | Ring gear No. 2 |
| 2 | 7H379 | Ring gear No. 2 snap ring |
| 3 | 7D159 | Shaft (sun gear No 3) |
| 4 | 7B399 | Shaft (sun gear No 3) Teflon® seals (4 required) |
| 5 | 7D283 | Thrust bearing (T5) |
| 6 | 7H578 | Fluid collector |
| 7 | 7A398 | Planetary carrier No. 2 |
| 8 | 7H580 | Sun gear No. 2 |
| 9 | 7G230 | Sun gear No. 1 |
| 10 | 1195 | Ring gear No. 1 bearing support locking ring |
| 11 | 7P074 | Ring gear No. 1 bearing support |
| 12 | 7C096 | Ring gear No. 1 bearing |
| 13 | 7P136 | Ring gear No. 1 |
| 14 | 7C096 | Ring gear No. 1 bearing |
| 15 | 7G218 | Planetary carrier No. 1 |
| 16 | 7H076 | C clutch (direct) snap ring |
| 17 | 7B477 | C clutch (direct) pressure plate |
| 18 | 7H095 | C clutch (direct) friction plates (quantity model dependent) |
| 19 | 7F238 | C clutch (direct) steel plates (quantity model dependent) |
| 20 | 7B492 | C clutch (direct) balance dam retainer |
| 21 | 7F234 | C clutch (direct) balance dam inner seal |
| 22 | 7C000 | C clutch (direct) balance dam outer seal |
| 23 | 7H359 | C clutch (direct) balance dam |
| 24 | 7B488 | C clutch (direct) piston return spring |
| 25 | 7C117 | C clutch (direct) piston |
| 26 | 7G444 | C clutch (direct) piston inner seal |
| 27 | 7C000 | C clutch (direct) piston outer seal |
| 28 | 7P182 | CDF clutch cylinder |
| 29 | 7D063 | Sun gear No. 3 |
| 30 | 7D006 | Planetary carrier No. 3 |
| 31 | 7B421 | D clutch (low) snap ring |
| 32 | 7G486 | D clutch (low) pressure plate |
| 33 | 7E312 | D clutch (low) friction plates (quantity model dependent) |
| 34 | 7G474 | D clutch (low) steel plates (quantity model dependent) |
| 35 | 7P176 | D clutch (low) apply ring |
| 36 | 7B492 | D clutch (low) balance dam retainer |
| 37 | 7D343 | D clutch (low) balance dam |
| 38 | 7G445 | D clutch (low) balance dam outer seal |
| 39 | 7F234 | D clutch (low) balance dam inner seal |
| 40 | 7D405 | D clutch (low) piston return spring |
| 41 | 7D402 | D clutch (low) piston |
| 42 | 7G445 | D clutch (low) piston outer seal |
| 43 | 7G444 | D clutch (low) piston inner seal |
| 44 | 7P200 | F clutch (high) keeper snap ring |
| 45 | 7H318 | F clutch (high) snap ring keeper |
| 46 | 7P174 | F clutch (high) snap ring |
| 47 | 7A450 | F clutch (high) pressure plate |
| 48 | 7E313 | F clutch (high) friction plates (quantity model dependent) |
| 49 | 7E316 | F clutch (high) steel plates (quantity model dependent) |
| 50 | 7P175 | F clutch (high) apply ring |
| 51 | 7P172 | F clutch (high) balance dam retainer |
| 52 | 7P171 | F clutch (high) balance dam |
| 53 | 7A590 | F clutch (high) balance dam outer seal |
| 54 | 7C295 | F clutch (high) piston return spring |
| 55 | 7R247 | F clutch (high) piston |
| 56 | 7A590-B-B | F clutch (high) piston and balance dam seals (2 required) |
| 57 | 7A590-A-A | F clutch (high) piston seal |
