Main Control Valve Body: Notes
WARNING: This page is about a different variant/trim than selected.

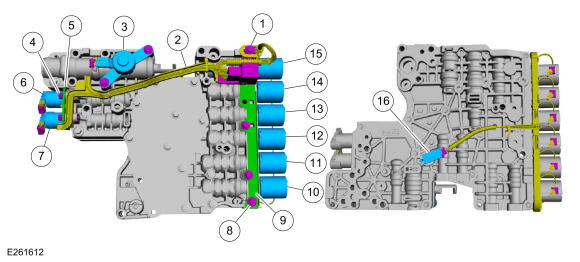

| Item | Description |
|---|---|
| 1 | Internal wiring harness retaining bolt |
| 2 | Internal wiring harness |
| 3 | Park lock pawl solenoid |
| 4 | Solenoid retaining plate bolts |
| 5 | Solenoid retaining plate |
| 6 | TCC solenoid |
| 7 | LPC solenoid |
| 8 | Shift solenoid retaining plate bolts |
| 9 | Shift solenoid retaining plate |
| 10 | SSD |
| 11 | SSE |
| 12 | SSB |
| 13 | SSC |
| 14 | SSF |
| 15 | SSA |
| 16 | TFT |

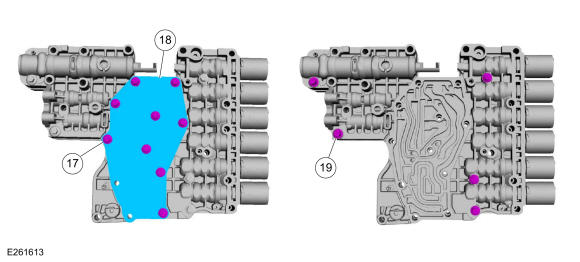

| 17 | Valve channel plate bolts |
| 18 | Valve channel plate |
| 19 | Lower-to-upper valve body bolts |

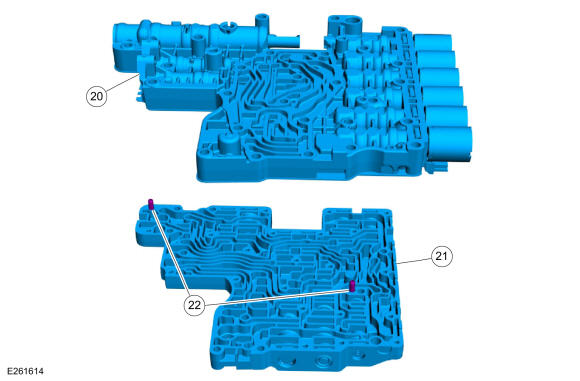

| 20 | Lower valve body |
| 21 | Upper valve body |
| 22 | Valve body dowel pins |
