Lower Valve Body
WARNING: This page is about a different variant/trim than selected.

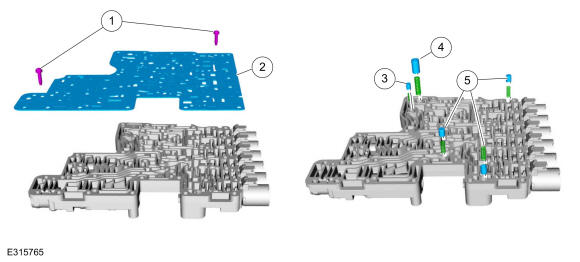

| 1 | Valve body separator plate bolts |
|---|---|
| 2 | Valve body separator plate |
| 3 | TCC damper |
| 4 | LPC damper assembly |
| 5 | Check valve assemblies |

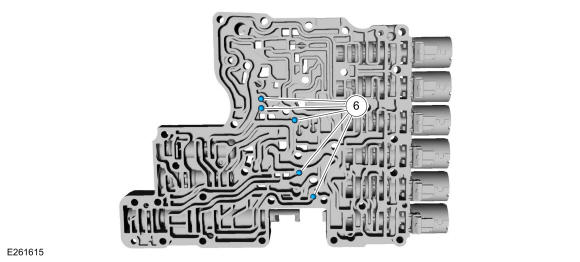

| 6 | Check balls (quantity 5) |

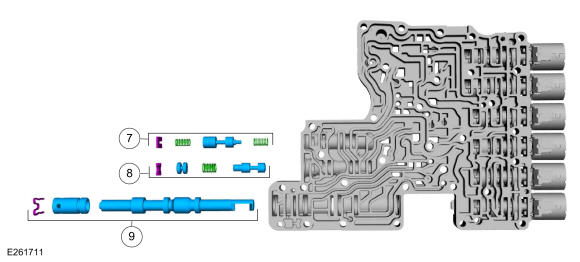

| 7 | LPC anti-backflow valve assembly |
| 8 | TCC priority valve assembly |
| 9 | Park lock pawl valve |

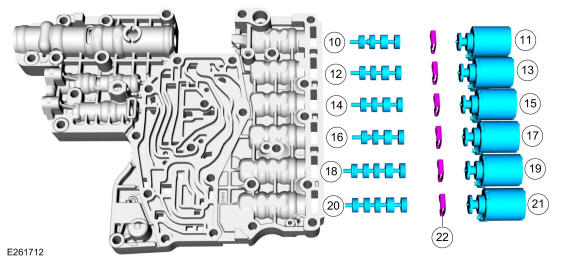

| 10 | A clutch control valve |
| 11 | SSA |
| 12 | F clutch control valve |
| 13 | SSF |
| 14 | C clutch control valve |
| 15 | SSC |
| 16 | B clutch control valve |
| 17 | SSB |
| 18 | E clutch control valve |
| 19 | SSE |
| 20 | D clutch control valve |
| 21 | SSD |
| 22 | Shift solenoid retainers |
