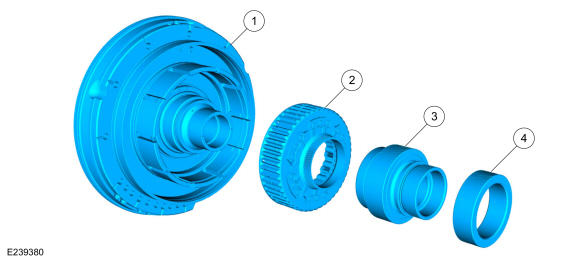

One-Way Clutch (OWC) Exploded View

WARNING: This page is about a different variant/trim than selected.
GFD514042Courtesy of FORD MOTOR COMPANY
Item  Description
1 Front support assembly
2 One-Way Clutch (OWC)
3 Sun gear No. 1
4 Sun gear No. 2
