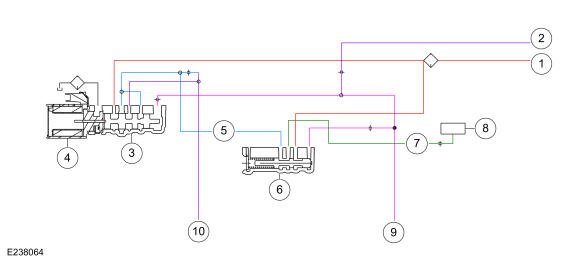

F Clutch Hydraulic Circuits
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Line pressure |
| 2 |
Pump output |
| 3 |
F clutch control valve |
| 4 |
SSF |
| 5 |
Control pressure to latch valve |
| 6 |
F clutch latch valve |
| 7 |
Apply pressure to mechanical F clutch |
| 8 |
Mechanical F clutch |
| 9 |
Elevated exhaust pressure |
| 10 |
Clutch exhaust |
