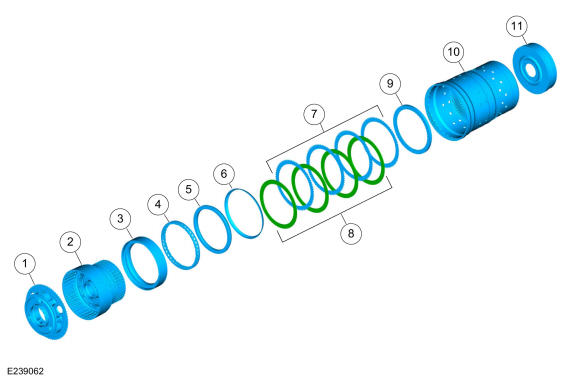

F Clutch Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Planetary carrier No. 1 |
| 2 | CDF clutch cylinder |
| 3 | F clutch piston |
| 4 | F clutch piston return spring |
| 5 | F clutch balance dam |
| 6 | F clutch apply ring |
| 7 | F clutch friction plates |
| 8 | F clutch steel plates |
| 9 | F clutch pressure plate |
| 10 | Cylinder (clutch and planetary container) |
| 11 | Ring gear No. 4 |
