E Clutch: Overview
WARNING: This page is about a different variant/trim than selected.

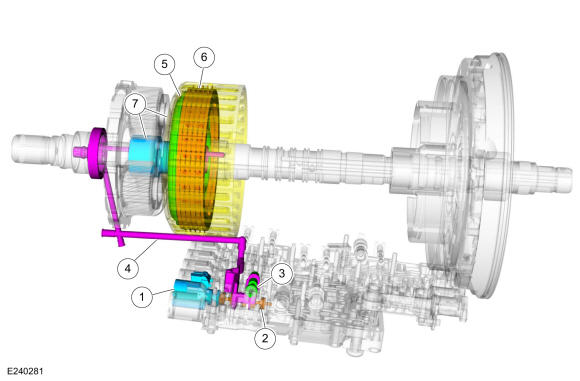

| Item | Description |
|---|---|
| 1 | SSE |
| 2 | E clutch control valve |
| 3 | Clutch gain control valve |
| 4 | E clutch apply circuit |
| 5 | E clutch piston |
| 6 | E clutch assembly |
| 7 | Shell and sun gear No. 4 |
Ring gear No. 3 is mechanically connected to sun gear No. 4 and both are connected to the E clutch. When the E clutch applies, torque from the input shaft is transferred to ring gear No. 3 and sun gear No. 4.
