D Clutch: Overview
WARNING: This page is about a different variant/trim than selected.

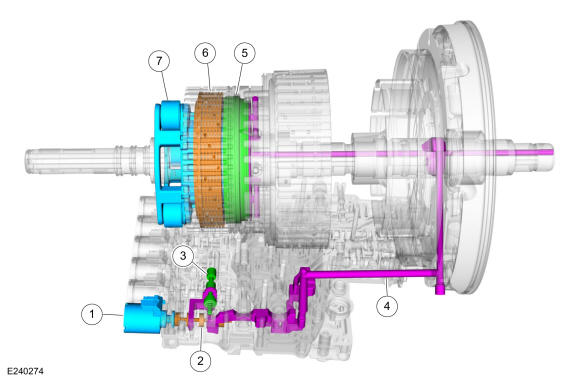

| Item | Description |
|---|---|
| 1 | SSD |
| 2 | D clutch control valve |
| 3 | Clutch gain control valve |
| 4 | D clutch apply circuit |
| 5 | D clutch piston |
| 6 | D clutch assembly |
| 7 | Planetary carrier No. 3 |
Planetary carrier No. 3 is located in the CDF clutch and planetary carrier assembly. Planetary carrier No. 3 is connected to the D clutch. When the D clutch applies, the planetary carrier No. 3 may be connected to ring gear No. 2.
