C Clutch: Overview
WARNING: This page is about a different variant/trim than selected.

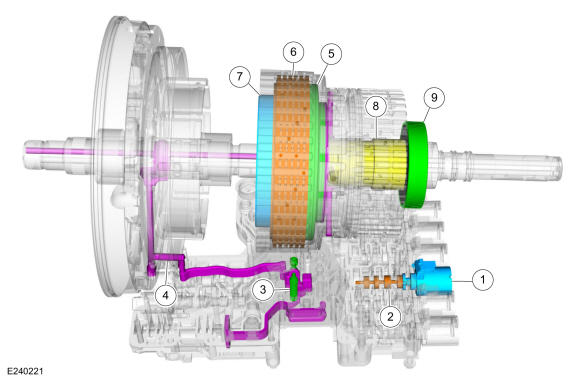

| Item | Description |
|---|---|
| 1 | SSC |
| 2 | C clutch control valve |
| 3 | C clutch latch valve |
| 4 | C clutch apply circuit |
| 5 | C clutch piston |
| 6 | C clutch assembly |
| 7 | Ring gear No. 2 |
| 8 | Shaft (sun gear No. 3) |
| 9 | Sun gear No. 3 |
Ring gear No. 2 is mechanically connected to sun gear No. 3 and is also connected to the C clutch. When the C clutch applies, torque from ring gear No. 2 may be applied the planetary carrier No. 3.
