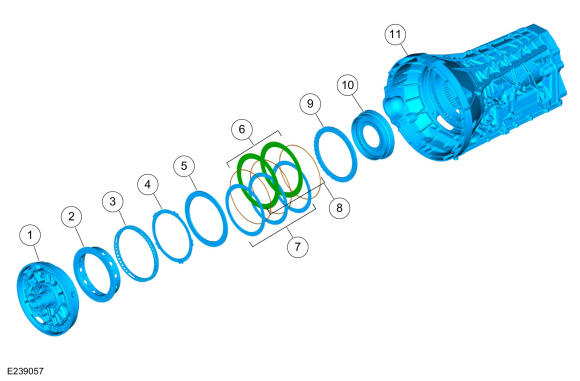

A Clutch Exploded View
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Front support assembly |
| 2 |
A clutch piston |
| 3 |
A clutch piston return spring |
| 4 |
A clutch wave spring |
| 5 |
A clutch apply plate |
| 6 |
A clutch steel plates |
| 7 |
A clutch friction plates |
| 8 |
A clutch separating springs |
| 9 |
A clutch pressure plate |
| 10 |
Ring gear No. 1 |
| 11 |
Transmission case |
