Fuel Pump and Sender Unit: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Take extra care not to damage the fuel tank level sensor and float arm.

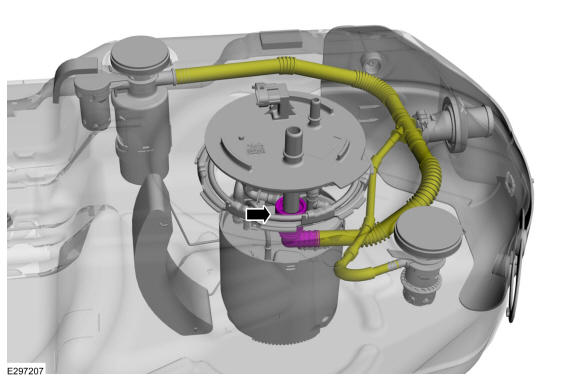

Reconnect the vapor line. Refer to: QUICK RELEASE COUPLING - 2.3L .

Courtesy of FORD MOTOR COMPANY

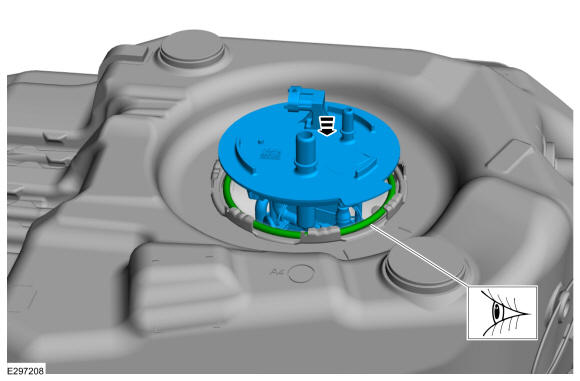

NOTE: Use new O-Ring Seal.

NOTE: Make sure that the seal is correctly located.

Courtesy of FORD MOTOR COMPANY

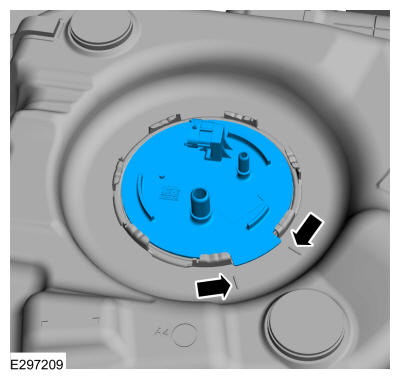

NOTE: Make sure that the location marks are aligned.

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
