Fuel Lines: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation steps.

Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Release the fuel system pressure. Refer to: Fuel System Pressure Release .

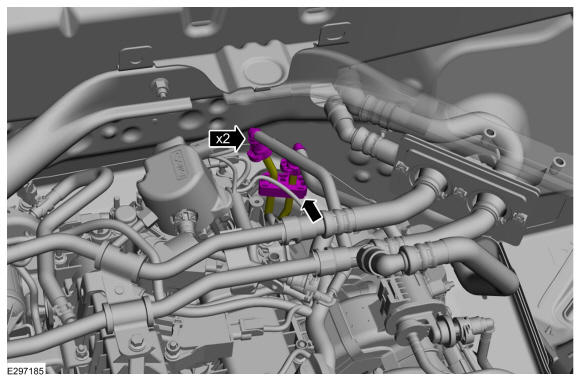

Remove the quick release couplings and detach the retainer clip. Refer to: QUICK RELEASE COUPLING - 2.3L .

Courtesy of FORD MOTOR COMPANY
- Remove the nuts and bolts.
  Torque: 55 lb.in (6.2 Nm)
- Remove the retainer and air deflector.
Courtesy of FORD MOTOR COMPANY
Remove the retainer clips and disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the quick release couplings and detach the retainer clips. Refer to: QUICK RELEASE COUPLING - 2.3L .

Courtesy of FORD MOTOR COMPANY
