E Clutch And Input Shaft Assembly
WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.

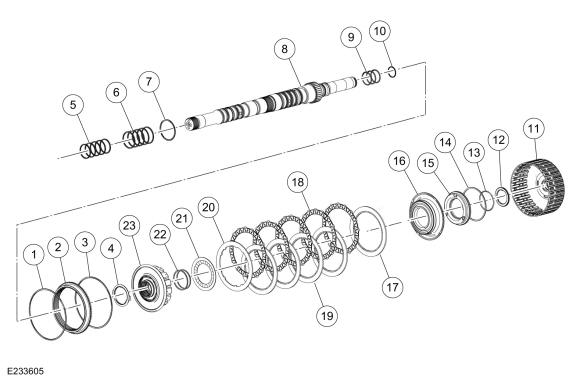

| Item | Part Number | Description |
|---|---|---|
| 1 | 7H361 | Ring gear No. 3 outer snap ring |
| 2 | 7H053 | Ring gear No. 3 |
| 3 | 7H361 | Ring gear No. 3 inner snap ring |
| 4 | 7F373 | Thrust bearing (T6) |
| 5 | 7G091-A-A | Input shaft front Teflon® seals (5 required) |
| 6 | 7G091-B-B | Input shaft-to-sun gear No 3 shaft Teflon® seals (5 required) |
| 7 | 7J410 | Input shaft snap ring |
| 8 | 7015 | Input shaft |
| 9 | 7G242 | Input shaft D-ring seals (3 required) |
| 10 | 7G091 | Input shaft Teflon® seal |
| 11 | 7D062 | Shell and sun gear No. 4 |
| 12 | 7G008 | Thrust bearing (T7) |
| 13 | 7H365 | E clutch (forward) balance dam retainer |
| 14 | 7F227 | E clutch (forward) balance dam outer seal |
| 15 | 7P169 | E clutch (forward) balance dam |
| 16 | 7A262 | E clutch (forward) piston |
| 17 | 7B066 | E clutch (forward) apply plate (2.9-3.0 mm) |
| 18 | 7H091 | E clutch (forward) friction plates (quantity model dependent) |
| 19 | 7H089 | E clutch (forward) steel plates (quantity model dependent) |
| 20 | 7B066 | E clutch (forward) pressure plate (select fit) |
| 21 | 7B070 | E clutch (forward) piston return spring |
| 22 | 7G242 | E clutch (forward) piston and balance dam inner seals (2 required) |
| 23 | 7P211 | E clutch (forward) hub |
