Main Control Valve Body: Notes
WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.

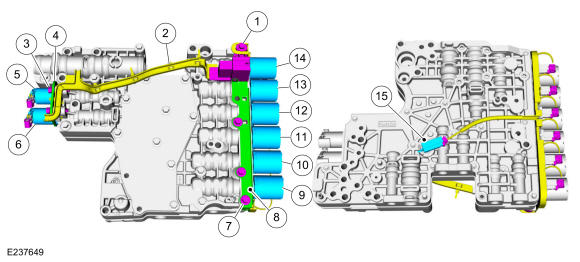

| Item | Description |
|---|---|
| 1 | Internal wiring harness retaining bolt |
| 2 | Internal wiring harness |
| 3 | Solenoid retaining plate bolts |
| 4 | Solenoid retaining plate |
| 5 | TCC solenoid |
| 6 | LPC solenoid |
| 7 | Shift solenoid retaining plate bolts |
| 8 | Shift solenoid retaining plate |
| 9 | SSD |
| 10 | SSE |
| 11 | SSB |
| 12 | SSC |
| 13 | SSF |
| 14 | SSA |
| 15 | TFT |

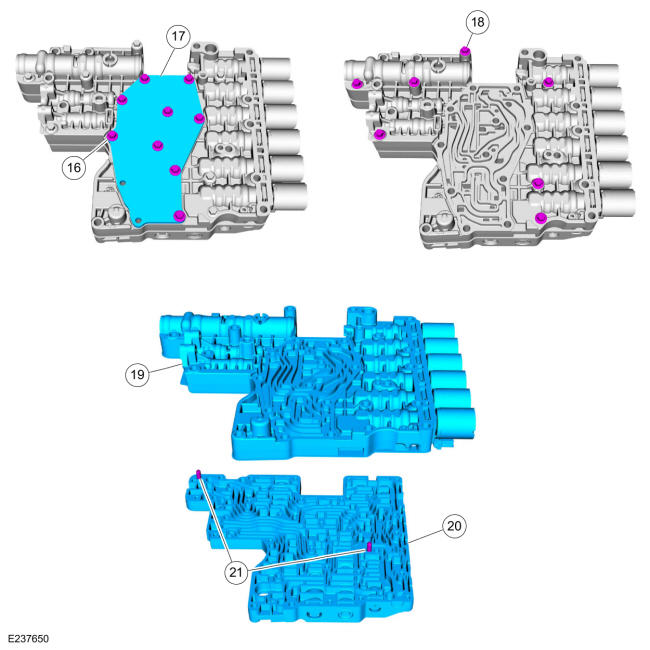

| 16 | Valve channel plate bolts |
| 17 | Valve channel plate |
| 18 | Lower-to-upper valve body bolts |
| 19 | Lower valve body |
| 20 | Upper valve body |
| 21 | Valve body dowel pins |
