Lower Valve Body
WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.
| 1 | Valve body separator plate bolts |
|---|---|
| 2 | Valve body separator plate |
| 3 | TCC damper |
| 4 | LPC damper assembly |
| 5 | Check valve assemblies |

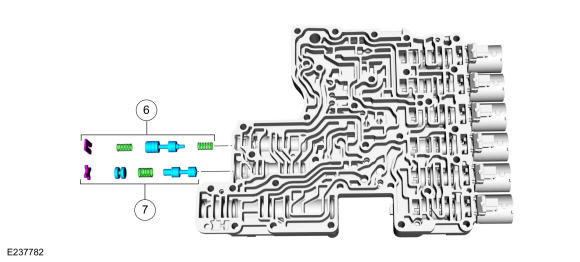

| 6 | LPC anti-backflow valve assembly |
| 7 | TCC priority valve assembly |

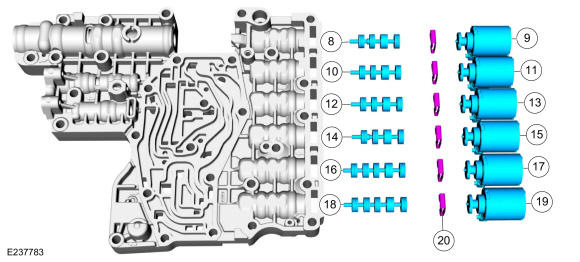

| 8 | A clutch control valve |
| 9 | SSA |
| 10 | F clutch control valve |
| 11 | SSF |
| 12 | C clutch control valve |
| 13 | SSC |
| 14 | B clutch control valve |
| 15 | SSB |
| 16 | E clutch control valve |
| 17 | SSE |
| 18 | D clutch control valve |
| 19 | SSD |
| 20 | Shift solenoid retainers |
