F Clutch: Overview
WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.

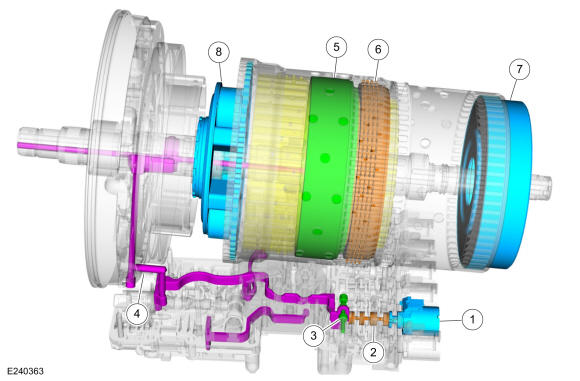

| Item | Description |
|---|---|
| 1 | SSF |
| 2 | F clutch control valve |
| 3 | F clutch latch valve |
| 4 | F clutch apply circuit |
| 5 | F clutch piston |
| 6 | F clutch assembly |
| 7 | Ring gear No. 4 |
| 8 | Planetary carrier No. 1 |
Ring gear No. 4 is mechanically connected to planetary carrier No. 1 and connected to the F clutch. When the F clutch applies, the ring gear No. 4 may be connected to ring gear No. 2 through the C clutch. Ring gear No. 4 may also connect to planetary carrier No. 3 through the D clutch.
