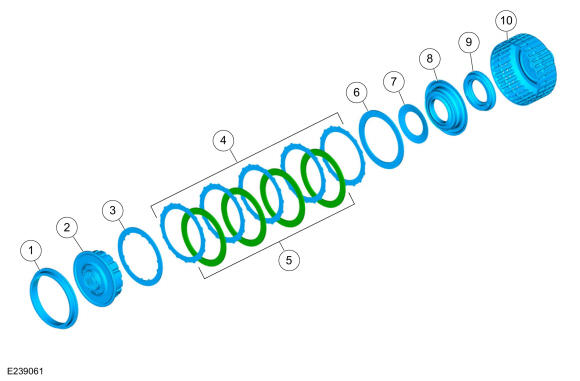

E Clutch Exploded View
WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Ring gear No. 3 |
| 2 | E clutch hub |
| 3 | E clutch pressure plate (select fit) |
| 4 | E clutch friction plates (quantity model dependent) |
| 5 | E clutch steel plates (quantity model dependent) |
| 6 | E clutch apply plate (2.9-3.0 mm) |
| 7 | E clutch piston return spring |
| 8 | E clutch piston |
| 9 | E clutch balance dam |
| 10 | Shell and sun gear No. 4 |
