Transmission Fluid Cooler: Removal
WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the bolts and the heat shield.
Torque: 89 lb.in (10 Nm)
-
NOTE: Be prepared to collect escaping fluid.

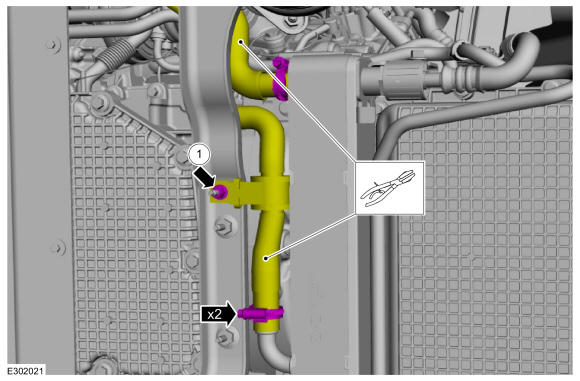

Clamp the coolant hoses, remove the coolant hose bracket nut, loosen the hose clamps and disconnect the coolant hoses from the transmission fluid cooler.
- Torque: 89 lb.in (10 Nm)

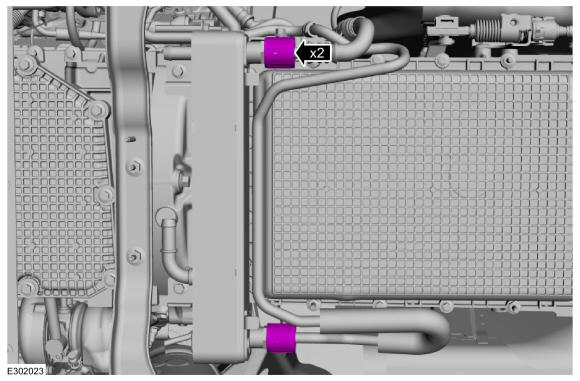

- Remove the transmission fluid cooler tube secondary latches.
-
NOTE: Be prepared to collect escaping fluid.

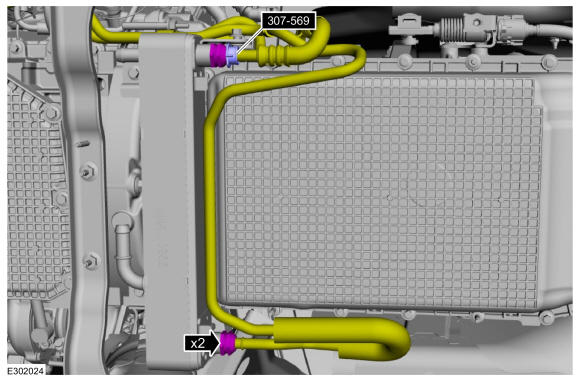

Using the special tool, disconnect the transmission fluid cooler tubes from the transmission fluid cooler. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

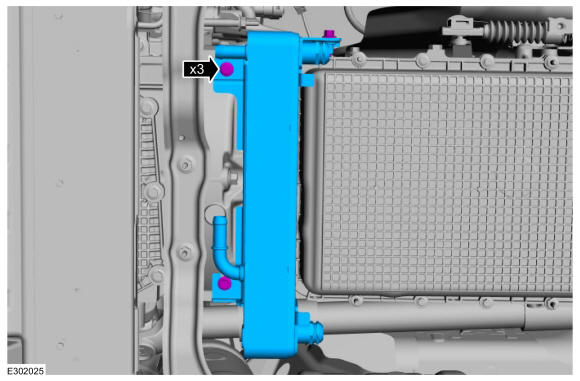

- Remove the bolts and the transmission fluid cooler.
Torque: 177 lb.in (20 Nm)
