Transmission Fluid Cooler Tubes: Removal

WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the bolts and the heat shield.
    GFD514741Courtesy of FORD MOTOR COMPANY
    1. Remove the cooler tube bracket bolt.

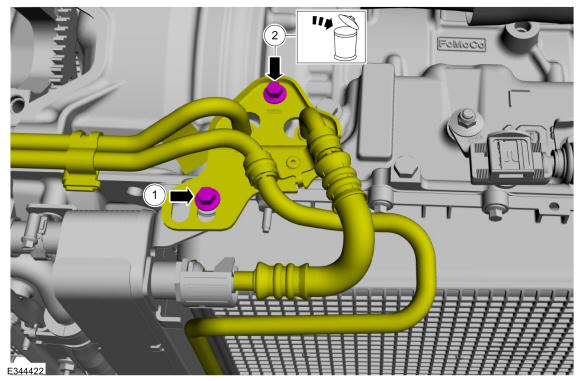

    2. Remove and discard the bolt and disconnect the transmission fluid cooler tubes.
    GFD514746Courtesy of FORD MOTOR COMPANY
  4. Remove the transmission fluid cooler tube secondary latches.
    GFD515112Courtesy of FORD MOTOR COMPANY

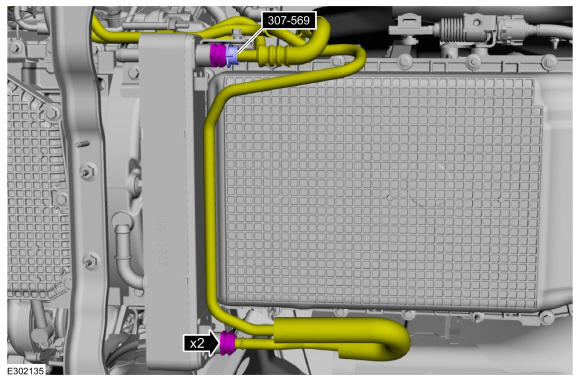

  5. Using the special tool, disconnect the transmission fluid cooler tubes from the transmission fluid cooler. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
    GFD515113Courtesy of FORD MOTOR COMPANY
  6. Remove the fasteners and the underbody shield.
    GFD515094Courtesy of FORD MOTOR COMPANY
  7. Completely loosen the transmission fluid cooler tube fittings.
    GFD515114Courtesy of FORD MOTOR COMPANY
  8. Remove the nut and the rear transmission fluid cooler tube assembly.
    GFD515115Courtesy of FORD MOTOR COMPANY
  9. Inspect the transmission to be sure the transmission fluid tube seals and backing rings were removed with the transmission fluid tubes and are not stuck in the transmission. If the transmission fluid tube seals or backing rings are stuck in the transmission, remove the seals and backing rings.
    GFD514761Courtesy of FORD MOTOR COMPANY
  10. Remove the fasteners and the underbody shield.
    GFD515116Courtesy of FORD MOTOR COMPANY

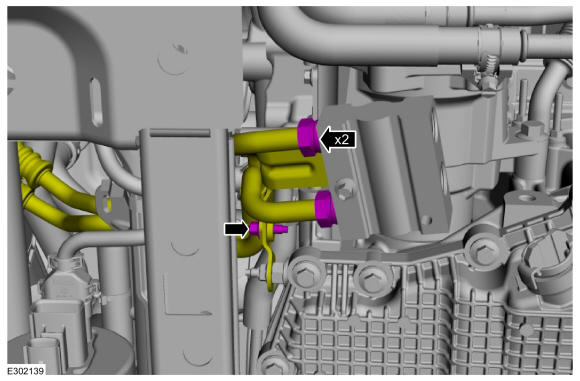

  11. Completely loosen the transmission fluid cooler tube fittings and remove the bracket bolt.
    GFD515117Courtesy of FORD MOTOR COMPANY
  12. Remove the transmission fluid cooler tube secondary latches.
    GFD515118Courtesy of FORD MOTOR COMPANY

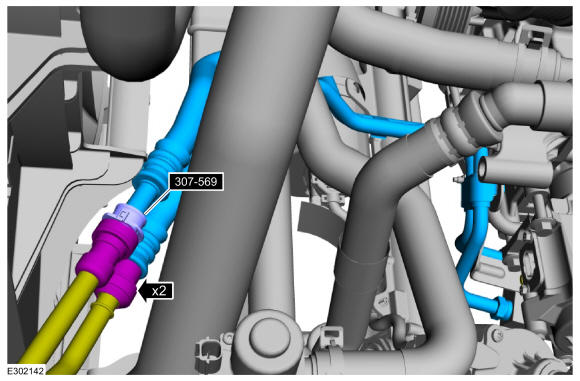

  13. Using the special tool, disconnect the transmission fluid cooler tubes and remove the tubes.
    GFD515119Courtesy of FORD MOTOR COMPANY
  14. Remove the front bumper cover. Refer to: Front Bumper Cover .
  15. Remove the pushpins and the upper radiator air deflector.
    GFD515098Courtesy of FORD MOTOR COMPANY
  16. Remove the transmission fluid auxiliary cooler bolts.
    GFD515099Courtesy of FORD MOTOR COMPANY
  17. Remove the headlamp assemblies. Refer to: Headlamp Assembly .
  18. Remove the bolts and the reinforcement panel.
    GFD515100Courtesy of FORD MOTOR COMPANY
  19. Remove the bolts and the front bumper.
    GFD515101Courtesy of FORD MOTOR COMPANY
  20. Disconnect the impact severity sensors, the hood ajar switch, the ambient air temperature sensor and the horn electrical connectors. Detach the wiring harness retainers.
    GFD515102Courtesy of FORD MOTOR COMPANY

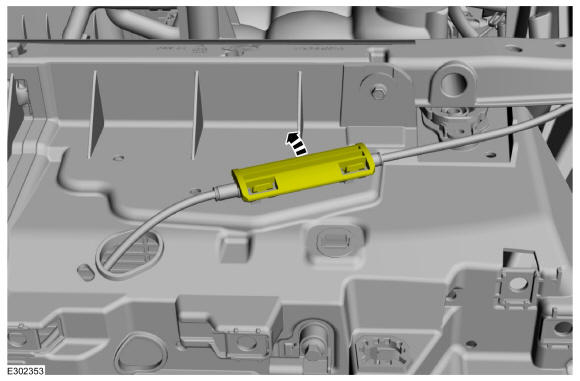

  21. Open the hood latch cable connector cover.
    GFD515103Courtesy of FORD MOTOR COMPANY
  22. Disconnect the hood latch cable.
    GFD515104Courtesy of FORD MOTOR COMPANY
  23. Remove the bolts and the front module carrier.
    GFD515105Courtesy of FORD MOTOR COMPANY
  24. Release the clamps and disconnect the transmission fluid cooler tubes from the transmission fluid auxiliary cooler.
    GFD515120Courtesy of FORD MOTOR COMPANY
  25. Remove the bolts and the transmission fluid cooler front tube assembly.
GFD515121Courtesy of FORD MOTOR COMPANY
