Transmission Fluid Cooler Tubes: Installation

WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.

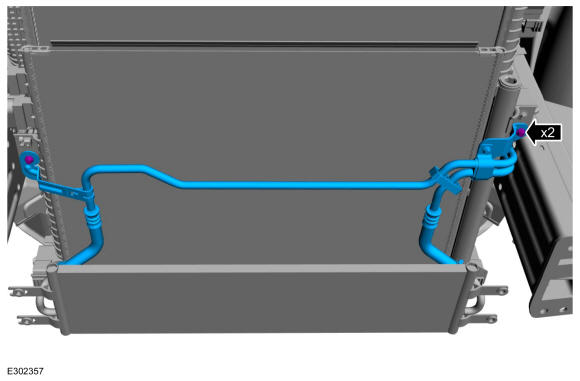

  1. Install the transmission fluid cooler front tube assembly and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD515121Courtesy of FORD MOTOR COMPANY

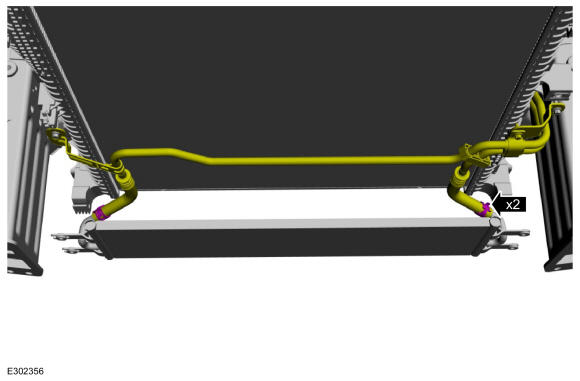

  2. Connect the transmission fluid cooler tubes from the transmission fluid auxiliary cooler and position the clamps.
    GFD515120Courtesy of FORD MOTOR COMPANY

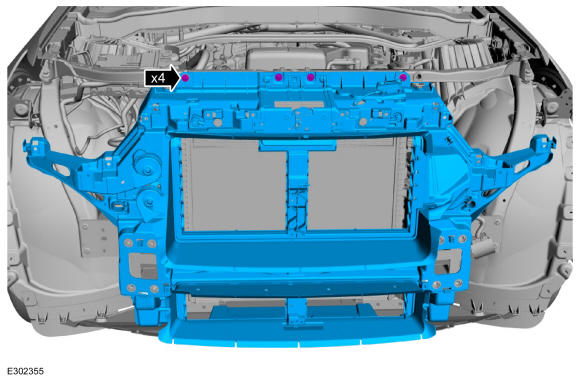

  3. Install the front module carrier and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD515105Courtesy of FORD MOTOR COMPANY

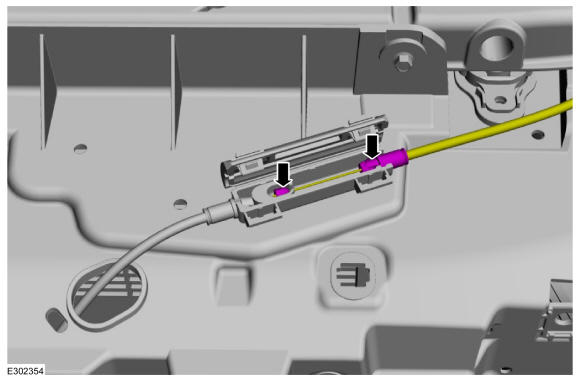

  4. Connect the hood latch cable.
    GFD515104Courtesy of FORD MOTOR COMPANY

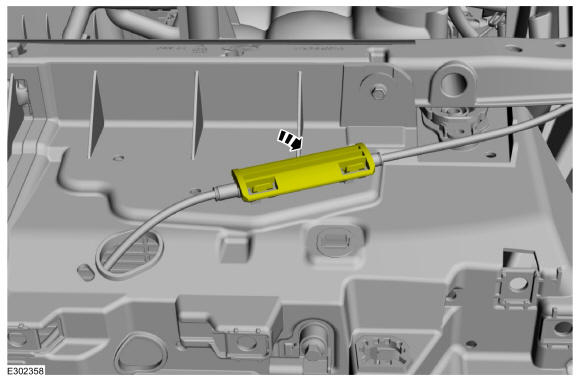

  5. Close the hood latch cable connector cover.
    GFD515122Courtesy of FORD MOTOR COMPANY

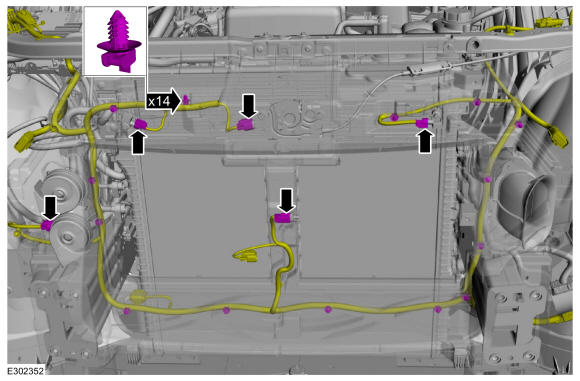

  6. Attach the wiring harness retainers. Connect the impact severity sensors, the hood ajar switch, the ambient air temperature sensor and the horn electrical connectors.
    GFD515102Courtesy of FORD MOTOR COMPANY

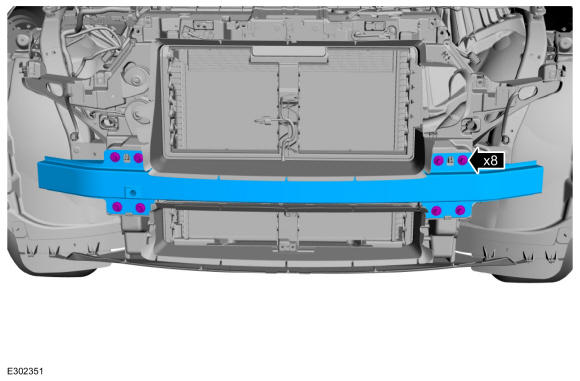

  7. Install the front bumper and the bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD515101Courtesy of FORD MOTOR COMPANY

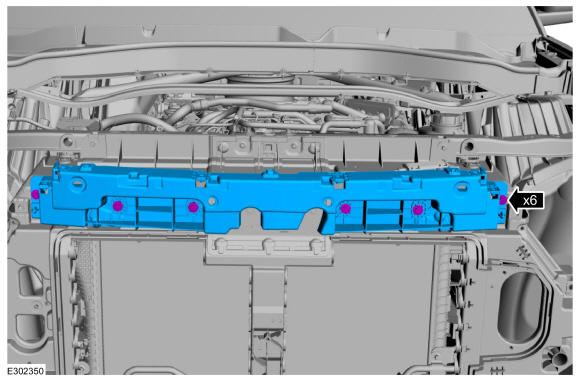

  8. Install the reinforcement panel and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD515100Courtesy of FORD MOTOR COMPANY
  9. Install the headlamp assemblies. Refer to: Headlamp Assembly .

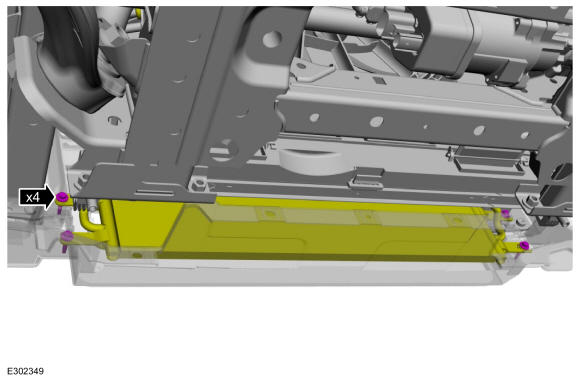

  10. Install the transmission fluid auxiliary cooler bolts.

    Torque: 89 lb.in (10 Nm)

    GFD515099Courtesy of FORD MOTOR COMPANY

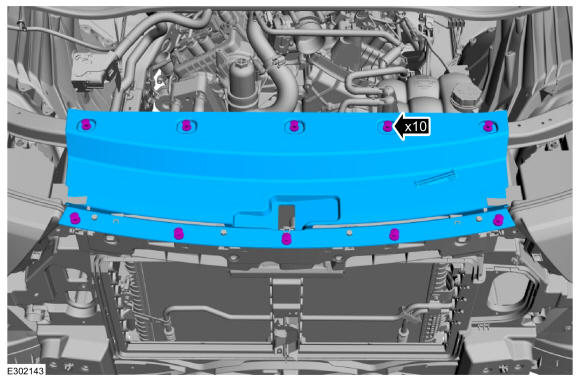

  11. Install the upper radiator air deflector and the pushpins.
    GFD515098Courtesy of FORD MOTOR COMPANY
  12. Install the front bumper cover. Refer to: Front Bumper Cover .

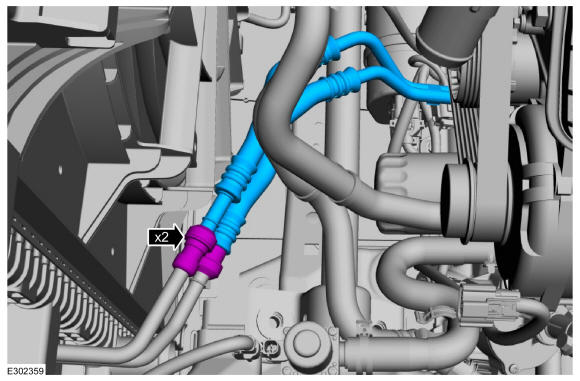

  13. Position and connect the transmission fluid cooler intermediate tube assembly.
    GFD515123Courtesy of FORD MOTOR COMPANY

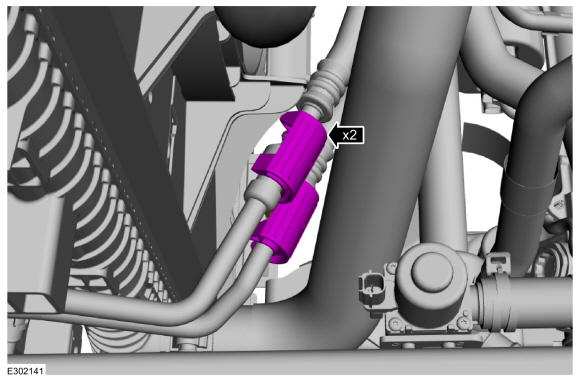

  14. Install the transmission fluid cooler tube secondary latches.
    GFD515118Courtesy of FORD MOTOR COMPANY

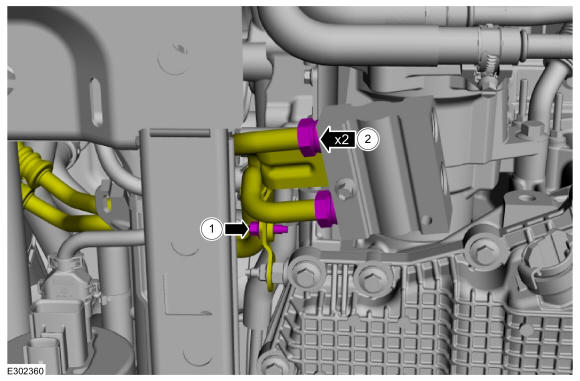

  15. Install the bracket bolt and tighten the transmission fluid cooler tube fittings.

    1. Torque: 89 lb.in (10 Nm)
    2. Torque: 22 lb.ft (30 Nm)

    GFD515124Courtesy of FORD MOTOR COMPANY

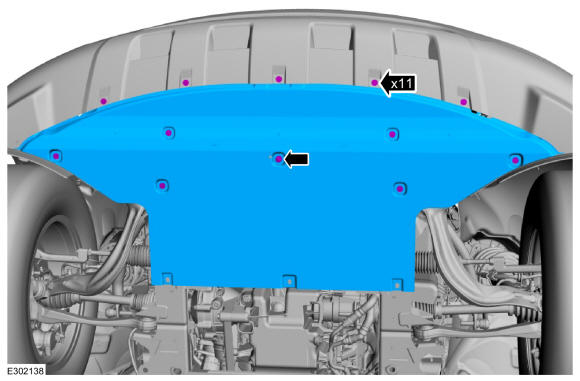

  16. Install the underbody shield and the fasteners.
    GFD515116Courtesy of FORD MOTOR COMPANY

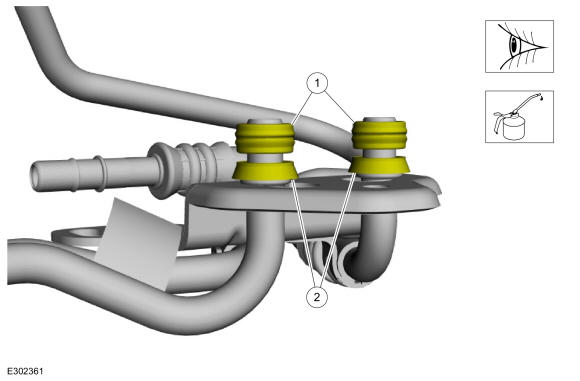

  17. Inspect and lubricate the band seals and backing rings. Install new band seals and backing rings if necessary.

    1. Seal (7D285).
    2. Backing ring (7J324).

    GFD514762Courtesy of FORD MOTOR COMPANY

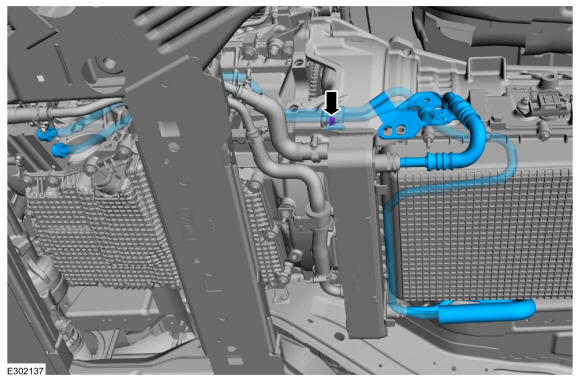

  18. Install the rear transmission fluid cooler tube assembly and the nut.

    Torque: 89 lb.in (10 Nm)

    GFD515115Courtesy of FORD MOTOR COMPANY

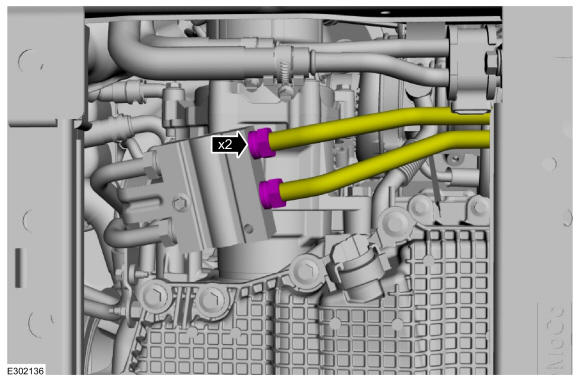

  19. Tighten the transmission fluid cooler tube fittings.

    Torque: 89 lb.in (10 Nm)

    GFD515114Courtesy of FORD MOTOR COMPANY

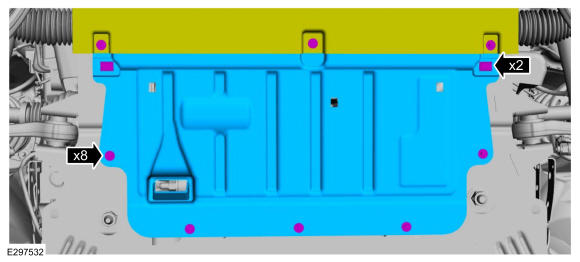

  20. Install the underbody shield and the fasteners.
    GFD515094Courtesy of FORD MOTOR COMPANY

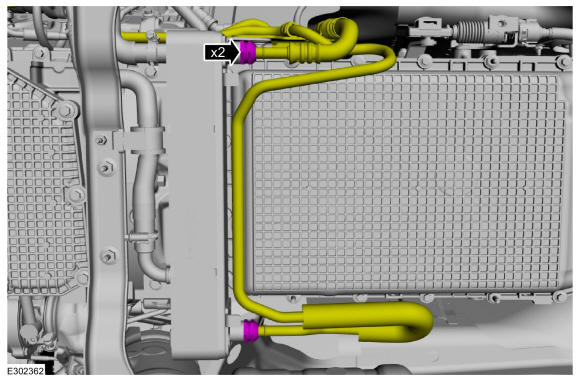

  21. Connect the transmission fluid cooler tubes to the transmission fluid cooler.
    GFD515125Courtesy of FORD MOTOR COMPANY

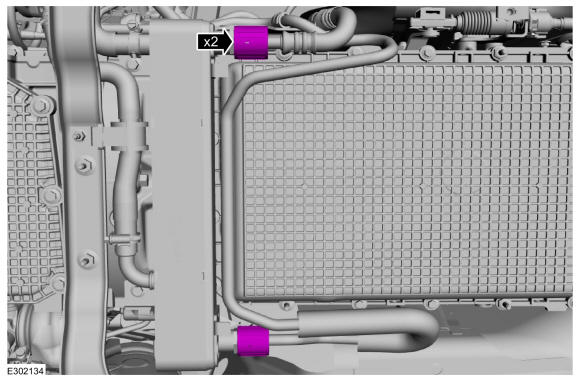

  22. Install the transmission fluid cooler tube secondary latches.
    GFD515112Courtesy of FORD MOTOR COMPANY

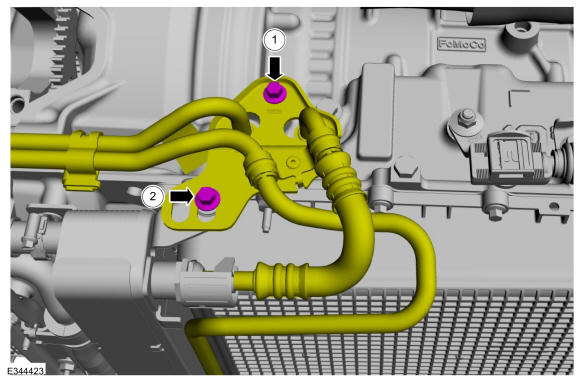

    1. Connect the transmission fluid cooler tubes to the transmission and install a new bolt.

      Torque: 177 lb.in (20 Nm)

    2. Install the cooler tube bracket bolt.

      Torque: 177 lb.in (20 Nm)

    GFD514763Courtesy of FORD MOTOR COMPANY

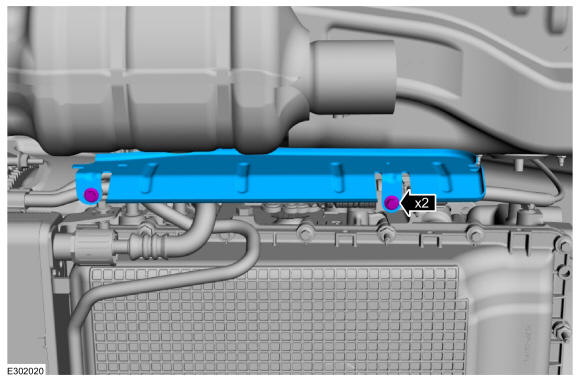

  24. Install the heat shield and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD514741Courtesy of FORD MOTOR COMPANY
  25. Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
