Transmission Fluid Auxiliary Cooler: Removal

WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front bumper cover. Refer to: Front Bumper Cover .
Remove the pushpins and the upper radiator air deflector.

Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid auxiliary cooler bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the headlamp assemblies. Refer to: Headlamp Assembly .
Remove the bolts and the reinforcement panel.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the front bumper.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Disconnect the impact severity sensors, the hood ajar switch, the ambient air temperature sensor and the horn electrical connectors. Detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
Open the hood latch cable connector cover.

Courtesy of FORD MOTOR COMPANY
Disconnect the hood latch cable.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the front module carrier.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

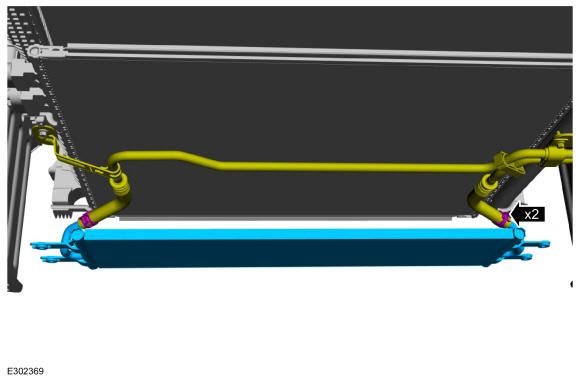

Release the clamps and remove the transmission fluid auxiliary cooler.
